Downdraft Tables and Booths for sanding and grinding

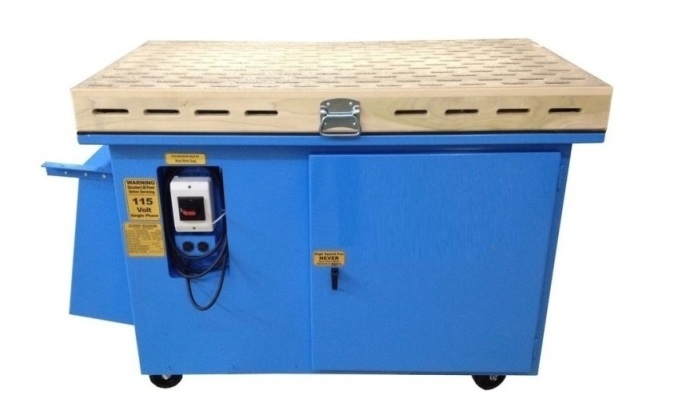

Model 2800

We have a wide variety of Downdraft Booths and Tables for grinding, sanding and fine finishing.

Tube Filtration

Model 2800
Model 2872

Tube filters are ideal for applications involving finishes and fine sanding dust. Life expectancy of the tube filters is between 1-2 years with average use. The dust is captured inside the tube and falls from the filters into the dust drawer below, when the machine is turned off.

A soft bristled brush (furnished with all tube filtration models) is used to run inside the filters, offering a deep cleaning procedure for the filters if needed. The tube filters clean at a 99% capture rate at 1 micron, creating a much superior filtration than any pleated filters.

Ideal for small shops and labs. With complete access to the work surface from all 4 sides and built in power supplies for 110V hand tools. Filters are usually good for up to two years and can be reordered by simply giving us a call. All models are available in 110V or 230/460 three-phase. Available up to 48"x96”. Made entirely in the USA.

Specifications:

DDSpecs

ADDITIONAL OPTIONS

3600
Model 2896
  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade

Cartridge Filtration

3648SD (Sit Down)

3648sit
3648SD (Sit Down)

This unit is ideal for small shops, or where the operator would prefer to sit down for all day operation. Complete with “Jet Pulse” push-button cleaning, the 3648SD comes with 80/20 cartridge filter that cleans at 99.95% capture rate at .5 micron efficiency.

This model is portable and comes standard with casters, rubber coated top, and 3-sided 20” safety shields.

3444B and 3444B Super

3444B
3444B

This unit is great for small workshops and job shops. It and can be used for plastics, woods and finishing materials. The 3444B comes with 80/20 cartridge filters which cleanwith a 99.95% capture rate at .5 micron.

This Downdraft Table comes standard with casters, rubber coated top, and the “Pulse-Jet” push-button filter cleaning system. This model also comes with the options of a tilt out front edge and 7” working vise as add-ons.

3444bSUPER
3444B Super

This model is similar to the 3444B, but contains a larger motor/blower assembly. It also features our typical rails and tops found on our larger tables. There are no intake dust ports or vise due to these modifications. The 3444B Super comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron.

This model comes standard with casters, “pulse-jet” push button filter cleaning, and a rubber coated top. This model does provide the option of a tilt out front edge as an add-on.

Specifications:

CartridgeTableSpecs

9600B

9600B
9600B - 48"x96" table top and cartridge filtration. A variety of hoods, or back & sides shields, are available.
9600B with Cartridge
9600B with Cartridges

This model is ideal for larger jobs and is accommodating for two or three jobs going on at the same time on the same table. The 9600B is one of the larger tables in ourpush-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron, along with a magnetic starter and rubber coated top.*Please note that the starter box on this model is on the left side of the machine.

Additional Options:

  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Casters
  • Auto-timer
  • Muffler (reduces sound level 10-12 dbs.)
  • 100% Spunbond Polyester Filters
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE Plastic Tabletop
  • Larger Motor/Fan Upgrade

Custom Hoods

Hood
3444B Super with Hood
