Portable Welding Booths and Arm Units

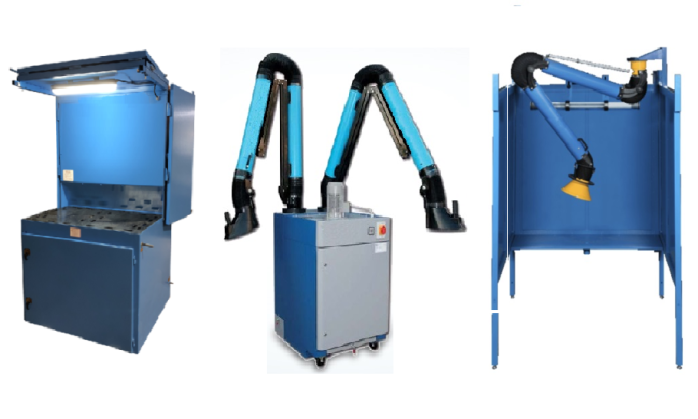

CAD Lineup

Welding Exhaust Solutions for Heavy Production

CAD made in the USA Welding Fume Collectors have been a go-to solution for aerospace, car manufacturers, community colleges and fabrication shops for decades. The bulletproof designs features TEFC Motors as well as a .5 micron @ 99.97% efficiency spunbond cartridge filter. Constructed from 16 gauge steel and made right here in the USA. Parts and support are always just a phone call away.

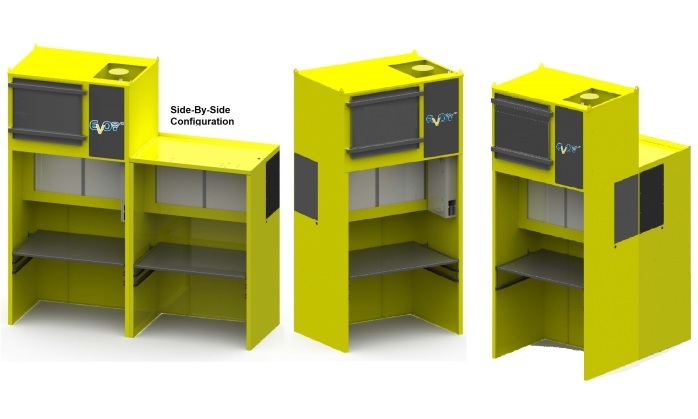

CAD Inegrated Welding Booth

CADWeldBooth

The Model 3044 Weld Station is designed to accommodate a variety of metal grinding, welding, and light plasma applications. The 3044WS comes standard with two - 13” x 27” 100% polyester Spun-bond flame retardant filters, which clean with 99.95% efficiency at 0.5 micron. Two trays measuring at 17” x 24” x 1” (each) containing spark arresting Quartz 3/16” stone is placed over the main filters helping to protect them from exposure to hot sparks and extends the life of the filters. This table is also equipped with Push-button cleaning, and expandable side shields and hood. Each side shield has double folding sides (pictured above).

The table is 30” deep and 44” wide constructed of 11 & 16 gauge carbon steel, painted with industrial enamel blue. The 3044WS has a two piece table top made of 3/16” steel making the top very user friendly and the table great for smoke removal with minimal gas disturbance.

Integrated Booth Specifications:

  • Dimensions: 47"x38"x82” (HEPA adds 27"H)
  • Weight: 900 lbs
  • Power: 2HP
  • Fan Size: 16.5”
  • Airflow: 2850 cfm
  • Portability: Casters or stationary feet
  • Gauges: Magnahelic
  • Lighting: 24” LED Lightbar
  • Electricity: 110/1/60 or 230‐460/3/60

CAD Passive and Powered Welding Booths

RemoteBooth
Welding Booth with articulating arm

The CAD Passive Welding Booth ties into your existing dust collection system.

If there isn’t an existing central dust collection system we also offer a choice of 1.5HP or 3HP motor/fan if you are blowing non-harmful fumes outside. The CAD Passive Welding Booth is a popular choice for welding schools and community colleges.

Our No-Smoke Extraction Fans are a good option if you do not have an existing central dust collection system.

The No-Smake fan attaches to the articulating arm and exhausts fumes outdoors. This is usually an acceptable method of dispersing non-harmful fumes.

Weld BoothPowered
CAD Powered Welding Booth ties into a ducting system.

The CAD Powered Welding Booth is built right here in NC. Ideal for fabrication shops and welding schools where clean air and 100% capture of fugitive fumes is crucial.

This 110V stand-alone system can filter all weld fumes down to 99.97% efficient while returning clean, breathable air back into the workspace. Our highly efficient filter design allows the welding fume filtration to also serve as an air cleaning device. Standard filtration is .5 micron @ 99.97% efficient. For stainless steel welding we can add HEPA to eliminate hexavalent chromium fumes.

Featuring a 3-sided capture design, a full range of motion articulating arm and a powerd coat finish, The CAD Booths are built to withstand decades of heavy duty use. We can suppy and install our booths anywhere in the USA. We also have 7 day a week tech support.

Call us today at (800) 635 0298 to discuss your unique application.

Features:

  • 3-Stage Filtration Available
  • Choice of 1 phase or 3 phase fan/motor
  • Remote Control
  • Welding Fume Collection
  • Grinding Dust Collection
  • Dust Control
  • Hanging Fume Arm Option
  • LED Lights
  • Work bench table
  • Curtain and rod
Model Number External Dimension Inner Dimension
FWS-55 64" x 64" x 140" 60" x 60" x 90"
FWS-66 76" x 76" x 140" 72" x 72" x 90"
WWS-55 64" x 64" x 120" 60" x 60" x 90"
WWS-66 76" x 76" x 120" 72" x 72" x 90"

CAD Single Arm Welding Fume Extractor

PFC Fume Collector
CAD Single Arm Fume Collector

Featuring a drop-out chamber for sparks, the CAD cartridge extractor is designed for the extraction and filtering of welding fumes, gases, vapors and aerosols. The classical pocket filters for welding and dusts have always dealt with this problem! CAD Single Arm Welding Fume Extractor gives a competitive, simple and reliable response with the CAD Single Arm trolley-mounted unit with long-life polyester cartridges, washable and with manual compressed air cleaning. Operating principle and applications: the fumes are extracted by the extraction arm, they pass through a metal separator with chicane, pass along the cartridge filtering section and are expelled by the fan mounted in the upper part of the unit. CAD Single Arm is essentially designed to treat welding fumes and small amounts of dry dusts. Give us a call today to discuss your unique application so that we can customize a unit for you!

Features

  • Featuring two 6 inch diameter extraction arms.
  • High efficiency non-overloading backward inclined aluminum wheels used on most models
  • Easy to set up as it is shipped fully assembled except for the capture arm
  • Effective for the capture and control of smoke, dust and other contaminants
  • Manual motor starters supplied with most models
  • Powder paint finish
  • Powder Coated Aluminum arm is completely externally articulated
  • Robust construction
  • Low air to cloth ratio
  • Reverse pulse filter cleaning system on most models
  • 115 volt models equipped with a line cord and plug
  • Low operating noise level
  • Low velocity return air plenums are suitable
  • for after-filter retrofit if desired

CAD Dual Arm Welding Fume Extractor

Coral Jetclean DF2

The CAD Dual Arm portable fume and dust collection unit is a powerful, self-contained smoke, dust and fume collection system that is virtually plug-n-go, fully assembled and out-of-the-box ready to eliminate hazardous fumes and dust released during processes like welding, grinding, and batching and filling.

Featuring either single 1.5 or 3.0 horsepower or dual 3.0 horsepower articulated extraction arms for multiple source capture, incredible air volume up to 2100 CFM, TEFC motors and a high efficiency aluminum (non-sparking) backward inclined blower wheel, the CAD Dual Arm ruggedly designed and built to stand up and perform in the harshest environments. Industrial grade combination swivel and locking castors make the CAD Dual Arm easily maneuverable.

Two cartridge filters feature 160 square feet of 100% washable spun-bond polyester, 99% efficient to 1 micron. Reverse pulse jet filter cleaning ensures consistent optimum filtration and a permanent spark arresting pre-filter. An optional hepa final filter module which is 99.97% efficient with 3 microns is also available for sub micronic particles. These units are equipped with an onboard accumulator (compressed air reservoir) which simply requires the hook-up to readily available compressed air from the shop’s compressor for the filter blow-down process.

Specifications:

  • Featuring one 8 inch diameter arm or two 6 inch diameter extraction arms.
  • High efficiency non-overloading backward inclined aluminum wheels used on most models
  • Easy to set up as it is shipped fully assembled except for the capture arm
  • Effective for the capture and control of smoke, dust and other contaminants
  • Manual motor starters supplied with most models
  • Powder paint finish
  • Extraction arm is completely externally articulated
  • Robust construction
  • Low air to cloth ratio
  • Reverse pulse filter cleaning system on most models
  • 115 volt models equipped with a line cord and plug
  • Low operating noise level
  • Low velocity return air plenums are suitable for after-filter retrofit if desired

CAD Wall-Mount Welding Collector

Wall Mount Fume Collector (WFC-1000)
CAD Wall-Mount Welding Collector

The CAD Wall-Mount Welding Fume Collector is wall or pole-mount welding fume collector designed for applications where floor space is limited. The collector can be wall mounted while the articulating arm has full range of motion from side to side and up or down.

The CAD Wall-Mount Welding Fume Collector is the ideal solution for self-contained source capture of light to medium duty weld fumes and other airborne contaminants in the workplace. This portable, compact fume collector offers simple 110-volt plug-n-go convenience. The CAD Wall-Mount is designed using state-of-the art technology in source capture and is a powerful, low-maintenance solution for even tough weld fumes. The CAD Wall-Mount comes standard with articulated, extendable extraction arm, capable of full 360° rotation and can be easily positioned to remove smoke and particulate before it contaminates the operator’s breathing zone.
