Cabinet Dust Collection for Granite Shop

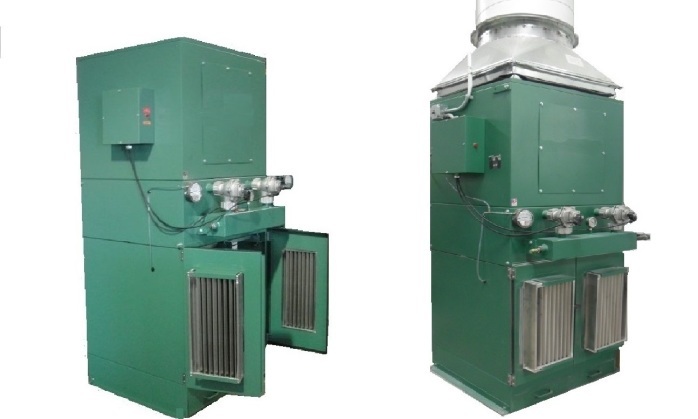

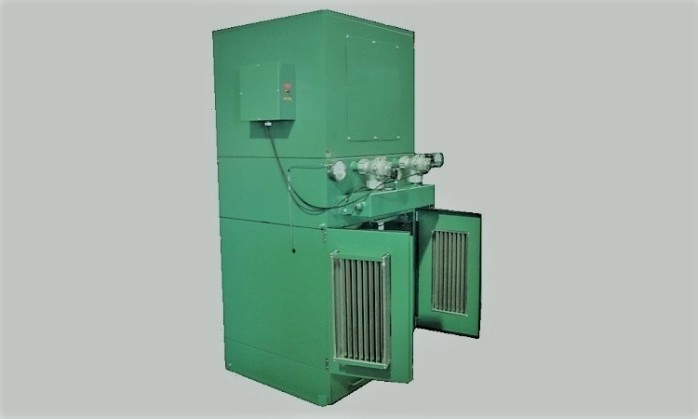

PBM4 Cabinet Collector

The PBM Cabinet Style Dust Collectors provide superior dust control in stone cutting and sanding shops.

99.97% guaranteed efficiency at 0.3 micron particle size!

Manufactured using 11- and 14-gauge steel and painted with a heavy industrial powder coated textured finish for harsh environments. These machines are very flexible, and multiple uses for the PBM can be achieved by offering a variety of air inlet choices depending on applications. For example, hinged removable side inlet doors improve the overall efficiency of the PBM’s capturing of the ambient dust. If the dust is abrasive or has sparks, air inlet choices of either louvered or metal mesh are available.

Sticky dusts are removed prior to the cartridge using inexpensive off-the- shelf pleated filters, which protect the more efficient and expensive cartridge filter. As processes or operations change within your shop, all of these inlet options can be swapped with ease by simply removing the inlet doors. Quiet operation for the PBM is available through factory-installed acoustical lining inside the blower housing. If further noise reduction is required, a silencer is available. Energy savings provide a rapid return on your initial investment.

Click here to see a case study

PBM units return cleaned air to the plant environment. This eliminates the need to exhaust the air outside, and makes make-up air (and its associated heating and/or cooling costs) unnecessary. For clean exhaust air, customers should choose the option of a HEPA after-filter, which provides 99.97% guaranteed efficiency at 0.3 micron particle size.

PushPull
These PBM-6 units discharge air is exhausted into a duct that is strategically exhausted back into the shop to help blow the dust back toward the inlets of the PBM-6 units. This is a very effective method of reducing airborne stone dust. Also a good method of retaining cooled or heated air.

Features

  • Basic PBM units include either four or six pleated cartridge filters rated at 99% efficient
  • Reliable, efficient electric motor, controlled and protected by a manually operated adjustable fused disconnect switch
  • Servicing the PBM is easily possible with the filter or Magnehelic gauge
  • Less maintenance work on the PBM is required due to the great amount of filter surface area
  • Manufactured using 11- and 14-gauge steel and painted with a heavy industrial powder coated textured finish
  • Flexible usage due to a variety of air inlet choices
  • Quiet operation
  • Energy savings provide a rapid return of initial investment
  • Meets or exceeds OSHA Silica requirements

Specifications

Aitflow (CFM) # of Filters / Total filter area Dimensions in inches
PBM-4 (5HP) 3,200 4 / 1096 sq ft 37x38x86
PBM-6 (7.5HP) 5,000 6 / 1644 sq ft 54x38x86
