Vertical and Horizontal Media Filtration

Vertical Media Filtration, VMW Series

The vertical media collector is a modular filtration unit, typically used to filter mist, dust, smoke, fume, gas, and vapor. Several sizes are available with airflows ranging from 500cfm and higher.

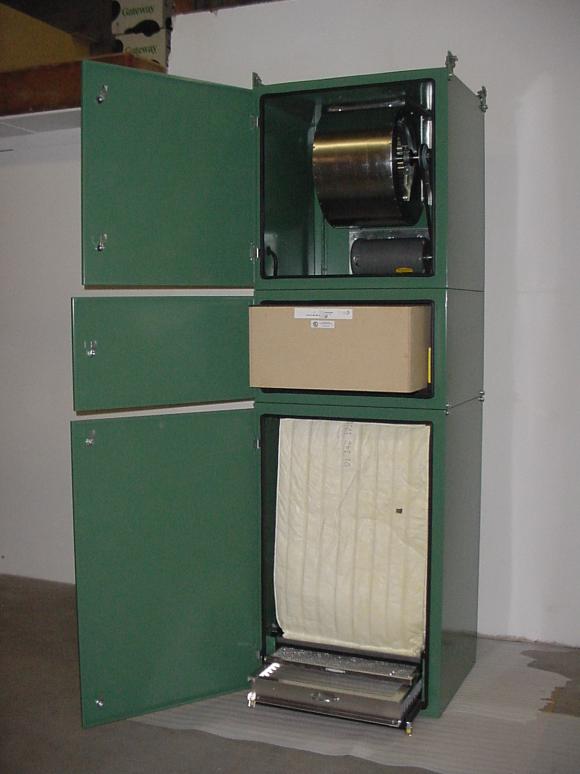

Photo - VMWH-3000

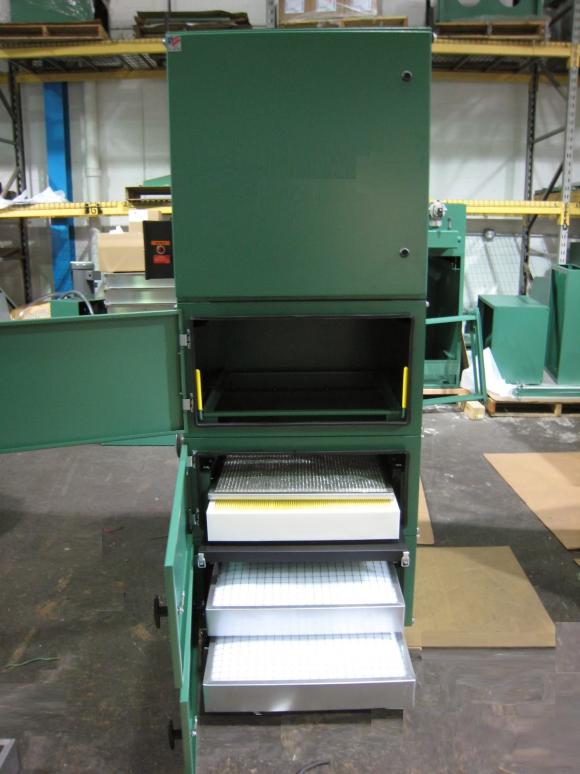

VMWH-3000 with HEPA
  • Filters mist, dust, smoke, fume, gas, and vapor
  • Built and sold primarily as Mist Collectors
  • Sizes ranging from 500cfm through 18000cfm
  • Three stages of filtration with optional 4th stage HEPA
  • Aerospace gasket for optimum sealing
  • Gauge for quick reference of filter loading for ease of maintenance
VMW, Large VMW Series

The larger VMW Series comes in five versions, basically it is the number of filter modules or stacks of filters. The VMW-3000 has one stack of filters, the VMW-6000 has two stacks of filters, the VMW-9000 has three stacks of filters, these three models have the filter stacks side by side. Then we go into the VMW-12,000 which has two stacks in the front and two stacks behind for a total of four stacks of filters. The VMW-18,000 has three stacks in the front and three behind for a total of six stacks of filters. The more stacks of filters the more filter area and the higher amount of airflow or CFM the unit can handle.

Unit Type CFM Mtr HP Weight in LBS / Dims in inches
VMW/VMD-3000 3000 2/3 340 LBS / 34x27x114
VMW/VMD-6000 6000 3/5 620 LBS / 63x27x120
VMW/VMD-12000 12000 7.5 63x54x120
VMWH/VMDH-3000 1200-1500 2/3 458 LBS / 34x27x131
VMWH/VMDH-6000 2400-3000 3/5 830 LBS / 63x27x137
VMWH/VMDH-12000 7.5 63x54x137

​​VMSeries Vertical Media Collection Systems are designed to provide efficient, cost effective control of mist, dust, smoke, fume, and gas/ vapor contaminants generated from a variety of manufacturing and process applications. Our larger Vertical Media Collection Systems modular design provides the ultimate in unit filtration flexibilty or adaptibility enabling them to handle a varietyof airborne contaminants.

VM Series
VM Series

Modular design allows for simple intergration of additional filter modules which allow the collectors filter stages to be easily customized to meet the exact filtration requirements of the application. Should contaminants change due to process changes, existing filter modules can be easily added and/or altered to adapt to the new contaminants generated.

Options:

  • HEPA Module: with an efficiency rating of 99.97% @0.3 microns
  • Carbon Module: for the removal of gas/vapors and odors
  • Impinger Module: for the removal of large mist particulates and sticky mist contaminates
  • Multi-Vee Module: for the removal of dry or moist sticky dusts
  • Outlet Plenum
  • Floor Stand
  • Direct Drive Fan Packages
  • Attenuators
  • Custom Units available up to 24,000 CFM

Features:

• Standard configuration with CFM ratings from 3000-9000 CFM
• Motors available from 2 HP through 7.5 HP for a wide range of applications
• Adjustable RPM, belt driven blowers for varying airflow
• Magnehelic gauge for quick reference of filter-loading
• Third stage filter element provides 95% efficiency per ASHRAE 52.1 & 52.2

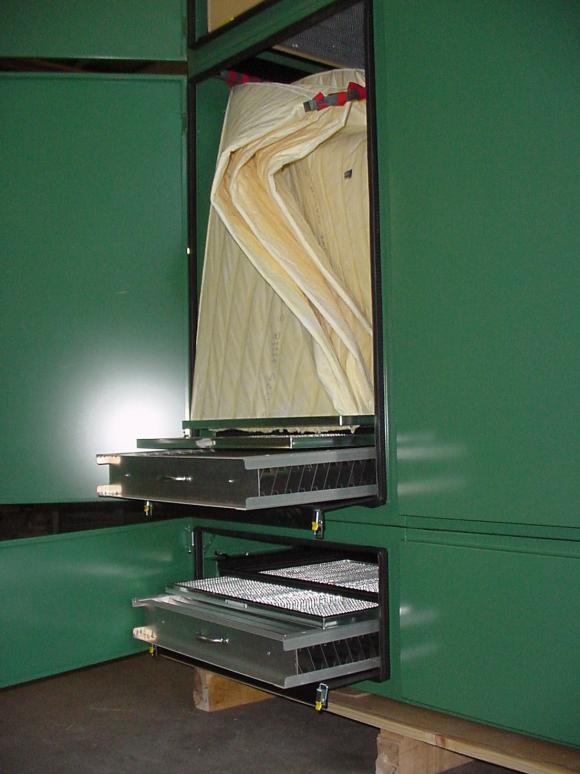

• Pull out style bag retaining rods allow filter bags to be installed from outside of the cabinet and hold filter bag pleats in place,keeping bag envelopes evenly spaced for maximum collection
• Improved, final stage Vee-Bag filter sealing is provided by the removable and/or replaceable face sealing frame that eliminates filter leakage and bypass problems found with conventional side-mounted gasket sealing
• Tube type aerospace gaskets create three (3) sealing surfaces for optimum leak resistance.Gaskets are mechanically fastened to the cabinets eliminating problems with adhesives as well as making them extremely easy to replace.

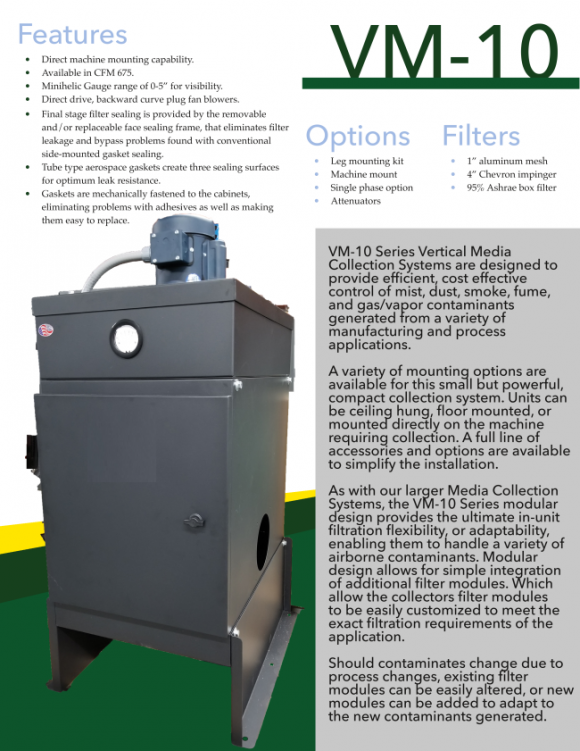

VMW-10, Small VMW Series

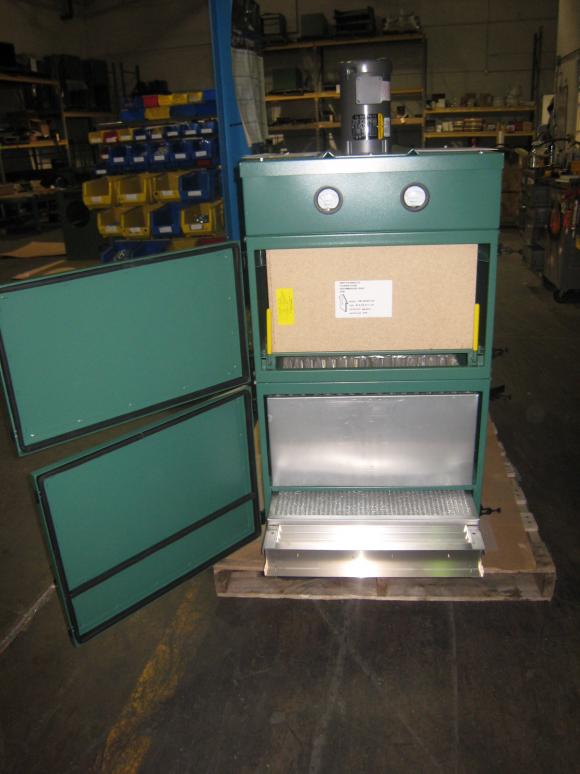

Photo - VMWH-10-20 Showing Filters
Photo - VMWH-10-20

The VMW-10 is our smaller version of the larger VMW units, same type of filters, smaller filter area so therefore lower airflows or CFM. The VMW-10 can be machine mounted, floor mounted or hung from a wall or ceiling.

A variety of mounting options are available for this small but powerful, compact collection system. Units can be ceiling hung, floor mounted, or mounted directly on the machine requiring collection. A full line of accessories and options are available to simplify the installation.

Horizontal Media HM Series Units

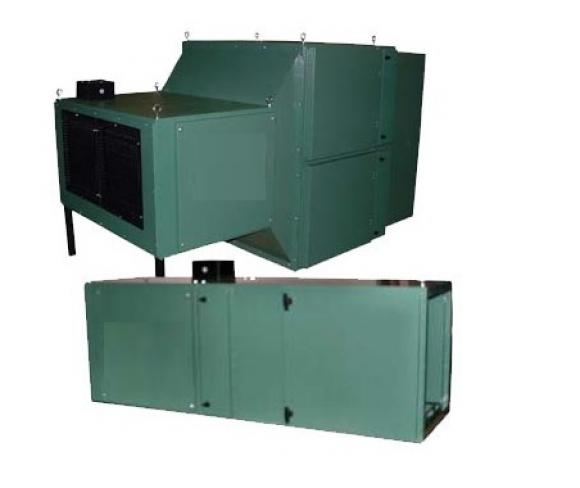

HMpic
Horizontal Media Collectors

Horizontal Media Collection Systems (HM) are designed to provide efficient, cost effective control of mist, dust, smoke, fume, and gas/ vapor contaminants generated from a variety of manufacturing and process applications.

Our HM Series modular design provides the ultimate in unit filtration flexibility or adaptability enabling them to handle a variety of airborne contaminants. Modular design allows for simple integration of additional filter modules, which allows the collectors filter stages to be easily customized to meet the exact filtration requirements of the application. Should contaminants change due to process changes, existing filter modules can be easily added and/or altered to adapt to the new contaminants generated.

FEATURES:

• Standard configurations with CFM ratings from 300-9000 CFM
• Motors available from 2 to 7.5HP for a wide range of applications
• Adjustable RPM, belt driven blowers for varying airflow
• Magnehelic gauge for quick referencing of filter loading
• Third stage filter element provides 95% efficiency per ASHRAE 52.1 & 52.2
• Bag support rods provide positive filter support and spacing for optimum filter life and efficiency
• Drip resistant recessed inlet grill: for ambient units
• Industrial powder coat Kelley Green finish

OPTIONS:

  • HEPA Module: with an effieciency rating of 99.97% @ 0.3 Microns
  • Carbon Module: offering 45-180lbs of carbon, to remove gas/vapors and odors
  • Impinger Module: for the removal of larger mist particles and sticky mist contaminants
  • Multi-Vee Module: for the removal of dry or moist sticky dusts
  • Inlet Plenum: for connecting ducting
  • Outlet Plenum: for connecting ducting or as an attenuator
  • Direct drive fan packages
  • Portable configuration
  • Custom units up to 45,000 CFM

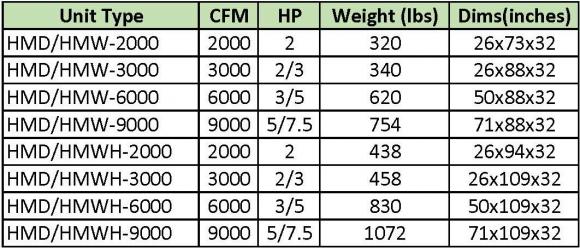

HMspecs
