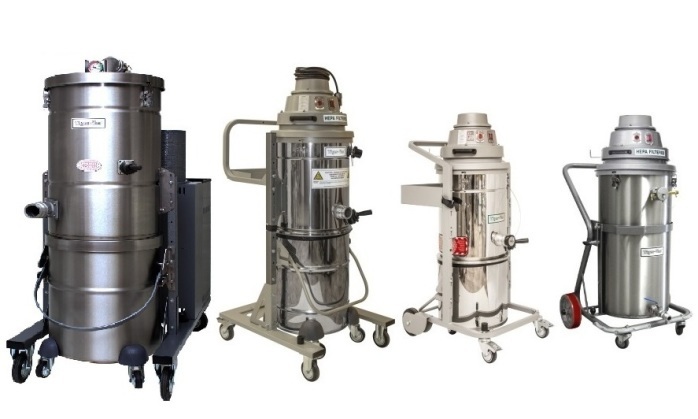

Div 2 Lineup

Industrial Vacuums for Division 2. Electric and Pneumatic.

To see our fully Explosion-Proof Div 1 and Div 2 Pneumatic Vacuums, click on THIS LINK for Models AVSD-25L and AVSD-100L

C-10 EX

C-10EX

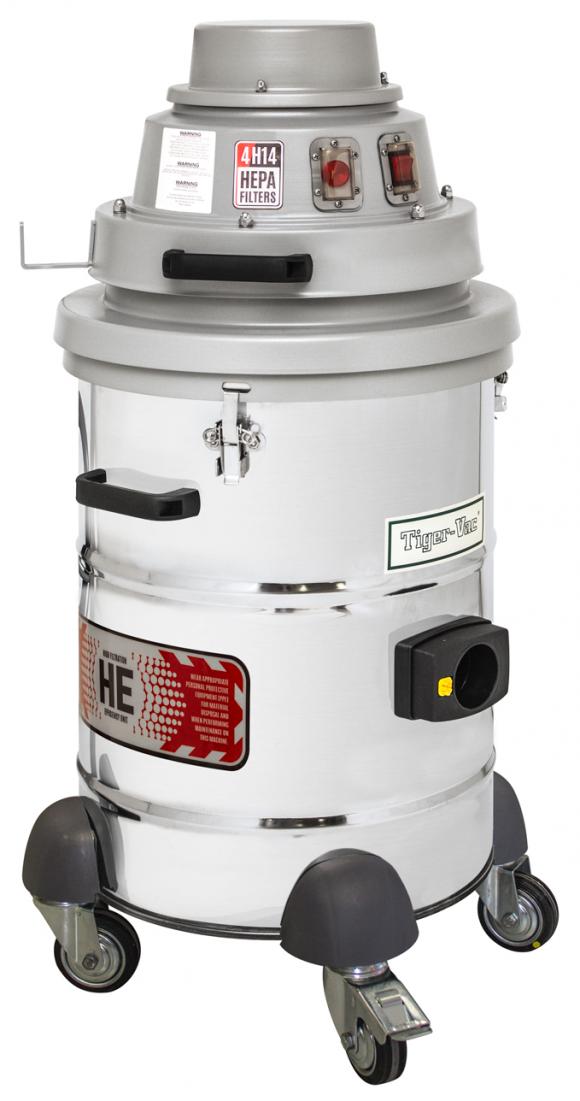

C-10EX (4W) Class 2 Division 2

Our dust ignition protected vacuum systems are OSHA NRTL certified for use in Class II, Division 2, Groups F &G Hazardous Locations (Zone 22 for dust group IIIC Conductive Dusts).

Features:

  • Available with a brushless motor where applicable
  • Intermittent housekeeping and general cleaning
  • Bypass Ametek® long life motor
  • Includes 4 HEPA filters. Class H14. Individually factory tested
  • Material to be recovered within a conductive cloth recovery bag
  • Includes an indicator light to warn of vacuum blockage
  • Recovery tank made of stainless steel SAE 430. Recovery tank made of stainless steel SAE 304 is also available

Specifications:

Specifications

Features:

  • Available with a brushless motor where applicable
  • Intermittent housekeeping and general cleaning
  • Bypass Ametek® long life motor
  • Includes 4 HEPA filters. Class H14. Individually factory tested
  • Manual Filter Shaker (MFS) with static dissipative Teflon laminated main cloth filter assembly
  • Detachable recovery tank (DT) for easy disposal of recovered materials
  • Material to be recovered within a conductive poly liner recovery bag for easy disposal

C-25 EX

C25WD

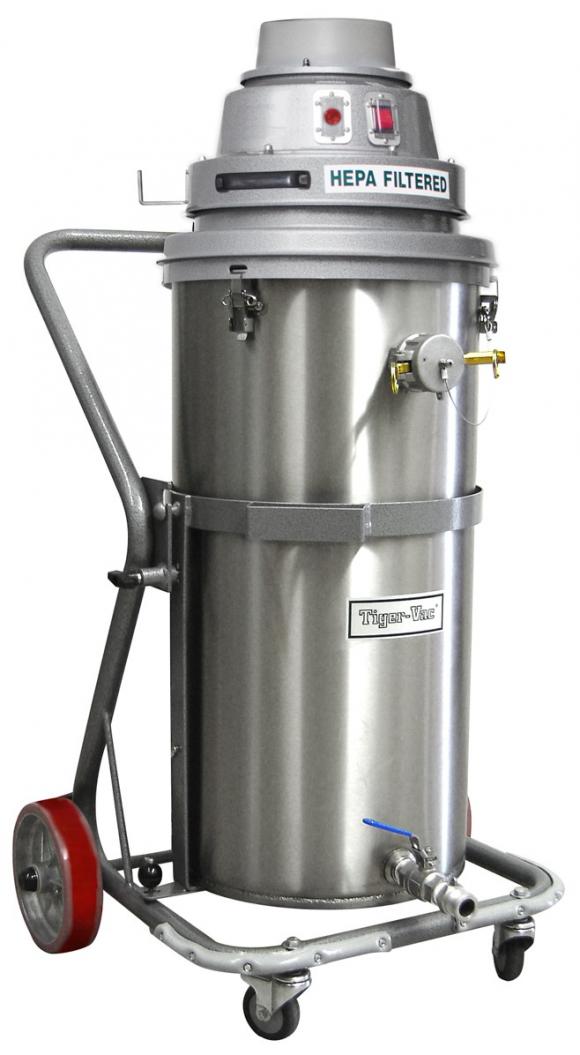

C-25 EX TC WET & DRY
  • Longer life brushless motor available. Always with 4 x H14 HEPA filters
  • Ideal for housekeeping and general cleaning
  • By-pass Ametek® long life motor
  • Includes 4 HEPA filters. Class H14. Individually factory tested
  • Includes an indicator light to warn of vacuum blockage
  • For wet & dry recovery
  • All stainless steel SAE 304 construction (except cart)
  • Stainless steel cart available
  • Equipped with a heavy duty powder coated tilting cart and stainless steel drain valve for easy emptying of recovered materials
  • Includes a complete static dissipative tool kit

Specifications:

C25WD

C-35 EX

C-35L

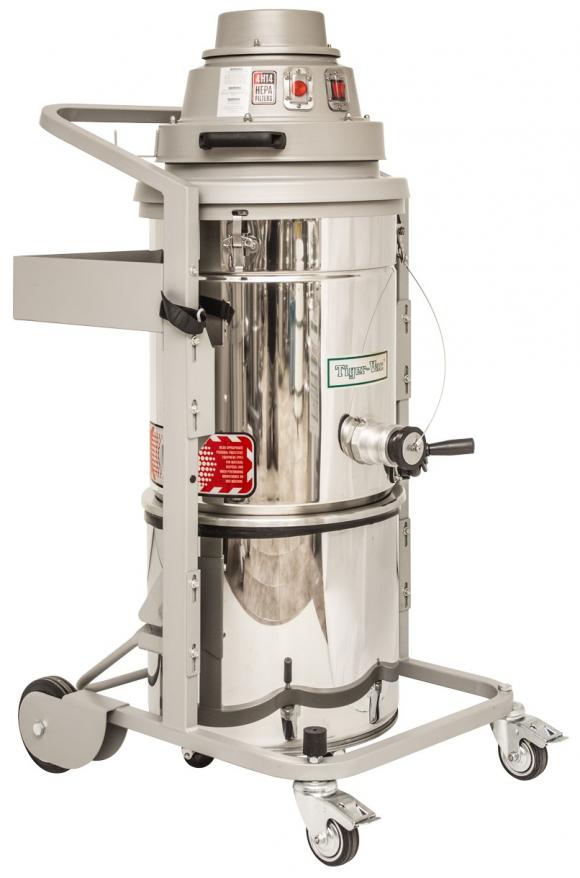

C-35L EX DT Manual Filter Shaker

DUST IGNITION PROTECTED

Division 2, Class II, Groups F & G

Certified Zone 22 Hazardous Areas / Dust Group IIIC (Conductive Dusts)This model can be used to Recover Combustible/Conductive Dusts in Hazardous Locations Division 2 and Zone 22 Dust Group IIIC:

Group F Conductive Carbonaceous Dust (carbon black, coal, coke dust, etc)
Group G All flour Dust (grain, flour, starch, sugar, wood, plastic, chemical dust, etc)
Group IIIC Conductive Dust Zone 22 (as per International Standards)

Specifications:

Specs1

C-55 EX

C55L

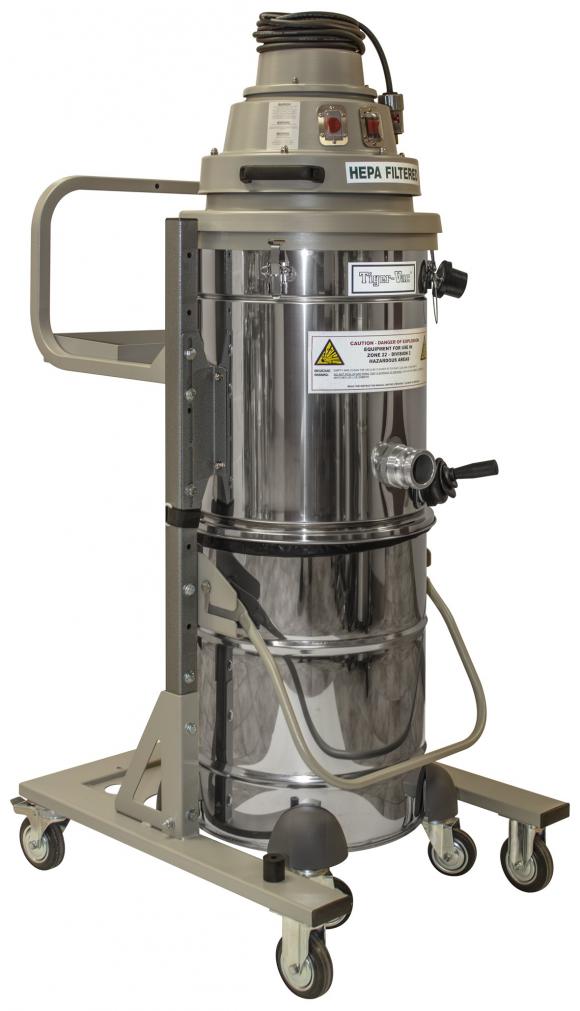

C-55 EX DT HD CART (MFS). Class 2 Division 2

The C-55L EX DT HD CART )MFS) is a OSHA/NRTL certified for Class 2 Division 2 areas and vacuuming of explosive powders.

  • Available with a brushless motor where applicable
  • Intermittent housekeeping and general cleaning
  • Bypass Ametek® long life motor
  • Includes 4 HEPA filters. Class H14. Individually factory tested
  • Manual Filter Shaker (MFS) with static dissipative Teflon laminated main cloth filter assembly
  • Detachable recovery tank (DT) for easy disposal of recovered materials
  • Material to be recovered within a conductive poly liner recovery bag for easy disposal

Specifications:

CD55LSpecs

Class 2 Division 2 Three-Phase

C2D2
CD-55L and CD-100L

Our Class 2 Division 2 Vacuums are NFPA compliant with the requirements of NFPA 652 Clause 8.4.2.2.1.7.

In the old days a plant manager would purchase a grounded vacuum that met minimal safety standards for XP dusts and locations. Over the last few years that has changed and bid specs are specifically calling calling for HAZLOC vacuums that are properly certified by a 3rd party testing lab.

CD-55L

CD-55L

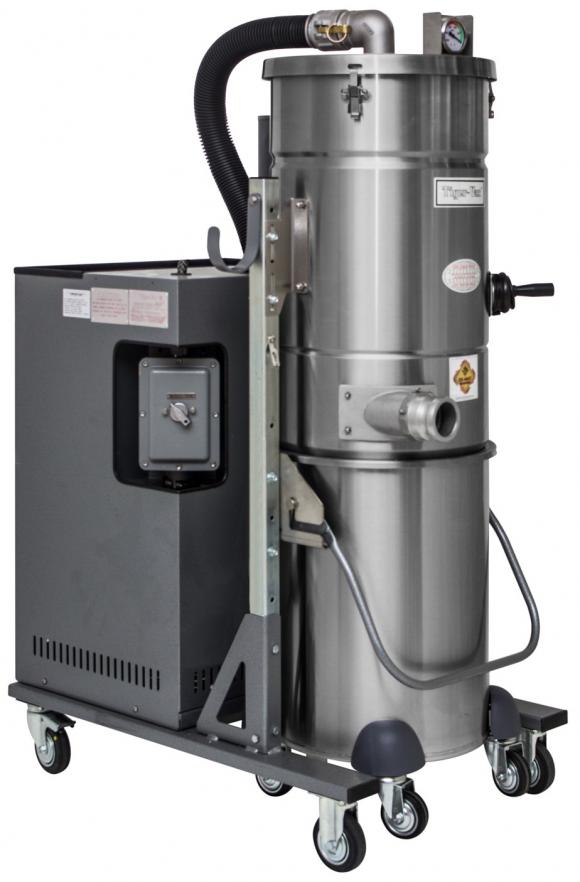

CD-55L (DT) EX (MFS) DIV. 2

​The CD-55L and CD-100L are available in 230V, 460V and 575V 3-Phase. Ranging from 2HP up to 7.5HP. All models are 304 Stainless, have manual filter-shakers, detachable tanks, and are rated for continuous-duty operation.

In addition to having the largest primary filters in the industry, the CD-55L and CD-100L also have HEPA filter with an efficiency of 99.995% at 0.3 micron. Tested IEST-RP-CC001. H14 by MPPS method as per EN 1822 and OSHA compliant.

CD-EX Div.2 Models Certified for : Division 2, Class I, Group D Division 2, Class II, Groups F and G, T3C

Click HERE for CD-55L Specifications

​Click HERE for CD-100L Specifications

CD-100L

CD-100L 1

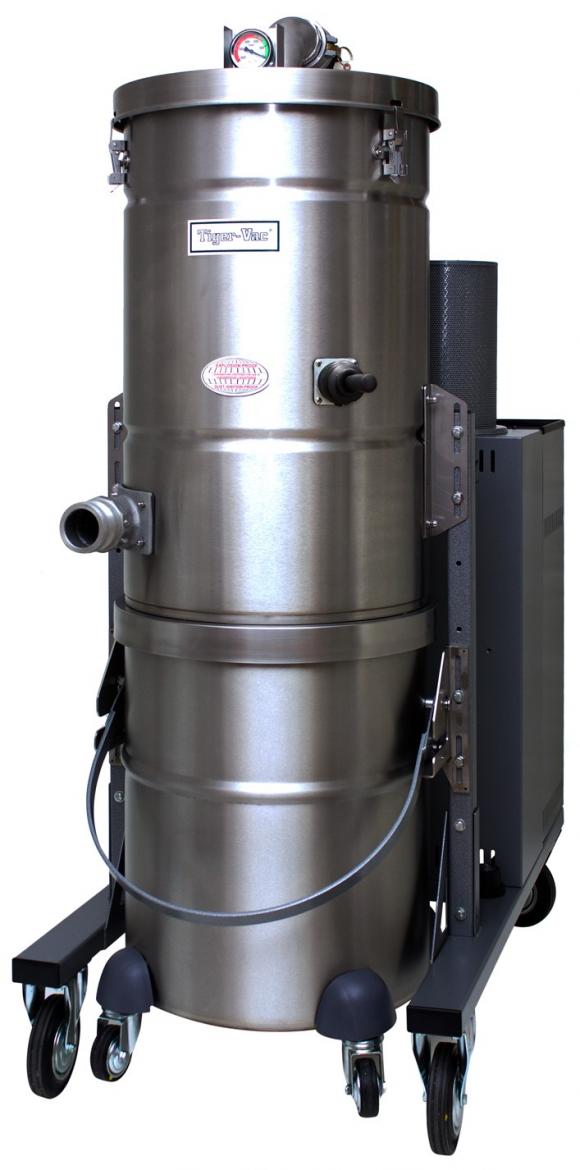

CD-100L (DT) EX (MFS) DIV. 2
  • Legally certified dust ignition protected
  • HEPA filter with an efficiency of 99.995% at 0.3 micron. Tested IEST-RP-CC001. H14 by MPPS method as per EN 1822 and OSHA compliant. All of our HEPA vacuum systems are aerosol leak tested before leaving our facility - optional
  • Manometer included (filter blockage indicator)
  • Manual Filter Shaker (MFS) system
  • Ideal for general cleaning and for process integration
  • Continuous duty 3-phase (TEFC) motor. Third Party Certified
  • For dry recovery only
  • Stainless steel SAE 430 body and heavy duty powder coated cart
  • Static dissipative poly liner and clip for the easy and safe disposal of recovered materials - available
  • Detachable recovery tank (DT) for easy disposal of recovered materials
  • Includes a complete static dissipative tool kit
  • Includes a True Cyclone Separator System located at the suction intake to enhance suction performance
  • NFPA compliant. Meets the requirements of NFPA 652 Clause 8.4.2.2.1.7

Class II, Groups F and G Wet & Dry Recovery

CSSD-55

CSSD55
CSSD-55 (TC) RE HEPA SERIES

Single/Twin Venturi, Dry Recovery Only or Wet & Dry Recovery

Certifications

This non-electrical equipment can be used in Class II, Groups F and G and Class III Hazardous Locations
WARNING : The above information is for reference only. Please note the North-American electrical codes do not regulate the use of non-electrical equipment in Hazardous Locations. This vacuum is not designed to collect metal dust. Only use recommended conductive hose & tools.

  • HEPA filter with an efficiency of 99.995% on 0.3 micron. Tested IEST-RP-CC001. H14 by MPPS method as per EN 1822 and OSHA compliant. All of our HEPA vacuum systems are aerosol leak tested before leaving our facility - included
  • For general housekeeping
  • Pneumatic (air-operated). Single venturi, or twin venturi for more power
  • Static dissipating and conductive
  • Category 3/EPL Dc, Zone 22 (Dust)
  • For wet & dry recovery. Designed to recover large spills
  • Heavy duty powder coated body and cart/dolly
  • Mounted on a Tilting Cart (TC) for easy disposal of recovered materials
  • 4-wheel dolly is available for easy maneuverability

Specifications:

CS555Specs

FAQ Section

Plus (click or tap to expand) + Can you explain what Combustible Dust is?

Combustible Dust. Dust particles that are 500 microns or smaller (material passing a U.S. No. 35 Standard Sieve as defined in ASTM E 11-09, Standard Specification for Wire Cloth and Sieves for Testing Purposes) and present a fire or explosion hazard when dispersed and ignited in air.

Plus (click or tap to expand) + What kind of vacuum do I need for explosive paint-booth powders?

Controlled Air Design has a full line of industrial vacuum cleaners for paint booth cleaning maintenance and powder paint recovery. We specialize in explosion-proof division 1 and 2, NFPA vacuum cleaners with HEPA filtration in pneumatic and electric models.

Paint Booth XP Vacuum

Paint Booth XP Vacuum

Plus (click or tap to expand) + What kind of vacuum do I need for cleanup at Firing Ranges

​Firing Ranges normally call for a NFPA 652 vacuum that is safe for explosive powder and dust in an ORDLOC area (ordinary location). If the area is an NFPA designated HAZLOC (Hazardous Location) then we can provide a HAZLOC vacuum. We like to study each application on a case by case basis so that we can recommend a safe and reliable solution that is compliant with all requirements.

Plus (click or tap to expand) + What types of areas and what types of dust are your Class 2 Division 2 vacuums suitable for?

Our Class 2 Division 2 models can be used to Recover Combustible/Conductive Dusts in Hazardous Locations Division 2 and Zone 22 Dust Group IIIC:

They are suitable for these groups:

Group F Conductive Carbonaceous Dust (carbon black, coal, coke dust, etc)

Group G All flour Dust (grain, flour, starch, sugar, wood, plastic, chemical dust, etc)
Group IIIC Conductive Dust Zone 22 (as per International Standards)

Plus (click or tap to expand) + What is a Dust Ignition Protected Vacuum Cleaner?

A dust ignition protected vacuum cleaner is a vacuum cleaner that is enclosed in a manner that excludes dusts and does not permit arcs, sparks or heat otherwise generated or liberated inside of the enclosure to cause ignition of exterior accumulations or atmospheric suspensions of a specified dust on, or in the vicinity of, the vacuum cleaner. To be considered as being dust ignition protected, a vacuum cleaner must be certified by a Nationally Recognized Testing Lab (NRTL).

Plus (click or tap to expand) + What is an Explosion Proof Vacuum Cleaner?

An explosion proof vacuum cleaner is a vacuum cleaner that is capable of preventing the ignition of a specified gas or vapor and that operates at such an external temperature that a surrounding flammable atmosphere will not be ignited. To be considered as being explosion proof, a vacuum cleaner must be certified by a Nationally Recognized Testing Lab (NRTL).

Plus (click or tap to expand) + What is NRTL?

OSHA created the Nationally Recognized Testing Lab (NRTL) program to ensure that certain types of equipment be tested and certified for their safe use in the workplace. A Nationally Recognized Testing Laboratory (NRTL) is a private-sector organization that OSHA has recognized as meeting the legal requirements in 29 CFR 1910.7 to perform testing and certification of products using consensus based test standards. An organization must have the necessary capability both as a product safety testing laboratory and as a product certification body to receive OSHA recognition as an NRTL. To find out more about the OSHA NRTL program, please follow this link to the OSHA website: https://www.osha.gov/dts/otpca/nrtl/nrtllist.html
