Vacuum Separation Systems

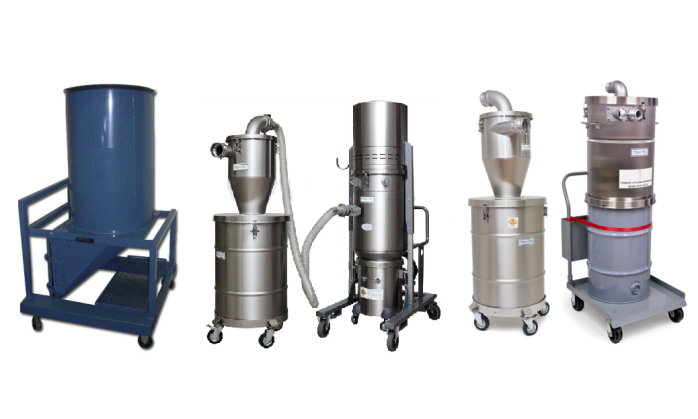

Cyclones1

Our Separation Systems allow for large quantity vacuuming into a separate receiver.

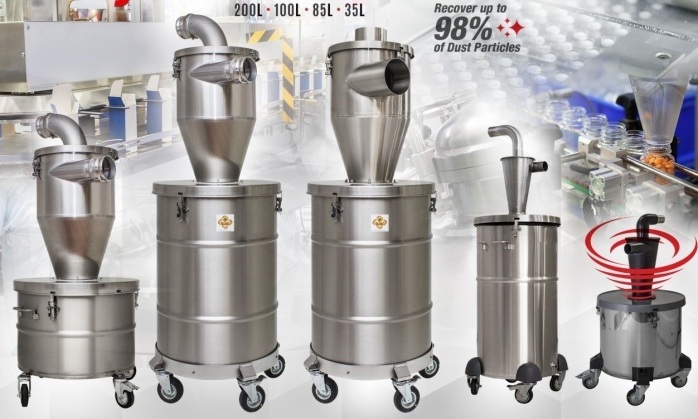

Stainless High Efficiency Cyclone

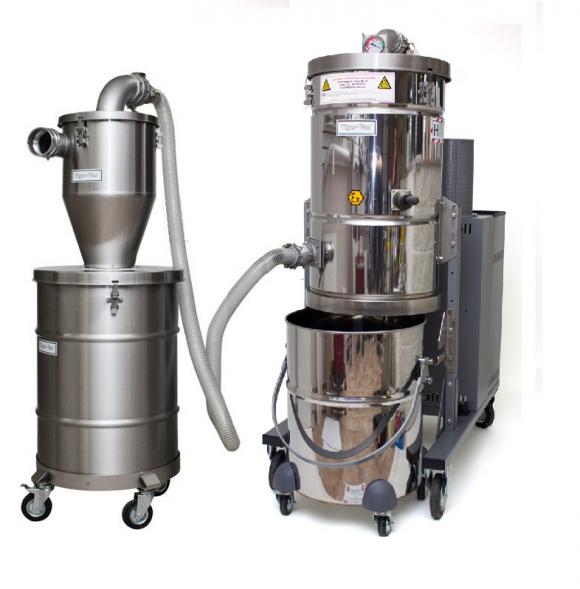

CD100LwSep
HEC High Efficiency Cyclone Separator - connected to a vacuum

​For vacuuming larger quantities of dust than the vacuums own waste drum can handle, we have inline separators that can be lined with a conductive waste bag. Cleanup is just a matter of pulling the bag from the drum that sits below the HEC. Our HEC Cyclone Separators can be used in ordinary vacuuming jobs as well as NFPA Hazloc for explosive dusts.

Designed for use in :

  • Division 1, Class I, Groups A, B, C and D
  • Division 1, Class II, Groups E, F, G
  • Hazardous Locations as defined in the National Electrical Code (NFPA 70)

HEC 55 Gallon

HEC-200L (4W) POWDER COATED
HEC 55 Gallon POWDER COATED

The HEC 55 Gallon POWDER COATED Cyclone Vacuum Separator allows you to collect the waste in a 55 gallon barrel that you can line with a collection bag. This allows for easy retrieval of vacuumed particulate that can be easily disposed of, or put back into production.

The HEC system also preserves the filter as the HEC intercepts the vacuumed particulate before it reached the vacuum. This is very useful when vacuuming abrasive materials that might wear out the filter. It is also useful if you are vacuuming large quantities.

Available in powder-coated steel or in stainless steel. We have an option for every type of industrial vacuum. We also have static-conductive collection bags. This makes for a super easy clean-up as all you have to do is pull the collection bag from the barrel and tie it off. Our HEC Systems come in many different sizes from 5 gallon to 110 gallons.

Give us a call anytime to discuss your application so that we can help you save time and money on other inefficient vacuuming systems.

HEC 55 Gallon Specifications:

HEC-200L Specs

Self- Dumping Overturning Hopper

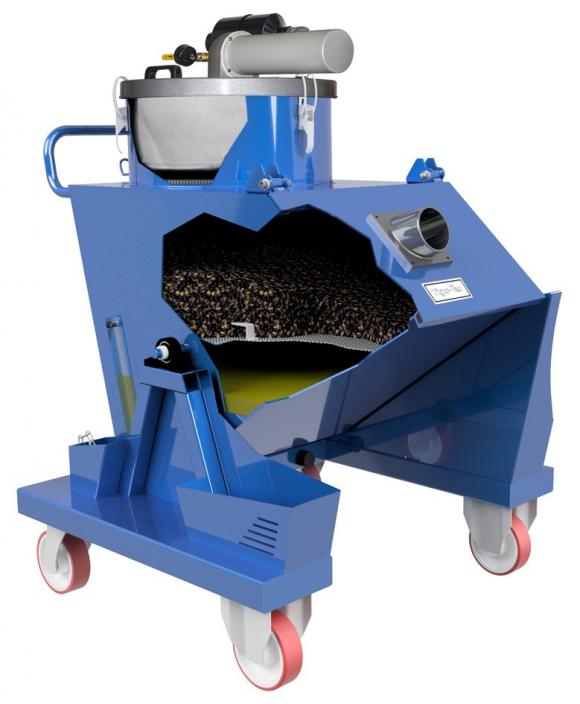

CS300L
Industrial Vacuum Cleaner (Pneumatic or electric), with Self- Dumping Overturning Hopper (SDOH) for the Recovery of large quantities of Metal Chips mixed with some Oil/Coolant (mostly Solids). Can also be used for dry vacuuming applications.
CS300L
SDOH Pneumatic

SDOH Pneumatic

  • Pneumatic (air-operated) industrial vacuum system with Self-Dumping Overturning Hopper (SDOH) for the recovery of large quantities of metal chips mixed with some oil/coolant
  • The single or twin venturi powerhead with 6 mm air jets is mounted directly on the hopper
  • The internal volume of the hopper is 52 gal. (200L). A screen inside the hopper separates the upper part
  • from the lower part. It can recover 26 gal. (100L) of metal chips and 26 gal. (100L) of oil/coolant
  • The metal chips are separated from the oil inside the hopper. The metal chips are recovered in the upper part of the hopper and the oil is deposited at the bottom of the hopper. The screen can be removed and 52 gal. (200L) of chips can be recovered
  • The oil is emptied using the 1” drain valve

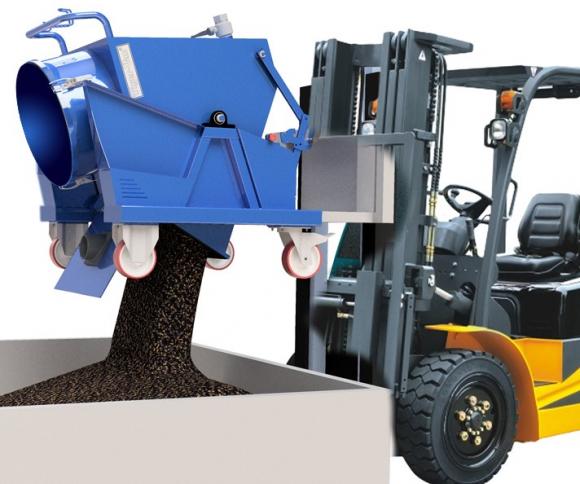

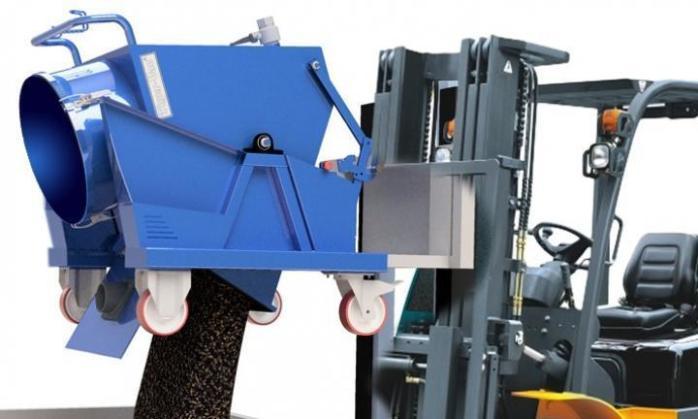

  • The Recovered metal chips are easily emptied using a forklift to lift and dump the contents of the hopper.
  • There is no manual lifting required. The manually
  • operated dumping mechanism is easy to use
  • Four 5” (125 mm) wheels, allow for maximum maneuverability
  • A washable main cloth filter is installed upstream fromthe venturi

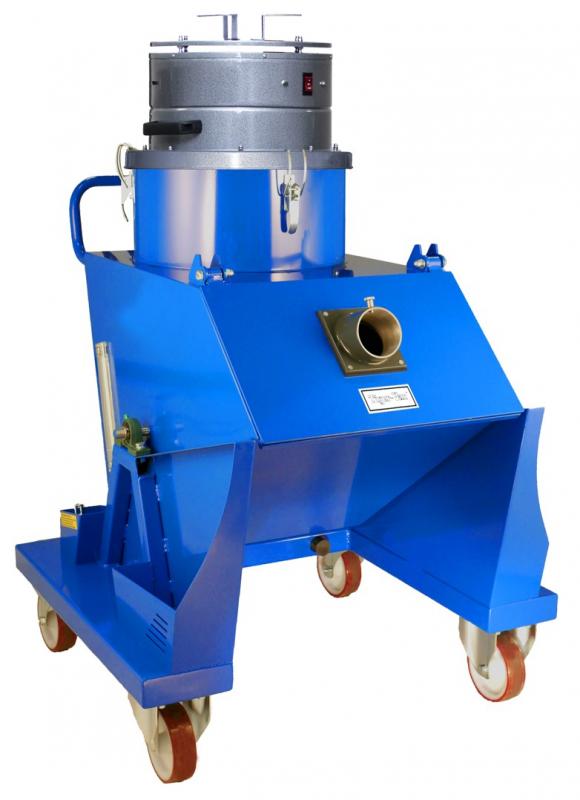

SDOH Electric
SDOH Electric

SDOH Electric

  • Electric industrial vacuum system with Self-Dumping Overturning Hopper for the recovery of large quantities of metal chips mixed with some oil/coolant
  • Powerhead with dual bypass/dual speed long life motors is mounted directly on the hopper
  • The internal volume of the hopper is 52 gal. (200L). A screen inside the hopper separates the upper part from the lower part. It can recover 26 gal. (100L) of metal chips and 26 gal. (100L) of oil/coolant
  • The metal chips are separated from the oil inside the hopper. The metal chips are recovered in the upper part of the hopper and the oil is deposited at the bottom of the hopper. The screen can be removed and 52 gal. (200L) of chips can be recovered
  • The oil is emptied using the 1” drain valve
  • The Recovered metal chips are easily emptied using a forklift to lift and dump the contents of the hopper. There is no manual lifting required. The manually operated dumping mechanism is easy to use
  • Four 5” (125 mm) wheels, allow for maximum maneuverability
  • A washable main cloth filter is installed upstream from the motors

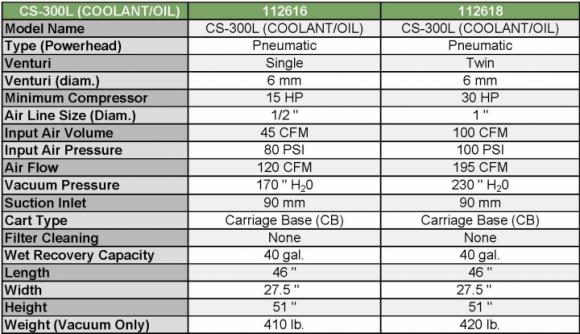

Specifications:

air1_720_414

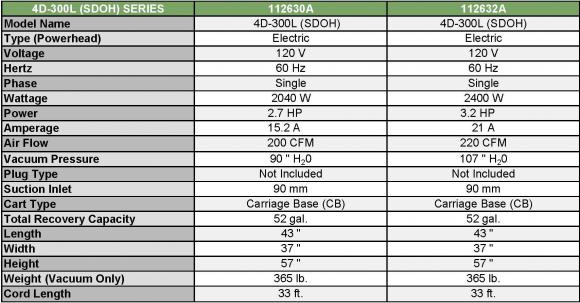

1111

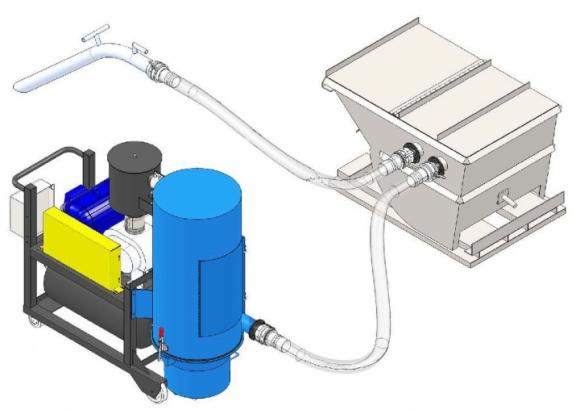

DVP with Sealed Hopper for vacuuming large quantities.

DVP with Sealed Hopper for vacuuming large quantities.
DVP with Sealed Hopper for vacuuming large quantities.

4D-300L- 110V

(COOLANT/OIL) SERIES 110V

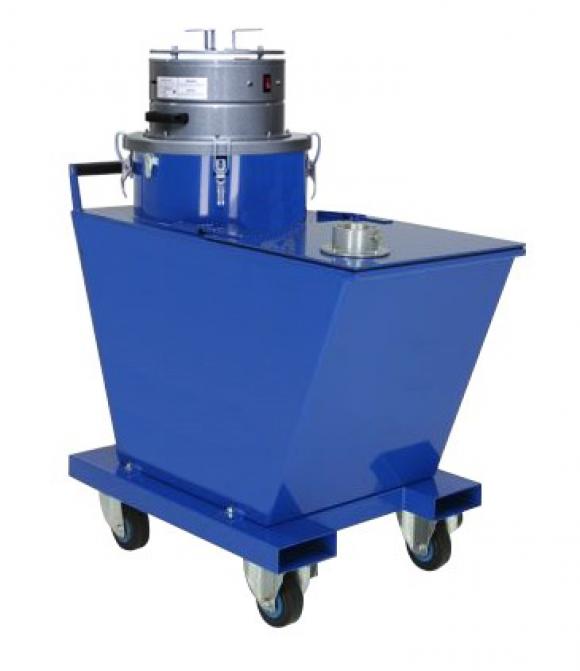

4D-300L
4D-300L

Features:

  • Electric industrial vacuum cleaner for the recovery of large quantities of coolant/oil mixed with some metal chips
  • The powerhead with dual bypass/dual speed long life motors is mounted directly on the recovery tank
  • The internal volume of the recovery tank is 10.6 cubic feet (300L). There is a basket in the upper part of the recovery tank which collects the metal chips
  • The basket can hold 3.5 cubic feet (100L) of metal chips, which allows 45 gal. (200L) of coolant/oil to be recovered in the lower part of the recovery tank
  • If the basket is removed (or if it is not used), then 78 gal. (300L) of coolant or cutting oil can be recovered
  • Coolant/oil is emptied using the 2.5” drain valve
  • An electric discharge pump is available for emptying the recovered coolant/oil. The flow rate of the optional pump is 80 gallons per minute (300L/min)
  • Four 5” (125 mm) wheels, allow for maximum maneuverability
  • A floater (liquid cut-off) is installed under the powerhead to prevent overfilling

Specifications:

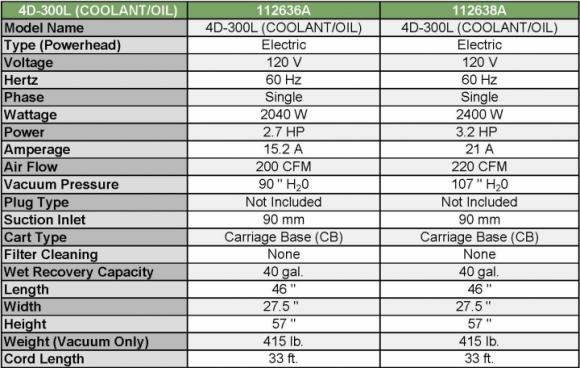

4D_300Lspecs_720_456

HOGOIL STANDARD 110V

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS

CLASS 16 1101 - 16 1181
All the electrical components are Recognized or Certified UL or CSA,

and qualify for all Applicable Requirements CAN/CSA-C 22.2 No.243 and UL STD No.1017

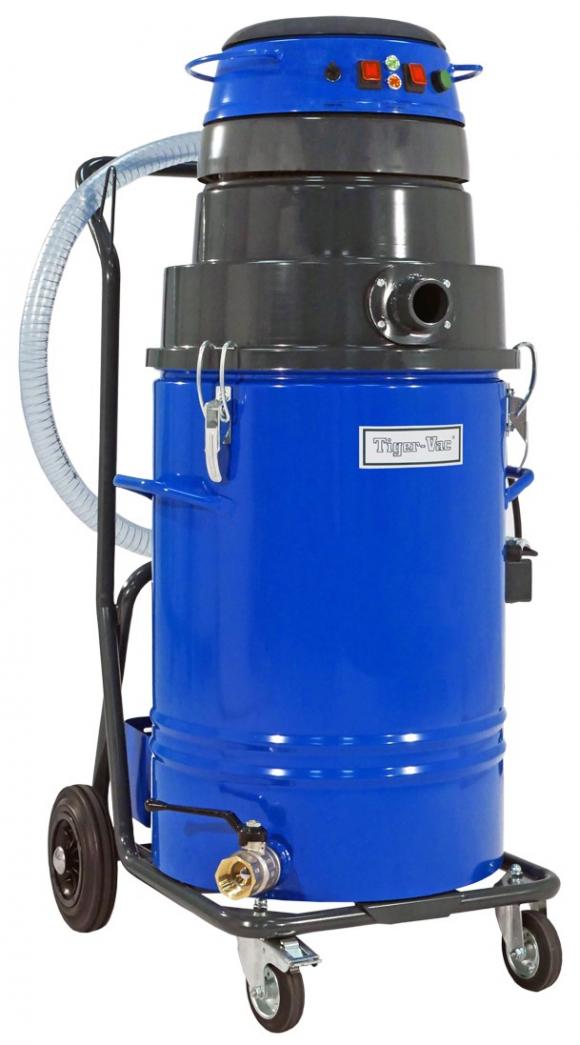

HOS

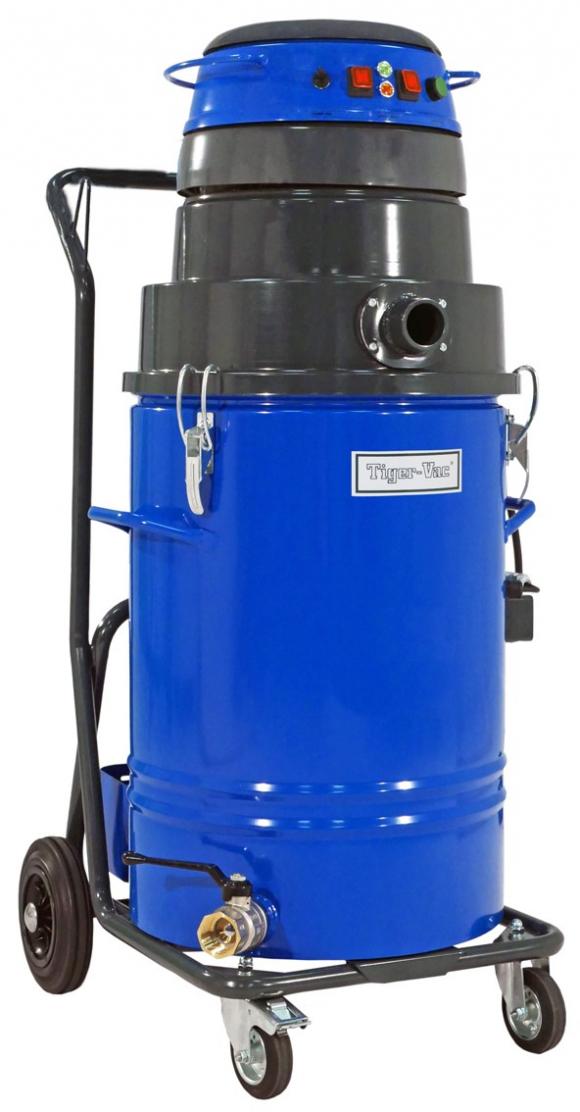

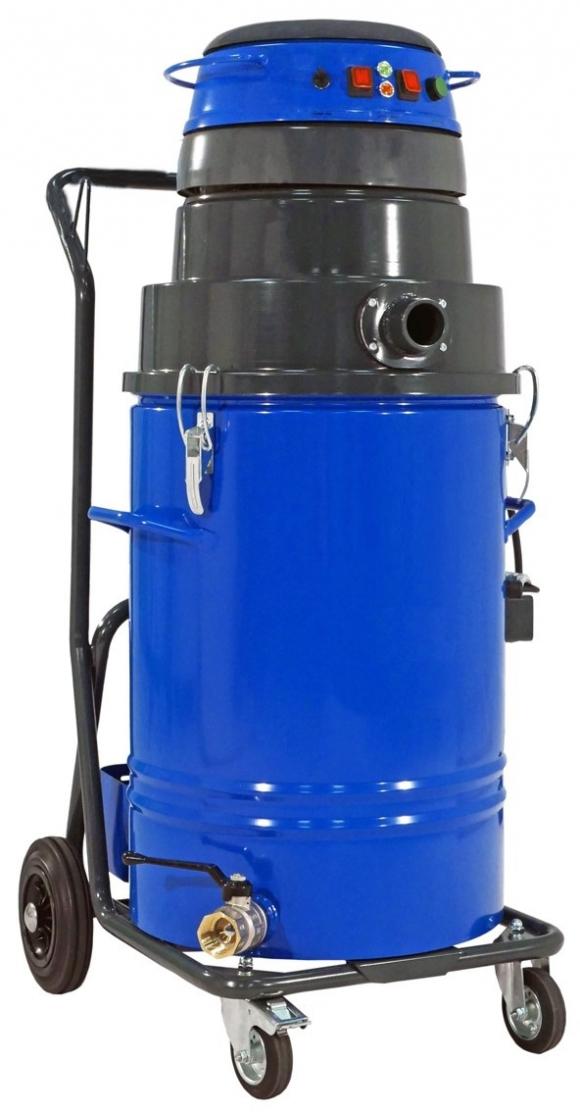

HOGOIL STANDARD

Features:

  • Designed for the recovery of metal chips and shavings mixed with oil. Can be used for both aqueous and synthetic based coolants
  • The HOGOIL’s compact size allows it to be quickly moved near and around machinery to facilitate machinery maintenance and to minimize down time
  • Single phase, dual motors - 2-stage heavy duty bypass type
  • Equipped with 2 independent switches (one switch for each motor). There is also an indicator light for when the maximum liquid recovery capacity has been reached
  • The electronic float valve automatically stops the vacuum when the container is full
  • There are two filters installed upstream from the motor - a foam filter and a Dralon pre-filter
  • The 2” (50 mm) suction inlet is positioned below the filters allowing for the recovery of both liquids and solids at the same time
  • Metal chips and shavings are collected in the removable sieve basket. The chips/shavings are separated from the oil as they pass through the sieve basket
  • A 1.25” drain valve is installed on the container for easy emptying of recovered liquids
  • Oil resistant suction hose and a variety of optional accessories are available

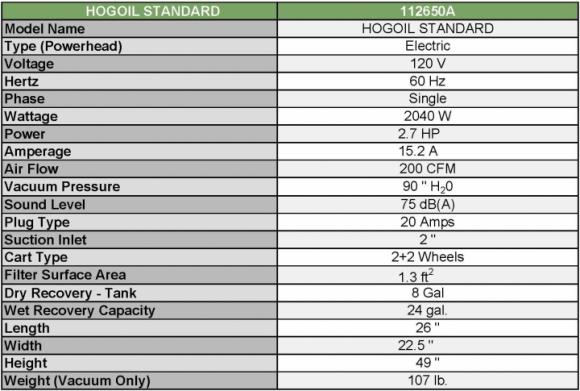

Specifications:

HOSSpecs
