Cleanroom Vacuum Cleaner Systems

Cleanroom Vacuum Cleaners

Designed for use in : Division 1, Class I, Groups A, B, C and D Division 1, Class II, Groups E, F, G Hazardous Locations as defined in the National Electrical Code (NFPA 70)

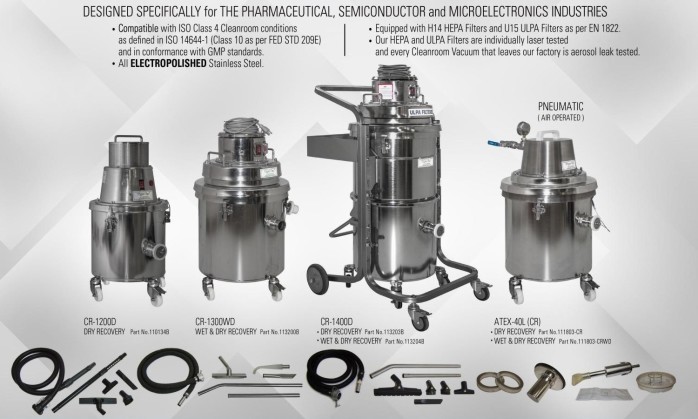

CR-1200D
Pharma - Dry Recovery Only with Stainless Steel Tank

CR-1200D Dry Only

​Our cleanroom vacuum cleaners are equipped with H14 HEPA Filters and U15 ULPA Filters as per EN 1822.

Our HEPA and ULPA filters are individually laser tested and every cleanroom vacuum that leaves our factory is aerosol leak tested.

New Generation cleanroom vacuum cleaner for dry recovery only. Designed specifically for the Pharmaceutical, Semiconductor and Microelectronics industries. Compatible with ISO Class 4 cleanroom conditions as defined in ISO 14644-1 (Class 10 as per FED STD 209E). Complete stainless steel construction with electropolished finish to remove surface contamination. Recovery tank and wheels are autoclavable up to121°C. Powerful suction and quiet operation. Compliant with GMP Standards.

CR1200D Specs

CR-1300 Wet-Dry

CR-1300WD
CR-1300 Wet-Dry
  • New Generation cleanroom vacuum cleaner for wet & dry recovery
  • Designed specifically for the Pharmaceutical, Semiconductor and Microelectronics industries
  • Compatible with ISO Class 4 cleanroom conditions as defined in ISO 14644-1 (Class 10 as per FED STD 209E)
  • Complete stainless steel construction with electropolished finish to remove surface contamination. Recovery tank and wheels are autoclavable up to 121°C
  • 2-stage bypass motor provides powerful suction and quiet operation
  • Compliant with GMP Standards
  • Each vacuum is aerosol leak tested before leaving our factory
  • Multiple stages filtration system. Simple and reliable filter change
  • Two absolute ULPA filters , rated U15 as per EN 1822, are placed at both the working air and the cooling air exhausts of the vacuum cleaner. These filters ensure the cleanroom compatibility of the vacuum cleaner assembled with a bypass motor
  • ULPA filter with an efficiency of 99.999% on 0.12 micron. Filtration efficiency of 99.9995% on 0.18 micron. Tested IEST-RP-CC001 - included
  • The primary filters consist of a disposable collection bag and a primary filter made of polyester. Filtration Class M as per IEC 60335-2-69
  • The recovery tank is made of SAE 316 stainless steel and is fully autoclavable (up to 121°C) including the white nylon wheels. Static conductive grey wheels (non-autoclavable) are available upon request
  • The stainless steel floater (liquid cut-off) is detachable for easy dismantling and maintenance. It is also autoclavable (up to 121°C)
  • Easy storage of the power cord on the powerhead
  • A variety of accessories are available, including autoclavable and ESD safe
CR1300Dspecs

CR-1400WD CR-1400D

CR-1400WD CR-1400D
CR-1400WD CR-1400D Dry and Wet-Dry
  • New Generation cleanroom vacuum cleaner is available in dry recovery only, or in wet & dry configurations
  • Designed specifically for the Pharmaceutical, Semiconductor and Microelectronics industries
  • Compatible with ISO Class 4 cleanroom conditions as defined in ISO 14644-1 (Class 10 as per FED STD 209E)
  • Complete stainless steel construction with electropolished finish to remove surface contamination.
  • Recovery tank and wheels are autoclavable up to 121°C
  • 2-stage bypass motor provides powerful suction and quiet operation
  • Compliant with GMP Standards
  • Each vacuum is aerosol leak tested before leaving our factory
  • Multiple stages filtration system. Simple and reliable filter change
  • Two absolute ULPA filters , rated U15 as per EN 822, are placed at both the working air and the cooling air exhausts of the vacuum cleaner. These filters ensure the cleanroom compatibility of the vacuum cleaner assembled with a bypass motor
  • ULPA filter with an efficiency of 99.999% on 0.12 micron. Filtration efficiency of 99.9995% on 0.18 micron. Tested IEST-RP-CC001 - included
  • The primary filters consist of a disposable collection bag and a primary filter made of polyester. Filtration
  • Class M as per IEC 60335-2-69
  • The recovery tank is made of SAE 316 stainless steel and is fully autoclavable (up to 121°C) including the white nylon wheels.
  • Static conductive grey wheels (non-autoclavable) are available upon request
  • The stainless steel floater (liquid cut-off) is detachable for easy dismantling and maintenance. Itis also autoclavable (up to 121°C).
  • The autoclavable floater is standard for the CR-1400WD and optional for the CR-1400D
  • Easy storage of the power cord on the powerhead
  • A variety of accessories are available, including autoclavable and ESD safe

CR1400specs

ATEX-40A (CR) Pneumatic (air-operated) Cleanroom Vacuum

ATEX 40A CR
ATEX 40A CR Air Operated
  • Legally certified explosion proof/dust ignition proof by an OSHA approved Nationally Recognized TestingLaboratory (NRTL)
  • Less than 10 ohms of resistivity
  • ULPA filter - downstream - included. With an efficiency of 99.9995% on 0.12 micron. Tested IESTRP- CC001. U15 by MPPS method as per EN 1822 and OSHA compliant. All of our ULPA vacuum cleaners are aerosol leak tested before leaving our facility. HEPA filter - upstream - also included for dry only version
  • Cleanroom compatible with ISO Class 4 (former Class 10). Can be used in the Pharmaceutical industry
  • For dry recovery only or wet & dry recovery
  • All stainless steel SAE 304/316 construction
  • Includes a complete static dissipative tool kit
  • Low noise level - only 68 dB(A)
  • The recovery tank is made of SAE 316 stainless steel and is fully autoclavable (up to 121°C) including the
  • white nylon wheels. Static conductive grey wheels (non-autoclavable) are available upon request
  • Pressure regulator included. Pressure regulator is adjustable between 0 psi. (0 bar) to 150 psi. (10 bars). It is factory set at 80 psi. (5.5 bars) for ideal performance and noise level

ATEX40Aspecs1

Nuclear Waste & Biohazard Substances

Nuclear Waste & Biohazard Substances
2D-15 DECOM (4W) RE SS HEPA
  • HEPA filter with an efficiency of 99.995% on 0.3 micron. Tested IEST-RP-CC001. H14 by MPPS method as per EN 1822 and OSHA compliant. All of our HEPA vacuum cleaners are aerosol leak tested before leaving our facility - included
  • For hospital decontamination and recovery of foam
  • Bypass heavy duty motor
  • For wet & dry recovery
  • GFCI (Ground Fault Circuit Interuptor) installed on the
  • power cable
  • All stainless steel SAE 304 construction
  • Polyethylene recovery tank available
  • Recovery tank is autoclavable
  • 4-wheel dolly is autoclavable
  • Includes defoaming liquid
  • Includes a complete tool kit which consists of a clear FDA compliant suction hose and stainless steel extension wands
Specs2
NUC
