Plus Series

Vacuums for commercial applications

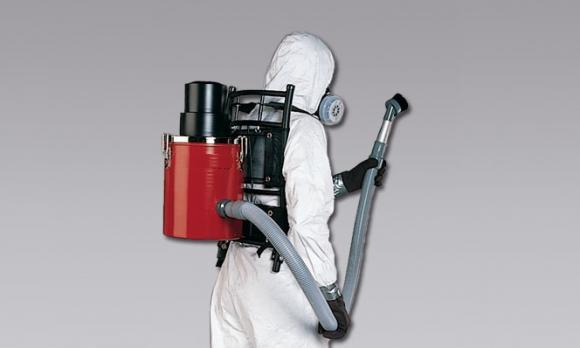

Backpack HEPA Vac

HEPA Filtered Back-Pack Vacuum for lead and asbestos remediation.

Backpack HEPA Vac
Backpack HEPA Vac

Plus (click or tap to expand) + Click HERE for Specifications

  • HEPA Filter- 99.97% efficient @ 0.3 micron
  • Powerful 1.25 HP motor- 95 CFM - 88” water lift
  • Large 2.5 gallon capacity
  • Comfortable, ergonomic harness design
  • Light weight- only 16 lbs
  • Includes: Hose, Crevice Tool, Dust Brush, Utility Tool and 2 pc. Wand

Click here to see a case study

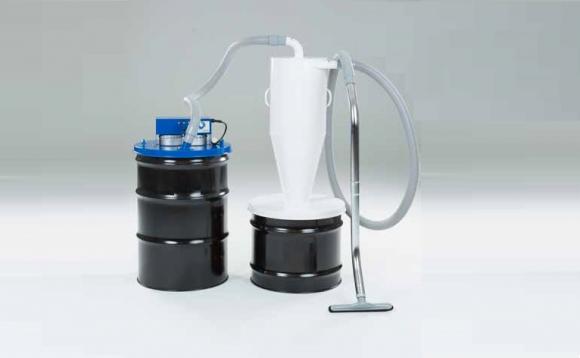

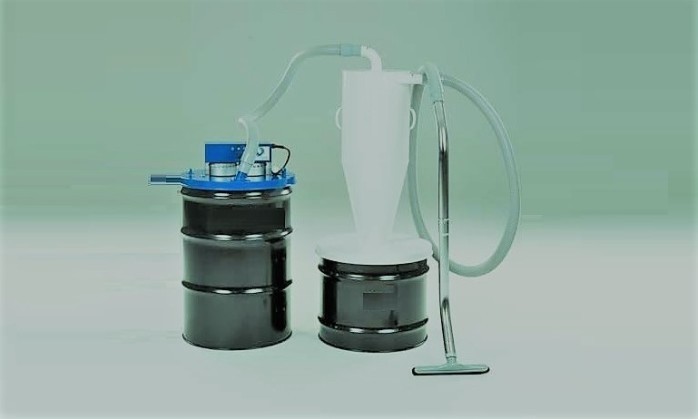

Plus Series with Drum-Top Vacuum with Ametek Motors

Click here to see a case study

Plus Series
Plus Series

The Plus Series upgrades to powerful Ametek 110V Long-Life Motors. Comes with a hose package which includes a 10’ rubber crush-proof hose, 2 hose-cuffs, 1 54” steel wand, and 1 14” floor/wall brush.

​These 110V HEPA Vacuum are used by contractors where 3-phase power is not available. The unique design gives the most vacuuming power you can get from regular 115 volt 20 amp service. The HEPA versions can be used for wet vacuuming by removing the HEPA Filter and adding the optional Wet-Float Shut-Off Kit. Call us today to discuss your cleaning application!

The Plus Series Specifications:

Model Power Air Flow/Inches of Hg Float
Single Motor 55 110V 9amp 106 CFM/6.5" Hg Yes
Dual Motor 55 110V 16amp 211 CFM/6.5" Hg Yes
Quad Motor 55 220V (dual 110V 16amp) 400 CFM/6.5" Hg Yes

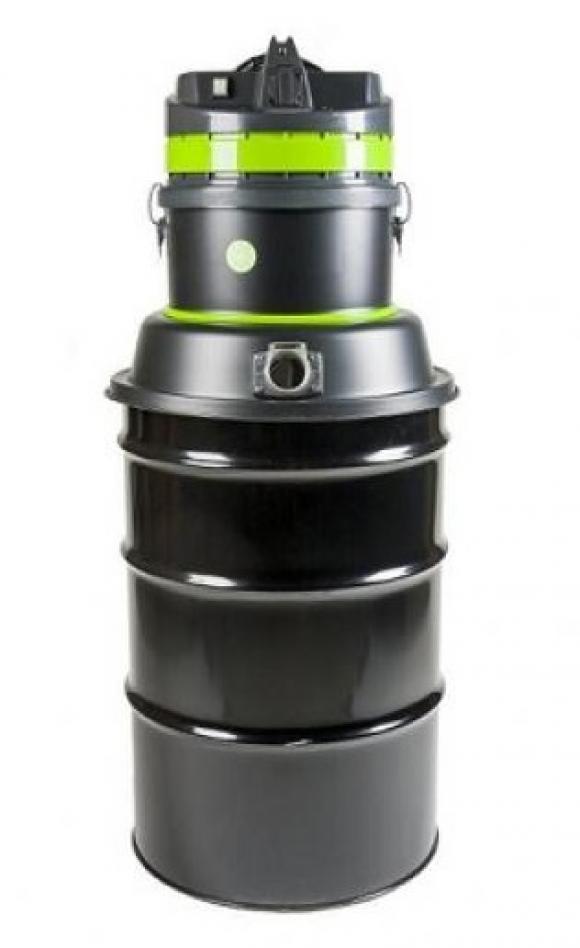

BV Series - The Barrel Vac

BV Series - The Barrel Vac
BV Series - The Barrel Vac

Convert any 55-gallon steel barrel into a powerful workhorse vacuum with the Controlled Air Design BV Series. Boasting single, dual or triple 110V electric motors and airflow of to 295 cfm - 87 inches of water lift.

Standard Cartridge filtration is .5 micron @99.97% efficiency. Wet/Dry options are also available. The BV Series are ideal in a variety of settings such as workshops and factories. Available in either 110/1/60 or 220/1/60 power

The Vacuum Head can be purchased without the 55-gallon barrel and dolly.   It is available in single motor, dual motor, and triple motor design.  The barrel vac is a great choice for contractors who are putting debris into 55-gallon barrels. Just fill the barrel up and remove the vacuum head.   These run on 110v electricity.  220V is also available.

Barrel Vac Specifications:

Barrel Vac Specifications:

Wet/Dry 55 Gallon Vacuums

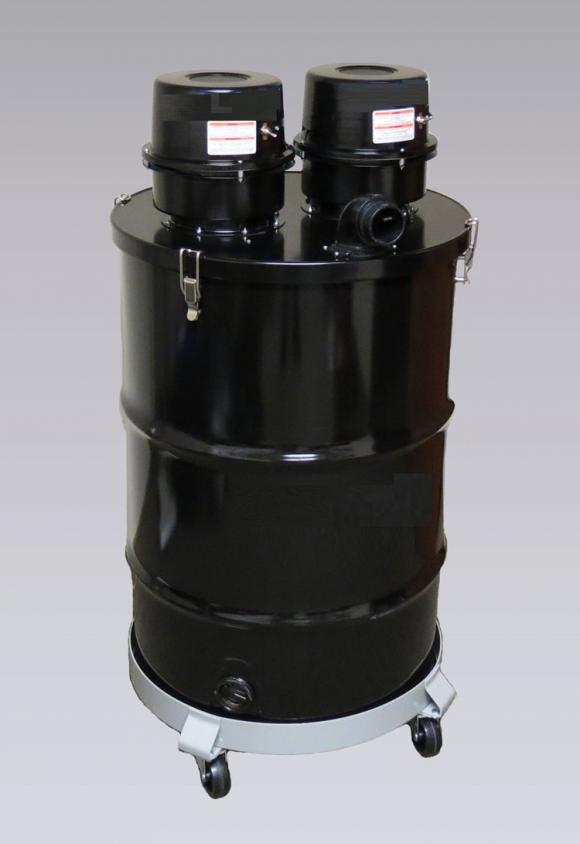

DP55DUAL
DP55DUAL - Formerly DP55230 110v/220V

DP55Dual Wet/Dry

  • Powerful motor - 238 cfm -114” waterlift
  • Automatic full tank water shut-off
  • Cart assembly for easy maneuverability
  • Includes drum and dolly
  • 24” x 24” x 48”
  • 114 lbs
  • 6 Piece tool kit: hose, wand, squeegee, floor tool, dust brush and crevice tool

Replacement Filters: #550015 - Foam Filter Bag #520210 - Dacron Filter Bag

DP55Dual Wet/Dry Adapter Kit

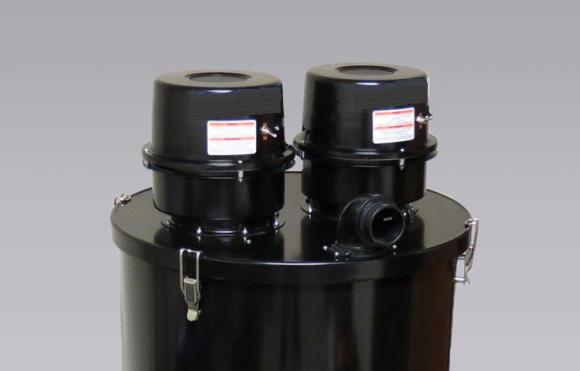

862148
862148 Adapter Kit 110V/220V
  • Powerful motor - 238 cfm -114” waterlift
  • Fits your standard 55 gallon drum
  • Same as DP55DUAL, less Drum,Dolly and Tool Kit

Replacement Filters: #550015 - Foam Filter Bag #520210 - Dacron Filter Bag

Padeye Vac for Flight Decks

Padeye Vacuum System
Padeye Vacuum System

The intrinsically safe pneumatic vacuum Padeye Systems allow for easy vacuuming on all U.S. Navy flight decks. It is also extensively used for vacuuming the Well Deck pad eyes on Amphibious Class Ships.

A “padeye” is a recess on the surface of the flight deck that houses the steel hooks that are used to strap down and secure the aircraft to the flight deck. It is imperative that these padeyes are clean at all times.

Pneumatic vacuums have no moving parts and very often are the only allowable vacuuming option around highly flammable airborne contaminants like aircraft fuel vapors. Pneumatic vacuums are powered 100% by compressed air. By adding dissipating and bonding components, the Padeye Vac is “intrinsically safe” to use in hazardous areas such as around aircraft fuel vapors.



Click here to see a case study

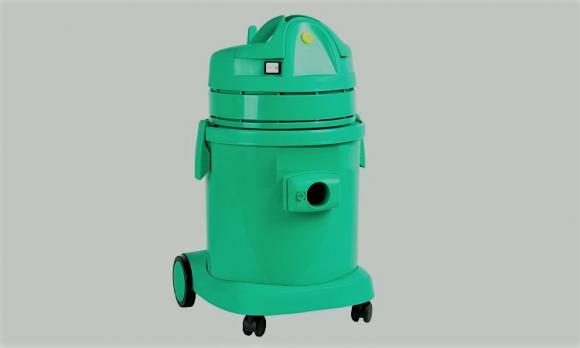

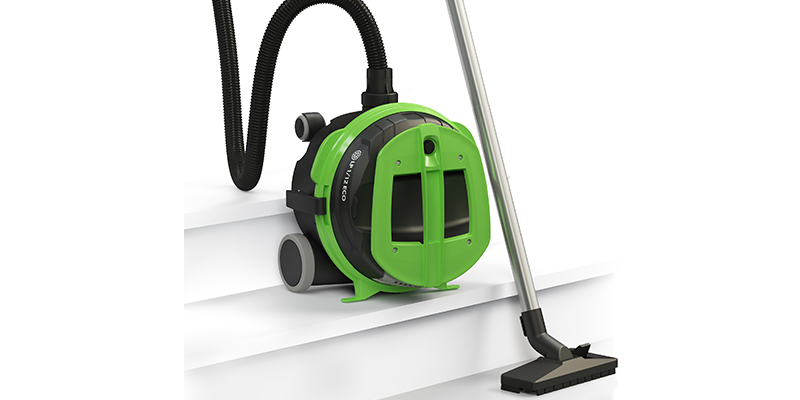

The Hospital Vac

The Hospital Vac
The Hospital Vac

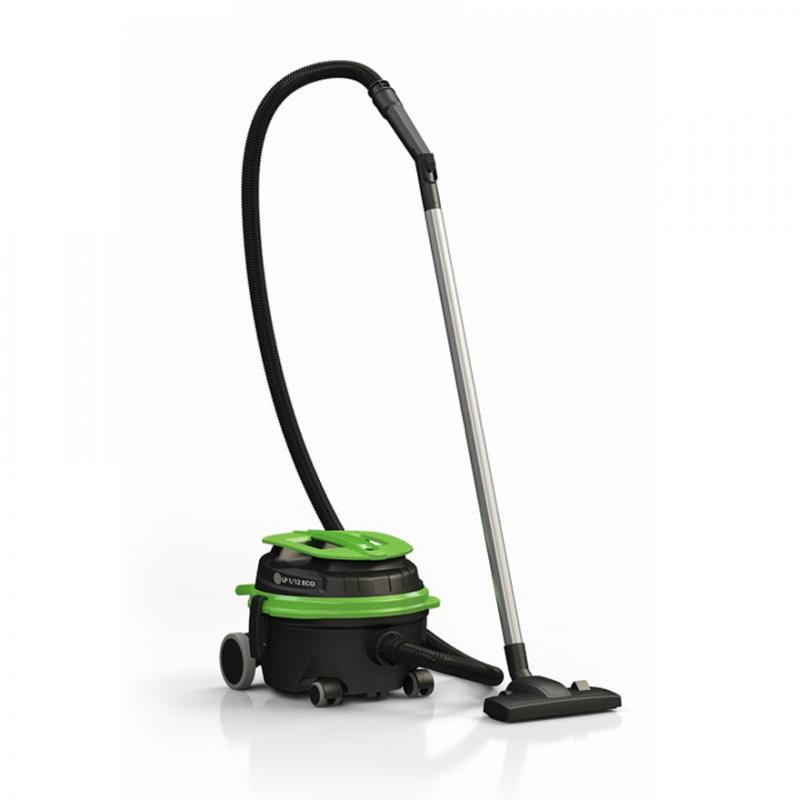

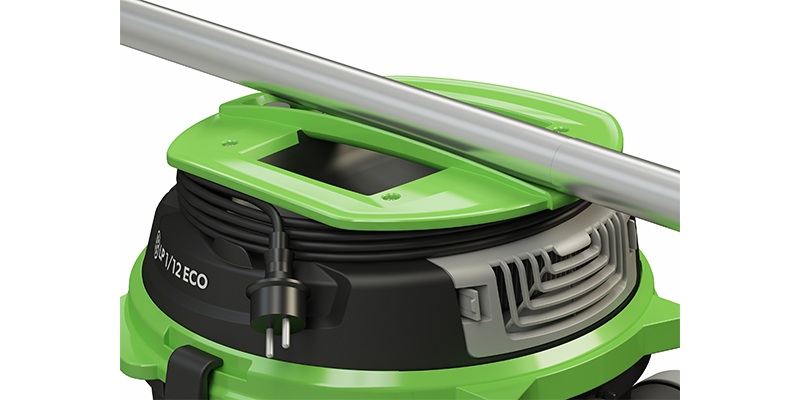

The Hospital Vac is used primarily in healthcare facilities, but it also can serve as a handy portable HEPA Vac for contractors who need critical filtration for tasks like vacuuming lead paint chips. The Hospital Vac is an all-in-one critical filtration vacuum and a HEPA air cleaner.

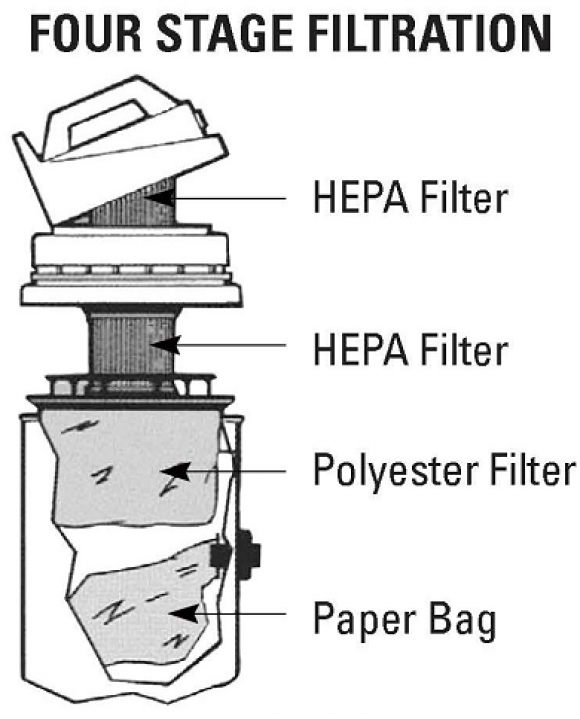

4-Stage Filtration with Dual-HEPA
4-Stage Filtration with Dual-HEPA

Technical data

  • Powerful 1,000-watt super high-speed vacuum for deep cleaning
  • Extra quiet for sound sensitive environments
  • Large capacity for prolonged use and efficiency
  • Dual HEPA filters
  • Secondary HEPA filter prevents escape of dust from carbon brushes
  • All plastic components and attachments
  • Optional Beater-Bar Floor Turbine Tool
Tool Kit
Hose & Tool Kit

Hand Held Venturi Vac

Hand Held Venturi Vac
Hand Held Venturi Vac

The Handheld Venturi Vac just needs a compressed air-line to turn it into a powerful vacuuming tool!

The Handheld Venturi Vac is used extensively in machine shops for cleaning up metal chips. The pneumatic design also makes the Handheld Venturi Vac intrinsically safe by not creating any static or sparks.

Turn any compressed air line into a powerful vacuum with the Handheld Venturi Vac!
​​The Blind Hole Gun is a modified version of the Handheld Venturi Vac gun, designed for removing chips from blind holes. The thin black tube blasts high pressure air to dislodge chips while the main nozzle draws them safely away. A clear plastic shroud protects the operator from flying debris. This compressed air cleaning (blow/vacuum) gun uses the Venturi/vortex principle to amplify the air flow. It has no moving parts and works from compressed air only. The Deep Hole Gun is a special version for cleaning blind holes up to 18” deep. A full range of accessories are also available.

Blind Hole Gun
