The DVP is designed to vacuum dense and heavy powders that centrifugal based vacuums cannot handle. The Powerlift comes in Electric, Diesel or Propane Powered. It is designed for Powerful on-demand bulk vacuuming.
The DVP Vacuum is a more powerful version of the DVR. Where the DVR excels with lighter dusts, the DVP is more for dense, heavy dusts because the DVP has a positive displacement pump that works harder as the job becomes more challenging.
| Model Number | DVP15/DVP20 | DVP25/DVP20 | DVP25/DVP30 |
|---|---|---|---|
| Blower Model | 5L/5L | 5L/6M | 6M/6M |
| System Horsepower | 15 HP / 20 HP | 25 HP / 20 HP | 25 HP / 30 HP |
| Number of Hoses | 1 x 2.0" or 2 x 1.5" / 1 x 2.5" or 3 x 1.5" | 2x 2.0" / 1 x 2.5" or 3x2.0" | 2x2,0" or 3x2.0" |
| Performance (lb/min) | 85/105 | 133/105 | 133/166 |
| Air Flow – Inlet (CFM) | 360/520 | 600/400 | 500/650 |
| Vacuum (Maximum) | 12" Hg./ 12" Hg. | 14" Hg./ 16" Hg. | 16" Hg./ 16" Hg. |
| Primary Filter (ft2) | 61.6 / 61.6 | 61.6 / 61.6 | 61.6 / 61.6 |
| Storage (US Gal) | 27 / 27 | 27 / 27 | 27 / 27 |
| Noise Level @ 3ft (dBa) | 85 / 85 | 85 / 85 | 85 / 85 |
| Weight (lbs) | 735/795 | 935/795 | 935/1030 |

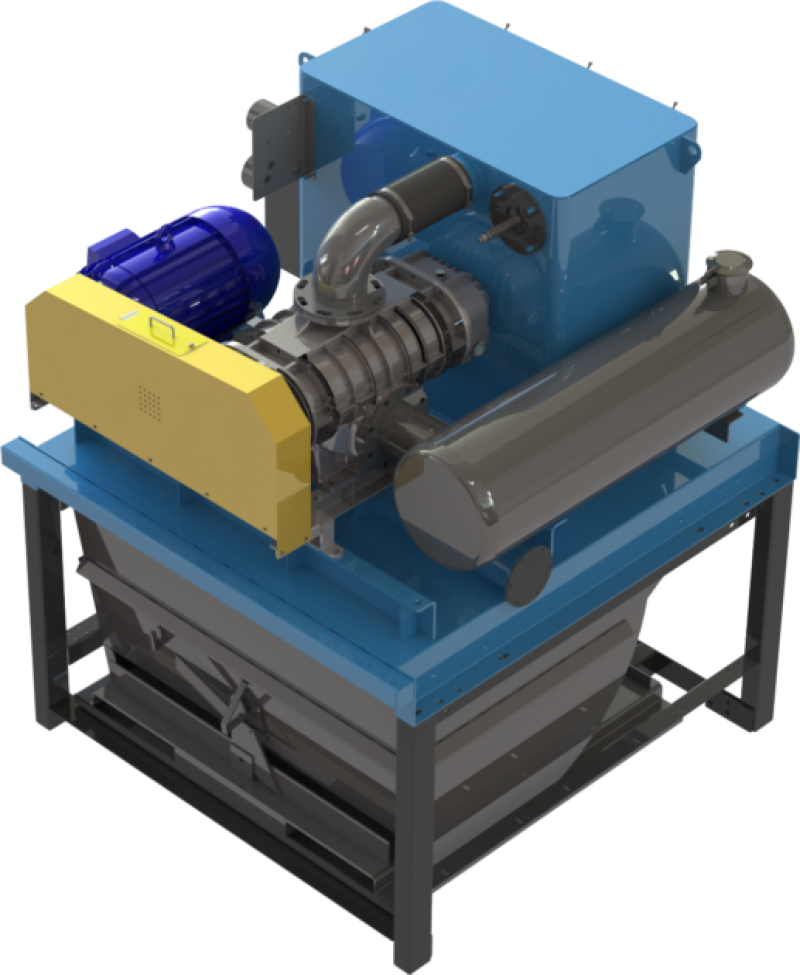

The DVP Triple-Filtration is so good they last years, and not months. Including HEPA filtration for safe vacuuming of silica dusts, and an internal baffle for the first filtration stage that is designed to deflect abrasive materials. The main filtration stage is a baghouse format with extra-large main filters. The triple-filtration design also means that you won't have downtime due to clogged filters.

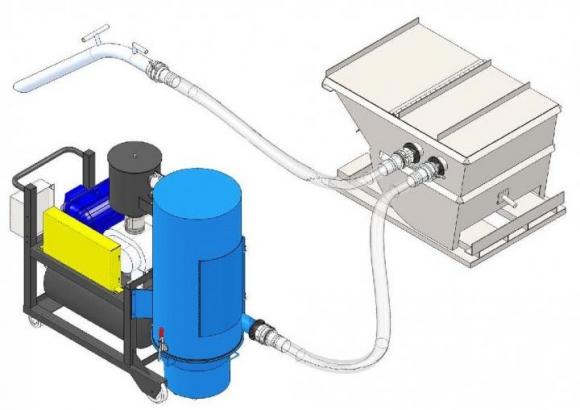

We carry a full range of intercept hoppers and portable separators to increase material storage. Our separators intercept vacuumed materials before they get to the filtration system. This is especially good if you are vacuuming abrasive materials in that you can greatly extend the life of the vacuum and the filters as most of the material goes into the hopper. Capacity up to 3 cubic yards and 28″ Hg. vacuum.

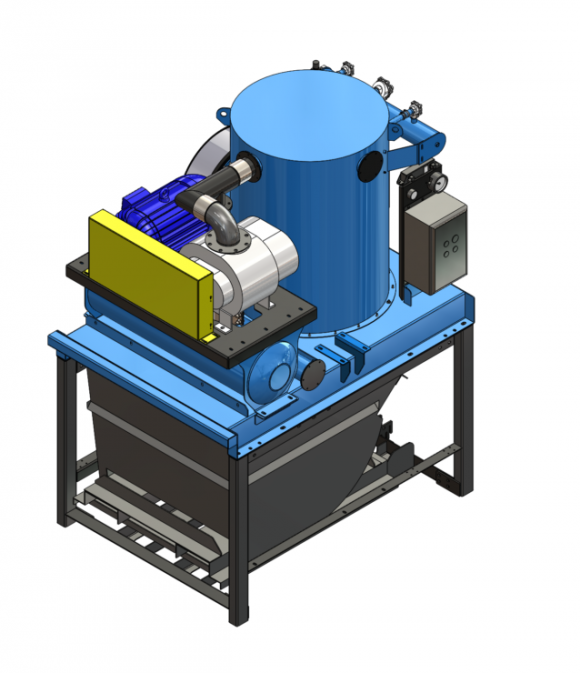

Our industrial line of Bulk Material Vacuum Systems and Bulk Material Handling Vacuums for mass quantity cleaning. Our Powerlift Bulk Material Vacuum System Units come standard with removable storage hoppers with up to 40 Cu.Ft. of storage capacity. Up to 16” HG” of continuous vacuum for mass-quantity removal. Need to move mountains of material?

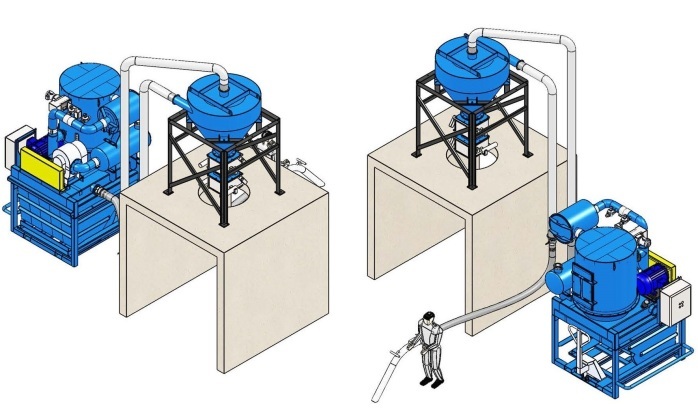

This Powerlift bulk material vacuum system is the unit. Ideal for bulk conveying over long distances.

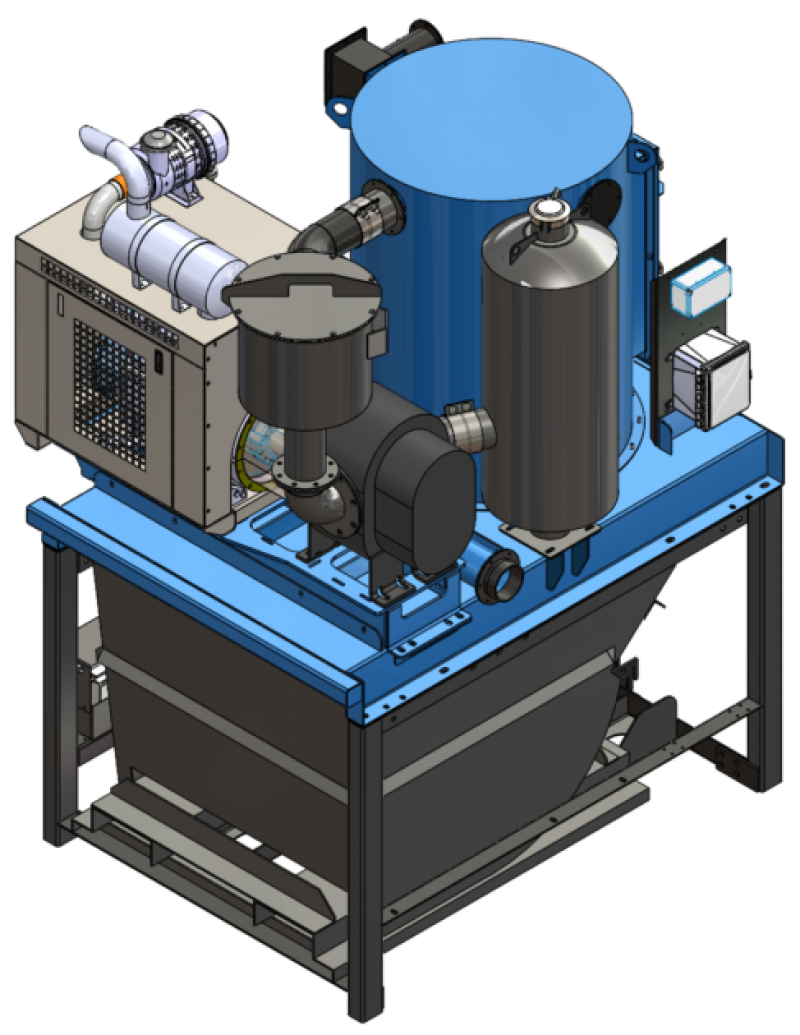

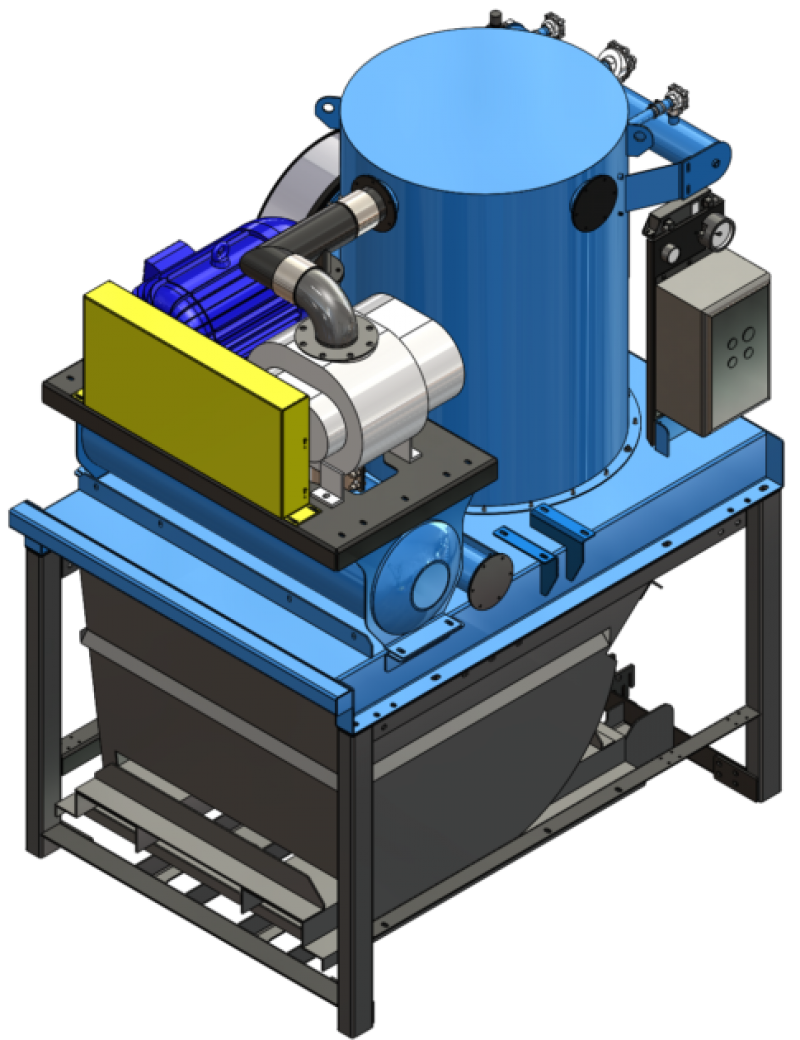

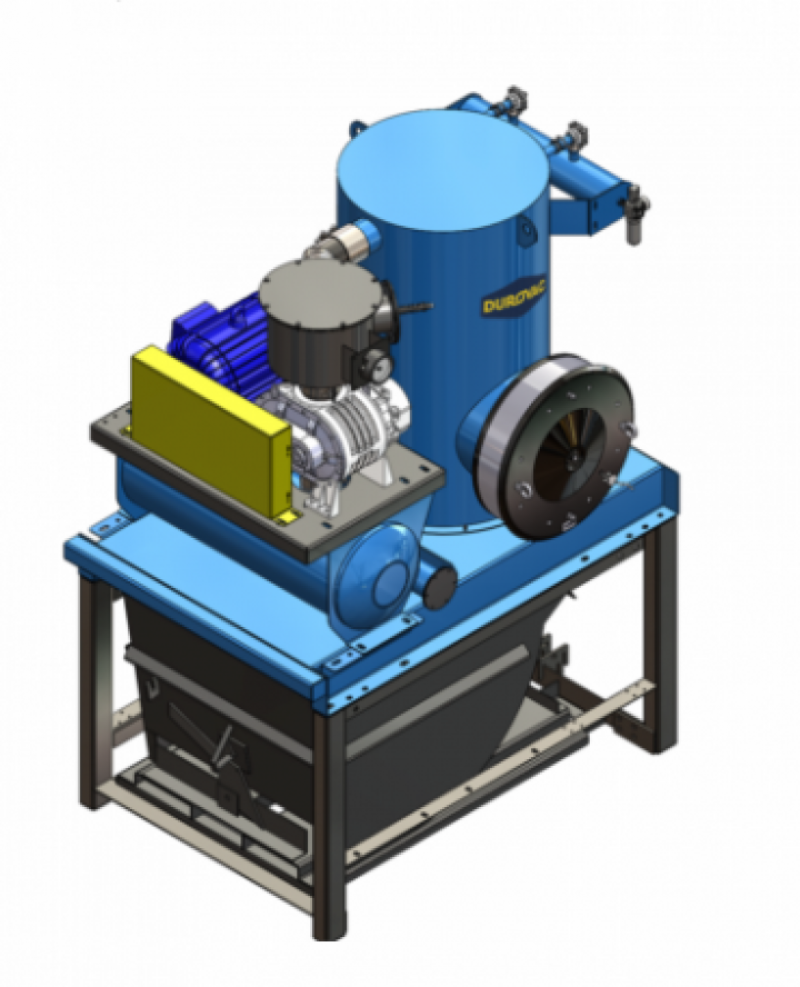

The PowerLift® industrial vacuum offers a wide number of design configurations to meet almost any application requirement. The Powerlift comes in Electric, Diesel or Propane Powered. It is designed for Powerful on-demand bulk vacuuming.
| Model Number | PL20/PL25 | PL30/PL40 | PL50/PL75 |
|---|---|---|---|
| Power HP | 20/25 | 30/40 | 50/75 |
| Number of Hoses | 1 x 2.5" 2 x 2.0" / 1 x 2.5" 2 x 2.0" | 2 x 2.0" (3 x 2.0")2 / 3 x 2.0" | 1 x 5.0" / 1 x 6.0" |
| Performance (TPH)1 | 3.5 / 4.0 | 4.5 / 6.0 | 8.0 / 12.0 |
| Air Flow – Inlet (CFM) | 400/525 | 650/860 | 1050/1550 |
| Vacuum (Maximum) | 16" Hg / 16" Hg | 16" Hg / 16" Hg | 16" Hg / 15" Hg |
| Standard Filter Area (ft2) | 85.5 / 85.0 | 85.5 / 121.0 | 121.0 / 121.0 |
| Pulse Filter Area (ft2) | 120.0 / 120.0 | 120.0 / 210.0 | 210.0 / 300.0 |
| Hopper Volume (Yrd3) | 1.33 / 1.33 | 1.33 / 2.0 | 2.0 / 2.5 |
| Noise Level @ 3ft (dBa) | 85/85 | 85/85 | 85/85 |
| Weight (lbs) | 3350 / 3450 | 3500/4820 | 4900/7250 |
A positive displacement pump moves a fluid by repeatedly enclosing a fixed volume, with the aid of seals or valves, and moving it mechanically through the system. The pumping action is cyclic and can be driven by pistons, screws, gears, lobes, diaphragms or vanes. There are two main types: reciprocating and rotary.
The DVP Vacuums come with TEFC induction motors that are rated for continuous-duty
Yes. The DVP comes with heavy-duty casters for easy movement on a concrete floor. It can also be lifted by a forklift.
Yes. Several customers have reported that their portable PowerLift Diesel is a huge savings over renting costly vacuum trucks.
No problem. We have diesel and propane power.
Yes. We have explosion vents and flame suppression for combustible dust.
We have NEMA 4x / IPA56 panels for weather and dust protection.
Download the VACUUM DESIGN WORKSHEET by clicking THIS-LINK. When it is complete, email it to sales@controlledairdesign.com
