Ducted Portable VOC Extractor XP

The highly porous structure of activated carbon binds odor molecules and pollutants.

Elimination of VOC and Odor with Activated Carbon Extractor

Direct Connection to Extruder Purge for Odor Elimination

We can fit a single 6" or dual 4" Ducting Collars. Flex-duct that then connects to the ducting collar ion one end, and to the connection point where fume is exhausted on the other end.

Once the fume has entered Fume Collector the highly porous structure of activated carbon binds odor molecules and pollutants. This purifies the air and eliminates unpleasant odors. These devices are often combined with a Fiberglass box filter, which can also catch sticky fumes before entering the carbon. HEPA is available for dry applications.

Class I GP D; CLII GP F,G Motor and NEMA 7/9 Starter

Explosion-proof electrical components, and fully non-sparking, grounded non-electrical components are used. All are made in the USA and come with full manufacturers warranty.

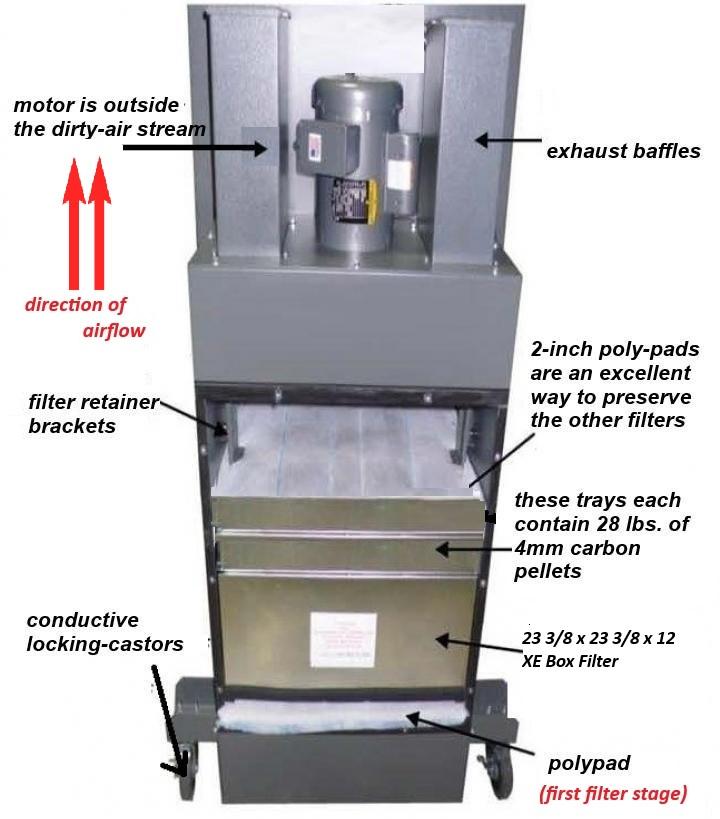

Click here to see the interior air flow and filtration

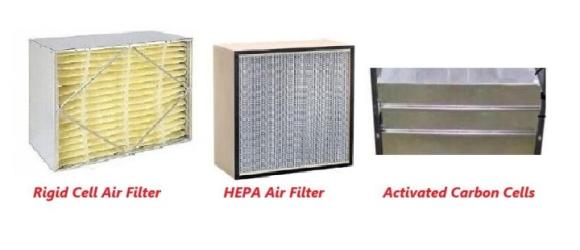

Rigid Box Filter or HEPA

The Rigid Box Filter is a 24" x 24" x 12" Fiberglass Cell that intercepts sticky fume.  Those sticky fumes destroy HEPA and other particulate filters. For dry applications we have 24" x 24" x 12" HEPA Filter.

Unmatched Versatility

On any given day you can take off the back panel and completely change out the the filters. One day it can be used for paint overspray fumes, or as a mist collector. The following day it can be a dry dust collector. You can attach an arm, or a downdraft hood. The unit is modular and incredibly versatile.
