Portable Downdraft with Carbon and HEPA
The Smokart DF is a portable plug and play Downdraft Bench that runs on 120V Single-Phase Power
Smokart DF/G Portable Fume and Dust Collector
welding and light grinding applications
The SMOKART DF/G JET 1.1 is a compact, high-performance portable dust and fume collector designed for welding fume extraction and light grinding applications. Ideal for intermittent use, it captures airborne contaminants directly at the source.
Unlike traditional extractors that need to be positioned nearby, SMOKART integrates a functional suction work surface, allowing operators to perform grinding or welding tasks directly on the unit while capturing dust and fumes in real time.
With airflow capacity up to 1109 CFM, this mobile extraction system delivers powerful performance in an exceptionally compact footprint.
Features:
- Integrated suction work surface
- Airflow up to approx. 1,109 CFM
- Compact and space-saving design
- Easy to move and position (wheeled unit)
- Plug & Play solution, no installation required
- Quick and easy maintenance
Specifications:
| Technical Features | Model Smokart DF/G 1.5 |
|---|---|
| Power | HP | 1.5 |
| Nominal airflow | CFM | 1109 |
| Number of Cartridges | Two: 12.8 in x 15.8 |
| Filtering surface | Sq Ft | 10.9 |
| IFA/BGIA Rating | Polyester |
| Bin capacity | 5.3+7.4 |
| R.P.M. | 3420 |
| Voltage | 120 |
| Hz | 60 |

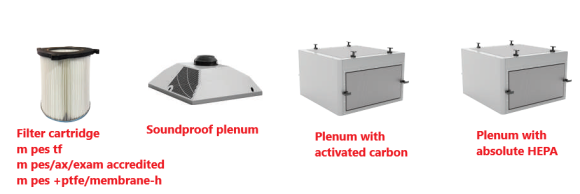

Optional items:
