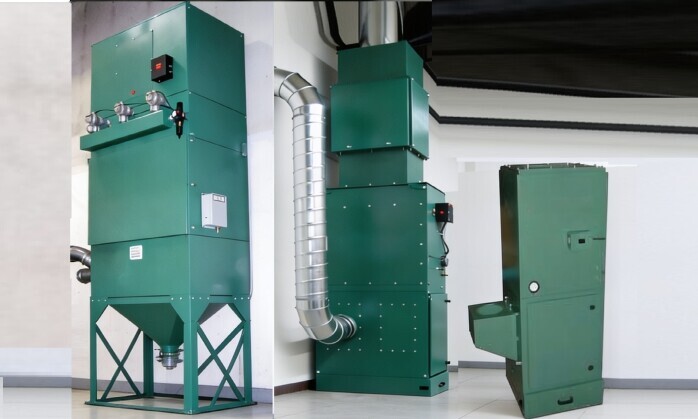

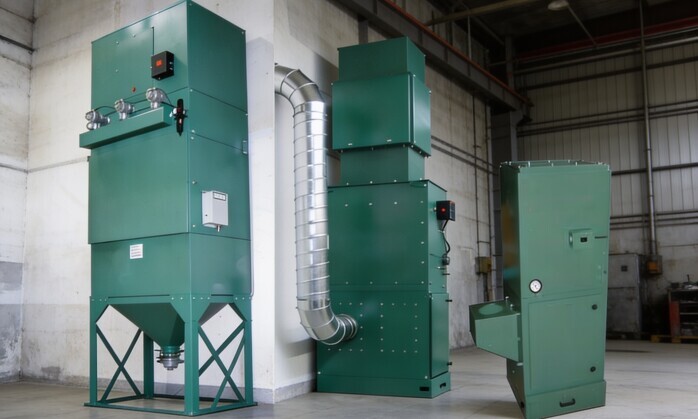

Vertical Cartridge Dust Collectors
The VCF series is either a fume or dust collector and comes in four models. Please click below for more information on each.
Small Footprint AUTO Vertical Dust Collector
VCF-2
The VCF-2 is a fume or dust collector which has two vertical flame retardant cartridges and are cleaned using reverse air pulse using a auto timer or an optional on-demand cleaning control. The VCF-2 has four inlet locations, two on each side of the unit. The VCF-2 is the second in a family of four models, see the VCF-1 for a smaller version
- Filters out dry dust and fume
- High-efficiency cartridges provide 548 square feet of filter that can achieve 99.97% efficiency
- Optional washable spun bond or NANO fiber cartridge filters
- Optional HEPA after filter
- Unique self-cleaning pulse jet systems
- Automatic timer-controlled air pulse cleaning, resulting in low filter maintenance
- Filter pressure gauge indicates when to change filters
- Low noise level below 70 dBA
- Small footprint of 36.75 inches by 24.5 inches compared to the competition
- Overall height, including a dust drawer, is 84 inches
- Standard is a removable dust drawer, option is a hopper with an adjustable stand for a 5-, 30-or 55-gallon pail or drum
- Constructed with heavy 14-gauge metal, assuring extensive durability
- Heavy textured powder coat paint finish for durability
- The distinct clamping mechanism allows for a simple tool-less filter change
- Non-overloading direct drive blower, powered by a 3 HP motor, delivers 1500CFM
- Four options for inlet locations, utilizing plenum boxes, eliminate 90-degree elbows and simplify ductwork installation

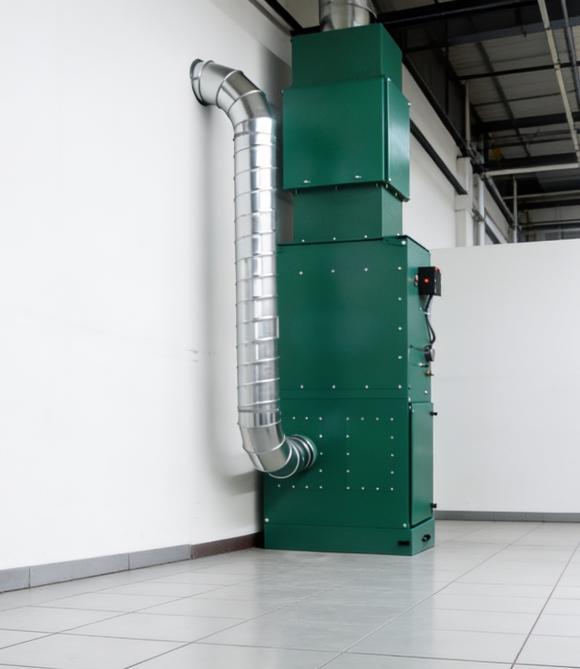

Carbon Cell for VOC and Odor

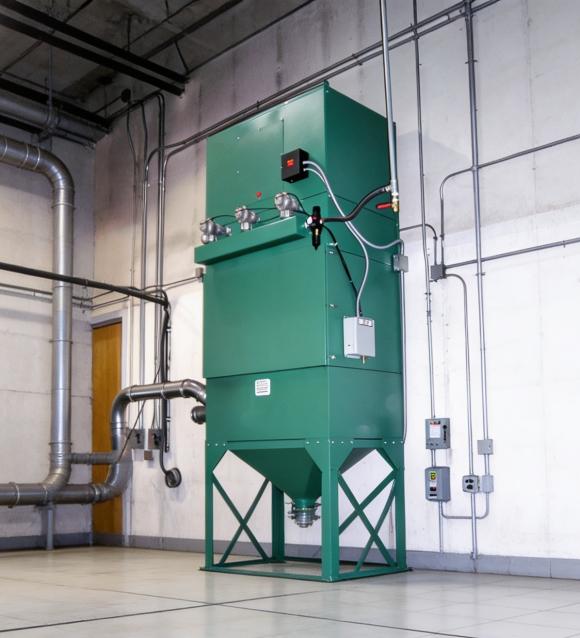

VCF-4 and 6
The VCF-4 and VCF-6 are heavy-duty vertical cartridge dust and fume collectors manufactured by AER Control Systems and distributed by partners such as Controlled Air Design. Designed for industrial and commercial applications, these self-cleaning collectors effectively capture and filter airborne contaminants generated by welding, sanding, grinding, finishing, and the processing of flammable metals. Their vertical cartridge design provides high filtration efficiency, extended filter life, and reliable performance in demanding dust and fume extraction environments. Airflow capacities range from approximately 2,000 to 5,000 CFM depending on the model and configuration
- Airflows range from 2000 to 5000 CFM depending on unit size and motor horsepower
- 99% filter efficiency at 0.5 microns
- 1,096 total square feet of filter for the VCF-4 and 1644 total square feet of filter for the VCF-6
- Direct drive backward inclined airfoil nonoverloading fan
- Automatic timer or on-demand filter cleaning system
- Magnehelic filter change-out guage
- HEPA after-filter option
- Floor stand and hopper for 55 gallon drum
- 11- and 14-guage heavy duty metal construction
- Kelly Green industrial textured powder coat finish
- Optional timer controls such as Smart Pulse with downtime cleaning
- Filter options to include Spun bond, NANO Fiber or hydrooleophobic
- Dust drawer
