Heavy Duty Rubber Hose | Full Vacuum Capable

TR1

In the context of vacuum measurement using inches of mercury (inHg), a "full vacuum" is typically defined as 29.92 inHg

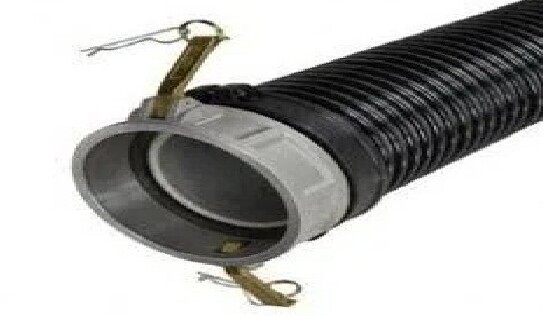

HD Rubber Hose with Camlocks

Custom Sizes Available

Custom Sizes Available. Cam and groove couplings, also known as camlock fittings or quick connect fittings, are widely used across industries to prevent leaks in hose connections.

The cam lock style is popular because it offers a simple and cost-effective way to reconnect and disconnect hoses.

Type E adapters are normally used with Type C couplers, but can be used with Type B and D couplers or Type DC (Dust Cap) of identical size. Polished Hose Barb, for easy hose connection.

Specifications

NOMINAL SIZE (inch) Vacuum Rating (in/Hg) Rec Min Bend Radius @ 72° F (inch) Approx Weight (lbs/ft)
1-1/2 28 3 38
2 28 4 54
2-1/2 28 5 77
3 28 6 1.05
3-1/2 28 8 1.25
4 28 8 1.68
5 28 9 2.40
6 28 12 3.18
8 28 16 5.73

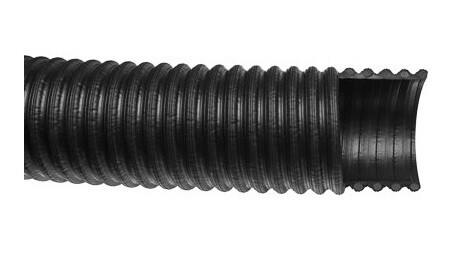

APPEARANCE / CONSTRUCTION: Corrugated Rubber Suction Hose
BENEFITS: Rubber tube with black PVC helix
Smooth cover and interior
GENERAL APPLICATIONS: Material handling
Water/light chemical suction and transfer
Transferring moderate abrasives
TEMPERATURE RANGE: 30F to +140F
