Continuous Duty Vacuums for Class II, Division 2
Vacuums for All-Day Running with Side-Channel Regenerative Motor and Blower
Jump To:

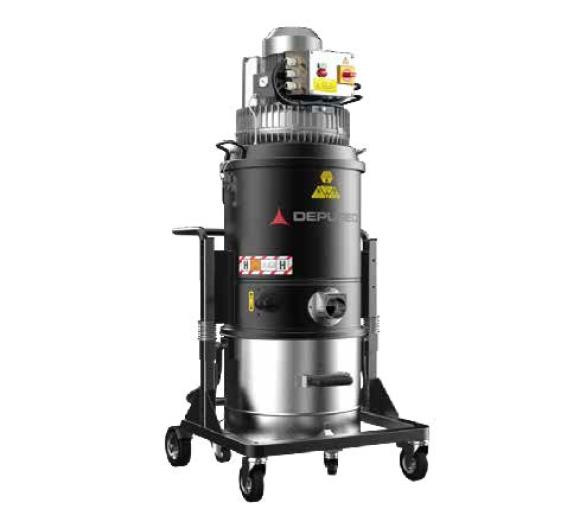

Ecobull C2D2
HAZARDOUS LOCATIONS CLASS II DIVISION 2
The ECOBULL CLASS II DIVISION 2 industrial vacuum features a 2.2 HP side channel turbine, making it ideal for continuous operation without requiring frequent maintenance. Its filter chamber boasts a generously sized polyester filter with a surface area of 3720.01 in2. This filter is certified as M Class, ensuring an efficient filtration efficiency of 1 micron, which is perfect for handling even the finest dust particles.
Practicality is enhanced by the Ecobull industrial vacuum’s large detachable container, available in size of 26 gal, equipped with wheels for easy material disposal. For added convenience, disposable collection bags can be utilized. A floating system can be integrated into the container to ensure safety during liquid suction.
Ecobull Specifications:
| Units | ECOBULL Class 2 Div 2 | |
|---|---|---|
| Maximum air flow | CFM | 247 |
| Vacuum in continuous use | inH2O | 108 |
| Power | HP | 4.6 |
| Inlet | Inches | 2.75 Ø |
| Dims | Inches | 25.98 x 31.50 X 60.24 H |
| Weight | lbs. | 209 |

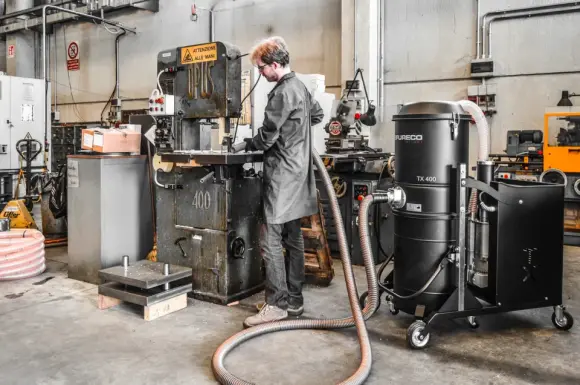

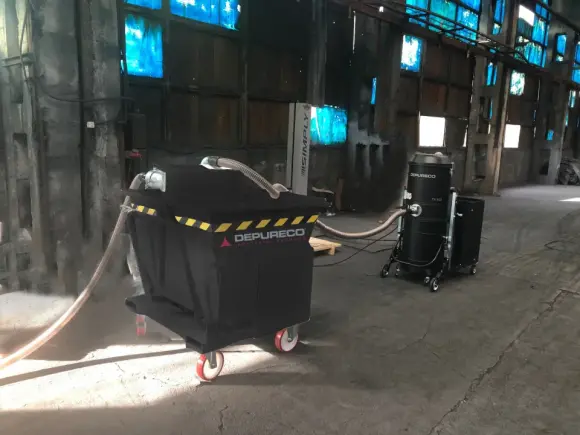

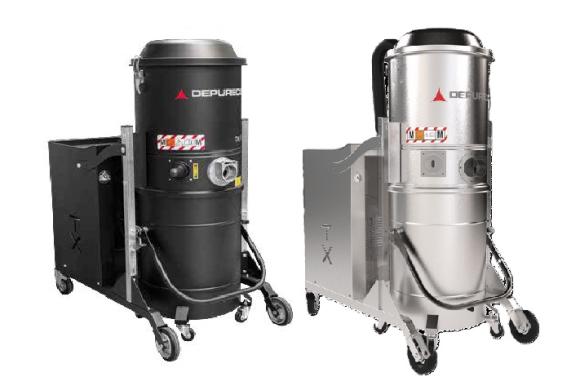

TX C2D2
HAZARDOUS LOCATIONS CLASS II DIVISION 2
The TX Industrial Vacuum delivers exceptional power, maneuverability, and a compact design. With a robust side channel turbine, it ensures continuous operation with minimal maintenance. The large M Class-certified polyester filter effectively captures dust particles down to 1 micron.
This vacuum supports various professional applications with options for Teflon water-repellent filters, Nomex filters resistant to temperatures up to 482°F, and PTFE-treated filters for enhanced dust binding. An optional H14 absolute filter is also available.
TX Range Specifications:
| TX 300 | TX 400P / 400S | TX 550P | TX 750 |
|---|---|---|---|
| 4.6HP | 6.2HP/6.5HP | 8.4HP | 11.5HP |
| 460V /60 | 460V /60 | 460V /60 | 460V /60 |
| 300 CFM | 350 /180 CFM | 382 CFM | 382 CFM |
| 110 inH2O | 60/160 inH2O | 112 inH2O | 169 inH2O |
| 2.8 in inlet | 2.8 in inlet | 2.8 in inlet | 2.8 in inlet |
| 5890 in sq M Class filter | 5890 in sq M Class filter | 5890 in sq M Class filter | 5890 in sq M Class filter |
| 26 gallon bin | 26 gallon bin | 26 gallon bin | 26 gallon bin |

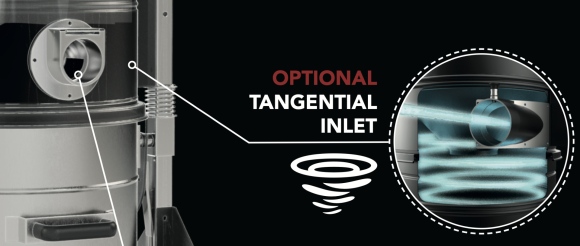

New for 2026 - Tangential Inlet
The tangential inlet is the new inlet that replaces the center inlet. It better protects the filter because it is integrated into a metal cone that directs the material downward into the bin, significantly reducing wear on the filter.
Remote Options and PLC
In addition to 3rd party certification, the Ecobull and TX Range also offers full PLC, 24V DC or 120V AC, and AUTO Filter Clean options. We can offer a PLC that is fully compatible with your system.
Continuous-Duty - Compact
The Depureco TB Compact has a small footprint making it ideal for tight spaces. It's regenerative side-channel motor and blower make it perfect for all day continuous use. The M Class polyester filter is efficient down to 1 micron and has a very large surface area.
The bag filter is made from polyester and it can be washed and reused. We always have parts and spares on hand in case you need anything in a hurry.
Antistatic M class filter Certified (EN-60335-2-69), 3 Polyester filter cartridges, 9 m2 filter surface. For each filter there is an independent electro valve for the reverse jet cleaning.
TB UP - Cart Style
The TB UP with TEFC motor features a portable design that places the motor on a cart instead of on top of the filter chamber. It uses the same side channel regenerative motor blower for continuous operation.
Disposable collection bags are also available for added convenience.
Additionally, a floating system can be incorporated into the container to safely vacuum liquids.
The all-day duty TB UP is a durable industrial vacuum built to last. Parts and filters are just a phone call away.
Click HERE to see Accessories.
Click HERE to see Material Separators.

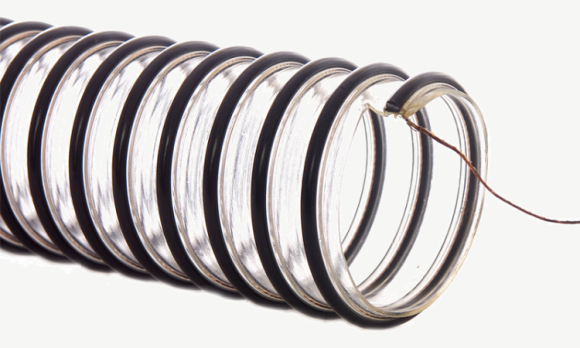

Non-sparking tools and hoses available
| TB 18 M | TB22 | |
|---|---|---|
| Power HP | 2 | 3.42 |
| Voltage Frequency | 120/1/60 and 460/3/60 | 120/1/60 and 460/3/60 |
| Max Airflow CFM | 130 @ 85 inH2O | 200 @ 85 inH2O |
| Inlet | 2.75" | 2.75" |
| Filter Area Inches Sq | 2325 | 2325 |
| Filter Efficiency | M CLASS (1μ) | M CLASS (1μ) |
| Capacity in Gallons | 12 | 12 |
| Stainless Option (Bin and Chamber) | Yes | Yes |
| Grounding Option | Yes | Yes |
| Noise Level dB(A) | 74 | 72 |
| Filter Media | Fiberglass | Fiberglass |
| Dimensions | 21.65 x 24.41 | 21.65 x 35.43 |
| Height in | 53.27 | 44.09 |
| Weight lbs. | 110 | 121 |
