Industrial Vacuum SP Auto Cleaning System
Automatic Smart Pulse Cartridge Filter System
Jump To:

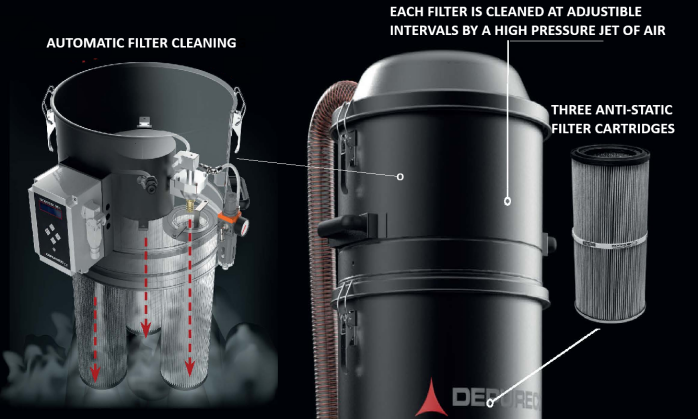

Each filter cartridge is cleaned at adjustable intervals by a high-pressure (6 bar) air jet, which shakes the cartridge, dislodging large amounts of material from the filter, making it completely clean in a matter of seconds. It requires compressed air to operate.
Fully Automatic Cartridge System
Fully Automated PLC and SP Industrial Vacuums
Automatic reverse jet cleaning system. Antistatic M class filter (EN-60335-2-69), 3 Polyester filter cartridges, 9 m2 filter surface. Ideal for automated production. PLC is available to match your company PLC System.

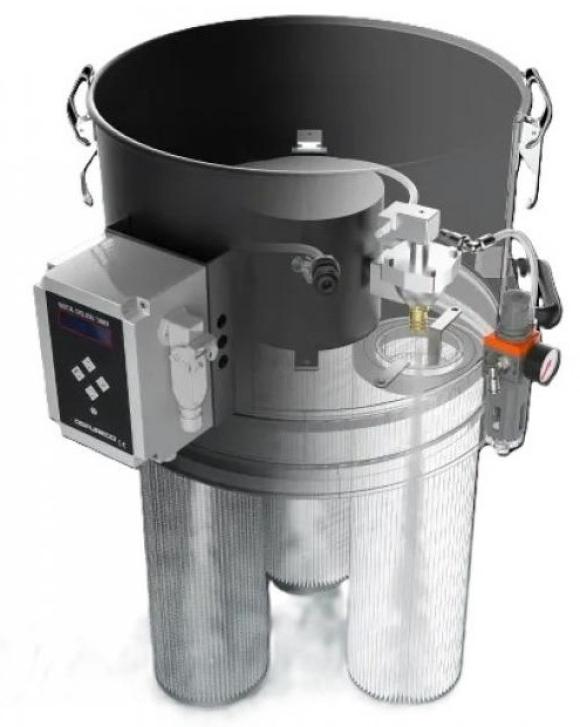

Each filter cartridge is cleaned, one-at-a-time, at adjustable intervals by a high-pressure (6 bar) air jet, which shakes the cartridge, dislodging large amounts of material from the filter, making it completely clean in a matter of seconds. It requires compressed air to operate. Ideal where high quantities of dust are being vacuumed. Ideal for robotic cell applications. We can customize the SP and PLC Systems to your specifications.
Each Filter is Cleaned Individually at Adjustable Intervals
Connect an Airline and the Rest is Automatic

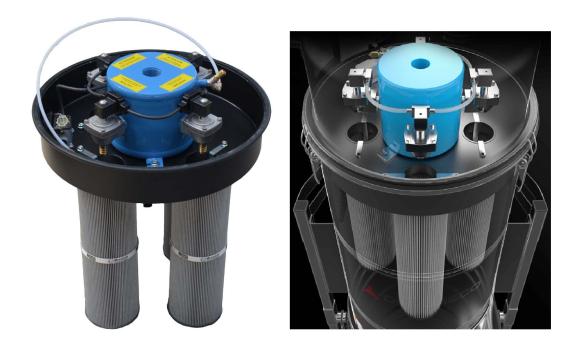

Automatic reverse jet cleaning system. Antistatic M class filter certified (EN-60335-2-69), with 3 polyester filter cartridges and a 9 m² filter surface. Each filter has an independent electro valve for reverse jet cleaning, allowing one cartridge to be cleaned at a time while the other two remain operational. This method provides more effective cleaning and helps preserve the lifespan of the other two cartridges.
High Power Industrial Vacuums Compatible with the SP and Spark Trap Systems

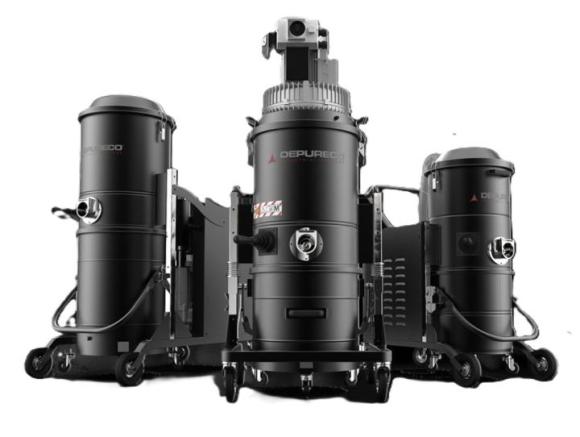

The TX Industrial Vacuum delivers exceptional power, maneuverability, and a compact design. It can be ordered with the statndard manual filter-shaker, or with the fully automatic SP system. With a robust side channel turbine, it ensures continuous operation with minimal maintenance. The large M Class-certified polyester filter effectively captures dust particles down to 1 micron.
This vacuum supports various professional applications with options for Teflon water-repellent filters, Nomex filters resistant to temperatures up to 482°F, and PTFE-treated filters for enhanced dust binding. An optional H14 absolute filter is also available.
Continuous Duty Fully Automatic
