Quiet ≤ 72 dB — clean between relays without disruption
Brass-friendly inlet — Ø 2.75 in tangential intake reduces clogs
Airflow: 129 CFM Vacuum: 92 in H₂O
Power: 120 V single-phase (brushless head)
Container: 11-gal AISI 304 stainless bin
Weight: ~99 lb Noise: ≤ 72 dB
Specifications:
Motor
Primary Filter
Machine
Motors | Type Brushless Motor
Filter Type Cartridge
Dimensions 20.32x21.46 in
Voltage | Frequency 120|60 V|Hz
Class EN 60335-2-69 M class
Height 41.33 in
Maximum Vacuum 92 inH2O
Media Antistatic Polyester
Weight 83.78 lbs.
Maximum Air Flow 129 CFM
Filter Cleaning System Jet Clean®
Bin Capacity11 gal
Noise Level-(EN ISO 3744) 72 dB(A)
Surface Area 5,270 in²
Power 1.5 HP
Spark-Safe Filter
Vacuum Continuous use 92 inH2O
Inlet 2 Ø in
UL Certified. Safety US CA E54800 and Compliant to NFPA 660, NFPA 79, UL 2011, UL 508A, CSA C22.2
Fully static-dissipating and grounded design. Safe for XP powders in ORDLOC, or Ordinary Locations.
M100 High Power
Optional - Front Sweeper attachment
The M100H meets all of the February 2025 NFPA 660 build criteria for safe vacuuming of ST1 XP powders in ORDLOC.
Featuring 336 cfm from 120V | 72 dB(A) means the M100 will rapidly clean your range and you will barely notice it is there. By far the most powerful range vac that plugs into a single phase 120V drop.
A range of filtration is available depending on how versatile you need the vacuum to be, and a HEPA after-filter for toxic dusts like lead. Primary filter surface area is 3,700 sq in and there is also a HEPA after-filter. The M100 actually doubles as a HEPA air-cleaner.
Fully compliant with NEC 70 and OSHA Standards for XP Dust in ordinary locations.

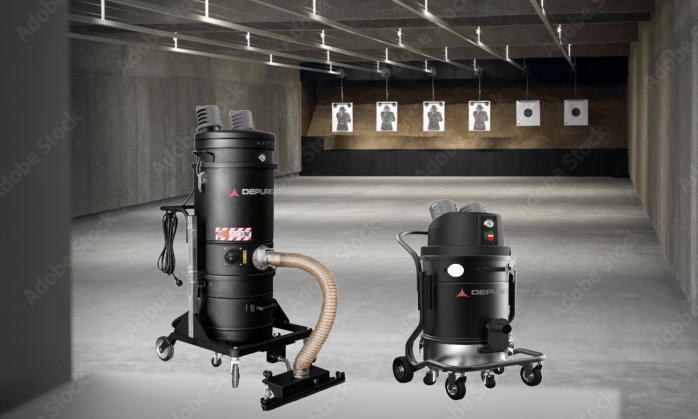

Walk-Behind Sweeper Vac for XP Dust
Can be set up as a walk-behind sweeper vac for XP dust by attaching the front floor-sweep attachment. If used correctly, it can clean XP dust from 50k sq ft in one hour! We also have overhead static-conductive hoses and tools that can reach 30 ft in the air to clean pipes and ducts.
HD Floor 24" Static-Dissipating Floor Sweep
Gun Range Floor Sweeper - Clean 50k sq ft in 45 mins.
Click Here for Features
An M class polyester filter ensures efficient filtration in the vacuum cleaner. Its unique star-shaped design allows air to pass through the filter even when it becomes dirty. The filter fabric is classified as M Class (BIA | EN 60335-2-69), which signifies that it effectively traps particles up to 1 micron in size. This protects both the motors and the operator from harmful particles in the vicinity of the vacuum cleaner.
Three by-pass motors create the suction power in the vacuum cleaner. Each motor can be controlled individually using a separate switch, allowing the operator to adjust the intake performance. The motors are housed in a robust casing, equipped with a sound-absorbing sponge to ensure minimal noise.
The collected material is stored in a painted container that features a metal handle, allowing for easy detachment from the machine. With the assistance of its four swiveling wheels, the bin can be effortlessly maneuvered and emptied. Each wheel is reinforced to ensure optimal stability while handling the bin.
Located on one side of the filter chamber, an ergonomic manual shaker provides a convenient means for the operator to swiftly and effectively clean the filter. By utilizing this intelligent cleaning system, the operator can easily remove dust and debris from the filter's surface, ensuring continued functionality without the need to replace or wash the filter. This enables uninterrupted work efficiency for the operator.

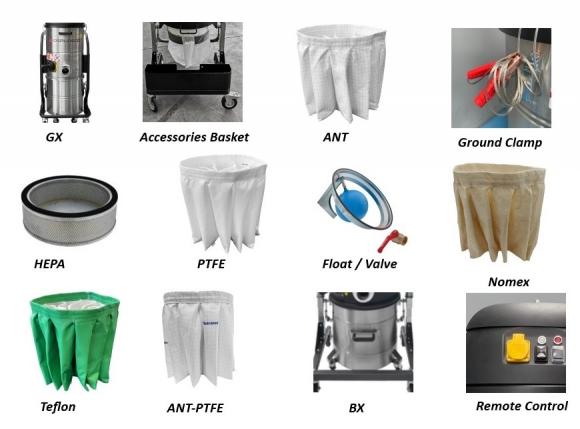

Click here to see some of the optional items for the M100
Where do I find spare parts and accessories?
Call (800) 635-0298 for parts and spares
Do you sell static-conductive vacuum hose by the roll?
Yes. The STATMAX Conductive Hose can be cut to custom lengths with Chop-Saw. It's Surface Resistivity Level: 103 - 105 Ohms/Square
