POLIJET - Heavy-Duty Grinding & Welding Downdraft Bench
Coral IPERJET DF is ideal for extracting welding fumes from all-day robotic welding and laser cutting applications. Returns clean breathable air into work space.

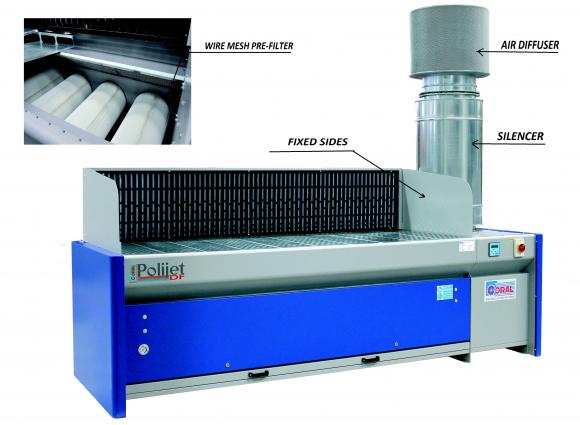

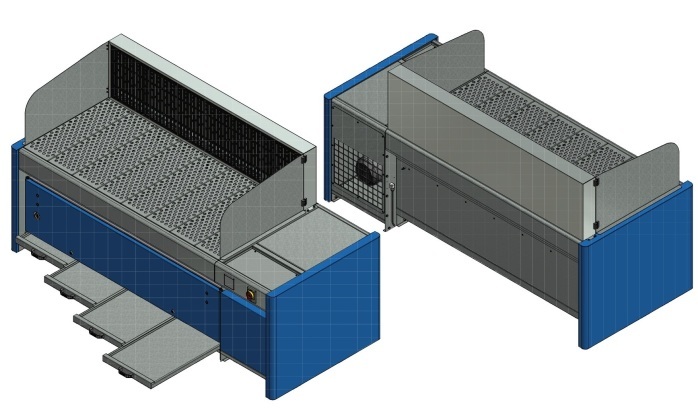

The Coral DOWNDRAFT TABLE is a welding and grinding workstation with an integrated extraction system designed to capture the polluted air and collect the dust directly at source. Proper selection of the product is based on the air flow. The number of cartridges is in fact determined by the volumes of air extracted from the top and the front wall. As a result, the Coral DOWNDRAFT TABLE is designed to ensure a higher efficiency and less filter replacements. Finally, the horizontal cartridges allow an easy and fast maintenance. The robust construction of the table is designed to support heavy workloads.
Click HERE to see specifications

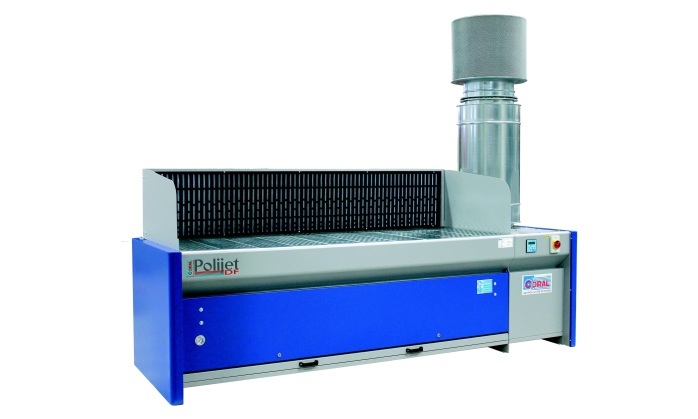

The Coral POLIJET DF downdraft table is an ideal solution for the extraction of dust and fumes generated from local bench top grinding, welding, sanding and finishing operations typically found in the following industries…wood, marble, metalworking, foundries, and more. , Featuring FR filter cartridges which are capable of filtering particle sizes down to approximately 0.2 - 2 microns, our filtering efficiency is rated at 99,9%.
Dimensions
| POLIJET DF 1500 | POLIJET DF 2000 | POLIJET DF 2500 | |
|---|---|---|---|
| Height (A) | 55.5” | 55.5” | 55.5” |
| Width (B) | 86.3” | 106” | 125.7” |
| Depth (C) | 44” | 44” | 44” |
| Polluted air inlet (ExD) | 59” x 37” | 78” x 37” | 98” x 37” |
| Clean air output | Ø17.7” | Ø17.7” | Ø17.7” |
Performance
| POLIJET DF 1500 | POLIJET DF 2000 | POLIJET DF 2500 | |
|---|---|---|---|
| Power [HP] | 4 | 5.5 | 7.5 |
| Power supply voltage 3Ph [V] | 440 | 440 | 440 |
| Frequency [Hz] | 60 | 60 | 60 |
| Motor phase [Ph] | 3 | 3 | 3 |
| RPM | 3450 | 3450 | 3450 |
| Max flow rate [cfm] | 2950 | 4000 | 4710 |
| No. of collection drawers | 3 | 4 | 5 |
| Drawer storage capacity [Gal] | 10.3 | 13.7 | 17.2 |
| Weight Lbs. | 925 | 1124 | 1344 |
