Ambient Dust Collector for XP Dust
The AER POD is a practical solution in production spaces where airborne dust and odor is a problem
Anti-Static Portable Ambient Dust and VOC Purification

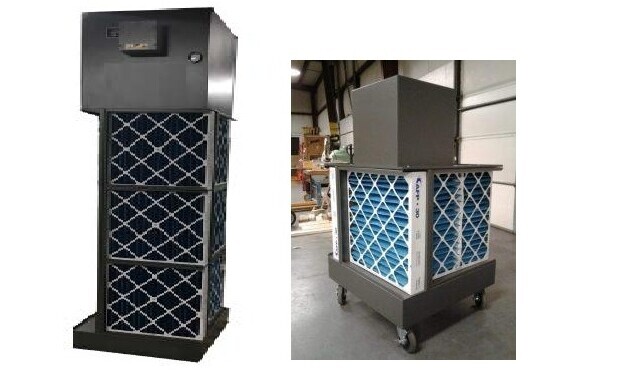

The AER POD | 360 Degree Intake
AER PODs are designed for ambient filtration of dust, fumes, smoke, and odors. They provide efficient, cost-effective control of ambient dust contaminants from various manufacturing and processing applications.
Ideal for areas with limited floor space, where a unit with a collection arm may not fit. One or two AER POD units can be strategically placed according to where they are needed pulling dust from four sides.
The motor is positioned out of the dirty air stream. The dirty air volume is less than 8 cu ft, making it a good solution for low KST food dust.
The AER PODs come standard with powder-coated, welded steel construction and feature either a forward-curved, unbaffled blower or a direct-drive, non-sparking blower with baffled discharge and a TEFC motor.
XP Dust Collector for Food Dust in ORDLOC
The AER POD draws in pollutants from all four-sides. We can calculate air-changes-per hour (ACH) if you tell us what the dust is, and the dimensions of the room. We can mathematically demonstrate how clean your air will be by showing you the calculations.
Activated Carbon Cell is available for Odors
A 2x24x24 inch Refillable empty Carbon tray fits into each of the four filter walls. Each tray can take 28 lbs. of 4mm activated carbon, potassium permanganate, or coconut shell pellets. Or a combination of different absorption medias. We use the SDS for the vapor to determine the filtration selection.
Filtration Options:
- MERV 10, 4x24x24 Fiberglass Pleat
- MERV 11, 6x24x24 Synthetic Box
- MERV 17, 4x24x24 Metal HEPA
- MERV 17, 4x24x24 Wood HEPA
- MERV 17, 3x24x24 Wood HEPA
- 3" x 24" x 24" Refillable Carbon Panel, No Carbon
- 2x24x24 Refillable empty Carbon tray
- 28 lb bag of carbon for carbon tray 1044-38
Features:
- Airflows range from 2000 to 6000 CFM depending on the number and type of filters and application. Heavy duty powder coated welded steel construction.
- Non-sparking blower with baffled exhaust separating motor from exhaust airstream.
- Un-baffled exhaust for non-flammable applications Power cord and switch on portable units
- Starters with cords on three phase motors
- Filter pressure drop gauge.
Specifications:
| Model | CFM | HP | LxWxH (in.) |
|---|---|---|---|
| POD 1 | 2000/3300 | 3/4 / 1.5 | 31x31x60* |
| POD 2 | 3200/6000 | 1.5/3.0 | 31x31x84* |
| POD 3 | 3200/6000 | 1.5/3.0 | 31x31x102 |
*these units accept casters
