WELDING FUMES TORCH-EXTRACTOR | IDEAL FOR WELDING SCHOOLS

xmt

The XM Torch provides automatic suction of fumes from the torch as soon as you start welding.

EXTRACTION OF WELDING FUMES FROM TORCH

Better filtration than expensive welding booths - Ideal for schools and colleges

XM TORCH

XM TORCH
XM TORCH

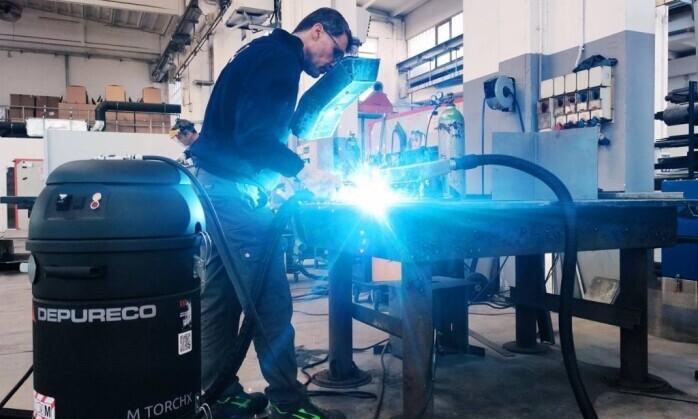

Automatic fume extraction from welding torch happens as soon as you start welding. A small diameter hose connects to the welding torch and immediately starts sucking the fumes away from the torch.

This vacuum cleaner is specifically designed for this purpose. It features one or two powerful By-Pass motors and the control of this industrial vacuum cleaner is seamlessly integrated with the welding machine itself. To ensure safety and efficiency, a sophisticated sensor is strategically positioned on the vacuum cleaner to detect the flow of current in the ground cable, which is attached to a special clip.

The XM Torch industrial vacuum cleaner is equipped with a cellulose filter, ensuring the filtration of welding fumes while maintaining a high level of safety. Additionally, upon request, an H14 filter can be installed for even more advanced filtration capabilities.

Click HERE to see XM TORCH BROCHURE

Plus (click or tap to expand) + Features

  • 1.3~2.7 HP
  • 5,500 in sq of filter
  • 6 gallon capacity

HEPA Filtered for elimination of hexavalent-chromium particulate from welding smoke

Elimination of hexavalent-chromium particulate from welding is crucial for the well being of anyone within the vicinity. Hex-chrome can occur from welding processes and it is a very dangerous fume when not captured and filtered properly.  How it is captured is crucial. Overtime many companies have come to rely on torch extractors like the XM Torch for reliability and safety. .

Specifications:

XM TORCH 1M XM TORCH 2M
Motors | Type 1 By-pass 2 By-pass
Voltage | Frequency 120/60 V|Hz 120/60 V|Hz
Maximum vacuum 94 inH2O 94 inH2O
Maximum air flow 115 CFM 230 CFM
Noise level-(EN ISO 3744) 72 dB(A) 72 dB(A)
Power 1.3 ∣ 1∼ HP 2.7 HP
Inlet 2' 2"
Manual controller included included
Dims 21 X 18.5 in X 39" 21 X 18.5 in X39"
Weight 79 lbs. 84 lbs.
