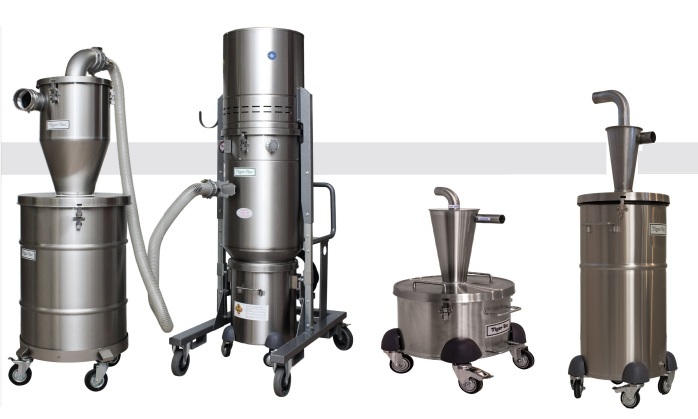

Vacuum inline separation systems

11111

Vacuum Separator is a storage device that attaches to your vacuum and becomes the hopper. A good separation system will greatly prolong the life of filters, and provide an easy disposal solution.

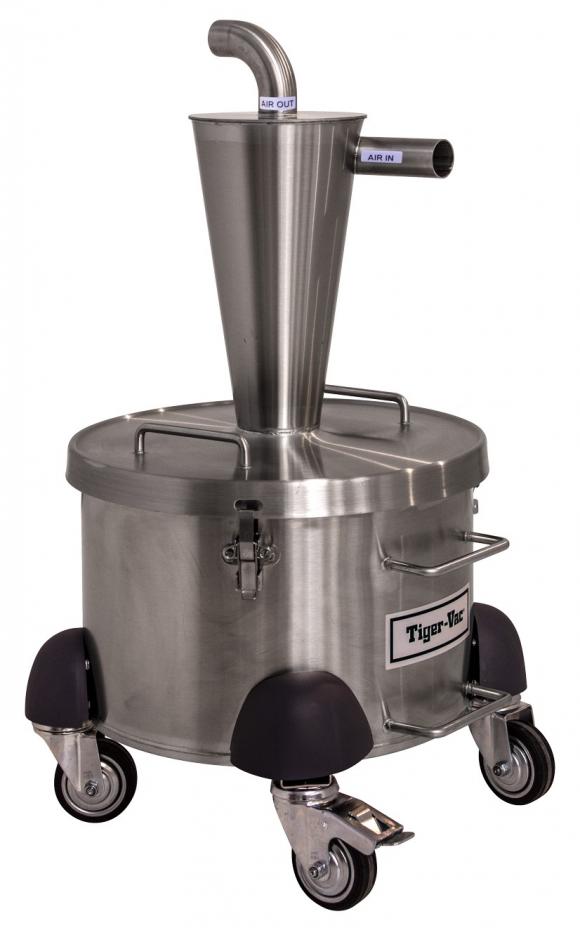

HEC-25L - 6.5 Gallon

HEC6.5
Tiger-Vac® HEC-25L

Designed for use in : Division 1, Class I, Groups A, B, C, and D. Division 1, Class II, Groups E, F, G. Hazardous Locations as defined in the National Electrical Code (NFPA 70)

Features:

  • High Efficiency Cyclone (HEC). Pre-separation system for fine dust using the cyclone for inertial separation
  • High quality SAE 304 stainless steel construction and compatible with the Pharmaceutical and Food industries
  • Suction and connection hoses for the Pharmaceutical and Food industries are available
  • Recovery capacity of 6.5 gal. (25L)
  • This mobile separation system is assembled on a 4-wheel cart (4W) and has been designed for the pharmaceutical and food industries
  • We have designed this pre-separator unit to be used in hazardous locations for Class II, Division 1, Groups F & G (flour dust, rubber plastics, etc.) as per Nationally Recognized Testing Laboratories (NRTL) and must be used in conjunction with certified equipment

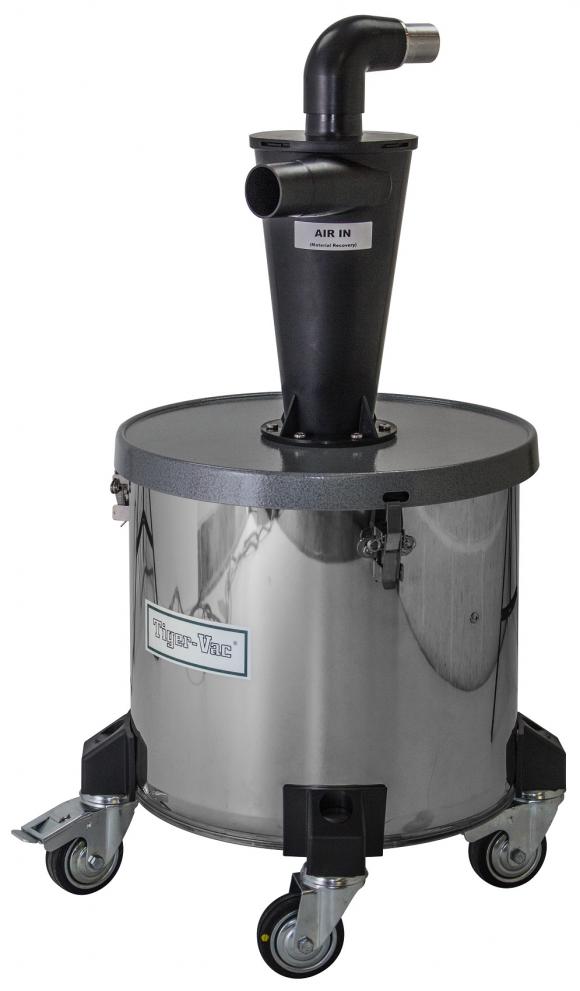

HEC-35L (4W) - 9.3 Gallon

HEC35L
Tiger-Vac® HEC-35L (4W)

Designed for use in : Division 1, Class I, Groups A, B, C, and D. Division 1, Class II, Groups E, F, G. Hazardous Locations as defined in the National Electrical Code (NFPA 70)

Features:

  • High Efficiency Cyclone (HEC). Pre-separation system for fine dust using the cyclone for inertial separation
  • Air outlet is 1.5" (38 mm)
  • The suction inlet is 2" (50 mm) in diameter
  • Heavy duty construction. Static dissipative and grounded
  • Cyclone is made of conductive plastic. Recovery tank is made of stainless steel SAE 430
  • Recovery capacity of 9 gal. (35L)
  • A conductive poly liner recovery bag is included to facilitate emptying of recovered materials
  • This compact separation system is mounted on 4 conductive wheels for maximum maneuverability

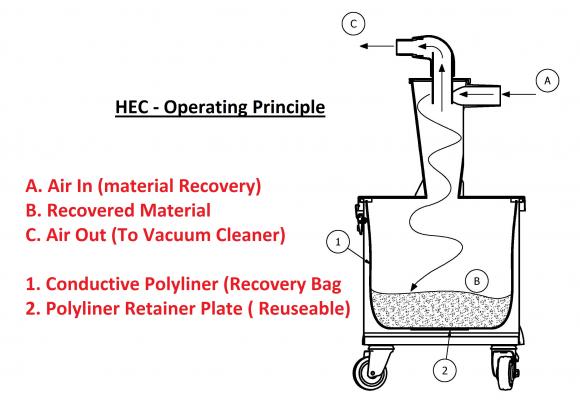

HEC Operating Principle

Operating Principle
The cyclonic design of the transfer lid forces fines down into the collection hopper that can be easily lined with a conductive poly bag for easy recovery.

HEC-85L (4W) STAINLESS STEEL - 22.5 Gallon

HEC85L
Tiger-Vac® HEC-85L (4W) STAINLESS STEEL

Designed for use in : Division 1, Class I, Groups A, B, C, and D. Division 1, Class II, Groups E, F, G. Hazardous Locations as defined in the National Electrical Code (NFPA 70)

Features:

  • High Efficiency Cyclone (HEC). Pre-separation system for fine dust using the cyclone for inertial separation
  • High quality SAE 304 stainless steel construction and compatible with the Pharmaceutical and Food industries
  • Suction and connection hoses for the Pharmaceutical and Food industries are available
  • Recovery capacity of 22 gal. (85L). Other recovery capacities are available
  • This mobile separation system is assembled on a 4-wheel cart (4W) and has been designed for the pharmaceutical and food industries
  • We have designed this pre-separator unit to be used in hazardous locations for Class II, Division 1, Groups F & G (flour dust, rubber plastics, etc.) as per Nationally Recognized Testing Laboratories (NRTL) and must be used in conjunction with certified equipment

HEC-100L (4W) STAINLESS STEEL - 26.4 Gallon Stainless

HEC100L
Tiger-Vac® HEC264SS

Designed for use in : Division 1, Class I, Groups A, B, C, and D. Division 1, Class II, Groups E, F, G. Hazardous Locations as defined in the National Electrical Code (NFPA 70)

Features:

  • High Efficiency Cyclone (HEC). Pre-separation system for fine dust using the cyclone for inertial separation
  • The HEC can be powered by either a low pressure or high pressure vacuum/dust collector blower
  • High quality SAE 304 stainless steel construction and compatible with the Pharmaceutical and Food industries
  • Suction and connection hoses for the Pharmaceutical and Food industries are available
  • Recovery capacity of 26 gal. (100L). Other recovery capacities are available
  • This mobile separation system is assembled on a 4-wheel cart (4W) and has been designed for the pharmaceutical and food industries
  • We have designed this pre-separator unit to be used in hazardous locations for Class II, Division 1, Groups F & G (flour dust, rubber plastics, etc.) as per Nationally Recognized Testing Laboratories (NRTL) and must be used in conjunction with certified equipment

HEC-200L (4W) POWDER COATED

HEC200L
Tiger-Vac® HEC-200L (4W) POWDER COATED

The HEC 53 Gallon Powder Coat is a pre-separation system for fine dust in a ORDLOC, or non-NFPA Hazardous Location.  It comes with a 4-wheel cart dolly.

The cyclonic lid can be purchased separately if you wish to use your own 55 gallon drum.

Features:

  • High Efficiency Cyclone (HEC). Pre-separation system for fine dust using the cyclone for inertial separation
  • The suction inlet is Ø70 mm. The outlet (elbow) which connects to the vacuum producer is 3" OD
  • Heavy duty powder coated steel construction
  • Can be used with low or high pressure vacuums
  • Recovery capacity of 55 gal. (200L). Other recovery capacities are available
  • This mobile separation system is assembled on a 4-wheel cart (4W)

HEC-200L (4W) STAINLESS STEEL 53 Gallon Stainless

Designed for use in : Division 1, Class I, Groups A, B, C, and D. Division 1, Class II, Groups E, F, G. Hazardous Locations as defined in the National Electrical Code (NFPA 70)

HEC200L
Tiger-Vac® HEC-200L (4W) POWDER COATED

Features:

  • High Efficiency Cyclone (HEC). Pre-separation system for fine dust using the cyclone for inertial separation
  • The suction intake and the connection to the power source are Ø4" (Ø100 mm) in size
  • The suction intake Y-Connectors are available in: - Ø4" (Ø100 mm) x Ø2" (Ø50 mm) x Ø2" (Ø50 mm) - Ø4" (Ø100 mm) x Ø1.5" (Ø38 mm) x Ø1.5" (Ø38 mm) x Ø1.5" (Ø38 mm)
  • The HEC can be powered by either a low pressure or high pressure vacuum/dust collector blower
  • High quality SAE 304 stainless steel construction and compatible with the Pharmaceutical and Food industries
  • Suction and connection hoses for the Pharmaceutical and Food industries are available
  • Recovery capacity of 55 gal. (200L). Other recovery capacities are available
  • This mobile separation system is assembled on a 4-wheel cart (4W) and has been designed for the pharmaceutical and food industries
  • For high pressure applications. This unit is to be used in conjunction with a central or mobile suction source and can recover any size of dust, chips or fumes from or within the workplace. The same applies to low pressure fine dust collection. We have designed this pre-separator unit to be used in hazardous locations for Class II, Division 1, Groups F & G (flour dust, rubber plastics, etc.) as per Nationally Recognized Testing Laboratories (NRTL) and must be used in conjunction with certified equipment

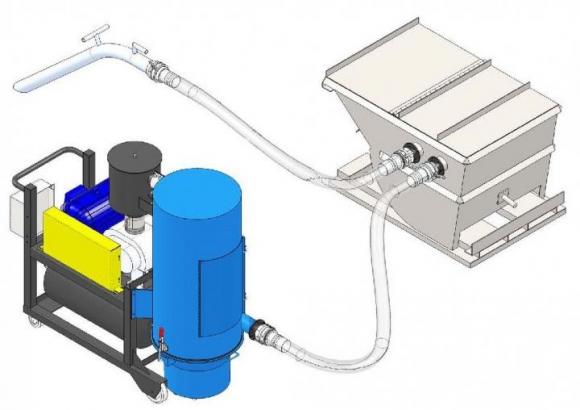

Bulk Hoppers

We carry a full range of intercept hoppers and portable separators to increase material storage.   Our separators intercept vacuumed materials before they get to the filtration system.   This is especially good if you are vacuuming abrasive materials in that you can greatly extend the life of the vacuum and the filters as most of the material goes into the hopper.  Capacity up to 3 cubic yards and 28″ Hg. vacuum.

BH
Bulk Hopper
