Division 1 Portable Explosion Proof Dust Collector

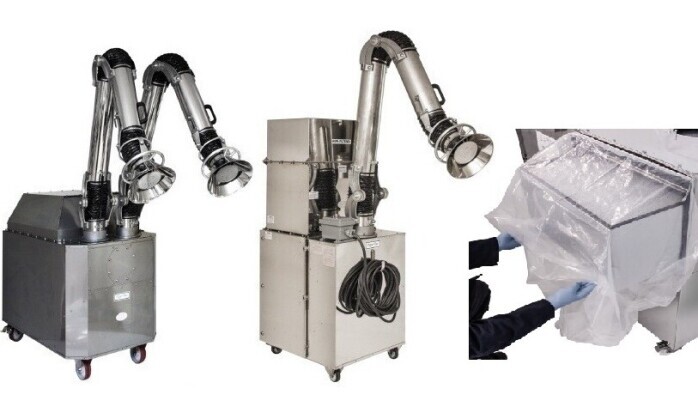

XP Dust Collector Lineup4

For the Safe Recovery of Combustible/Conductive Dusts from 600 to 1200 CFM

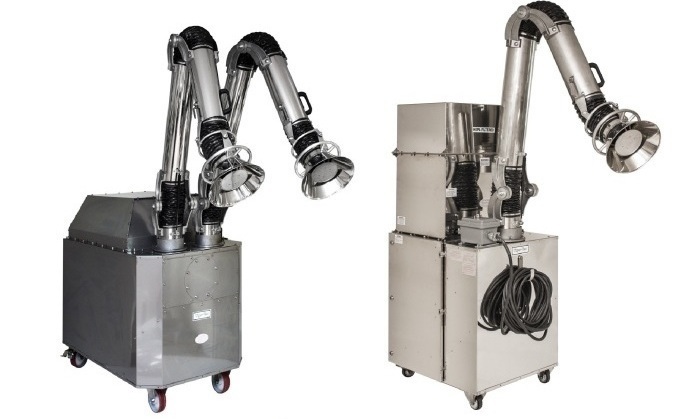

Stainless Steel Explosion-Proof

The CD-600EX and CD-1200EX Stainless Steel portable dust collectors are fully compliant with OSHA and NRTL and 3rd party standards for explosive dusts, and are certified explosion-proof.  Used in food production, labs, pharmaceutical, clean areas and countless other applications in pristine working environments, the low center of gravity design allows for super easy movement on a smooth floor surface. The locking wheel castors are foot-activated.

The CD Stainless units work double-duty as HEPA air cleaners by exhausting clean, breathable air back into the work area.  Click HERE to see the CDEX SS Operation Principle.

CD-600 EX STAINLESS STEEL

CD-600 EX STAINLESS STEEL

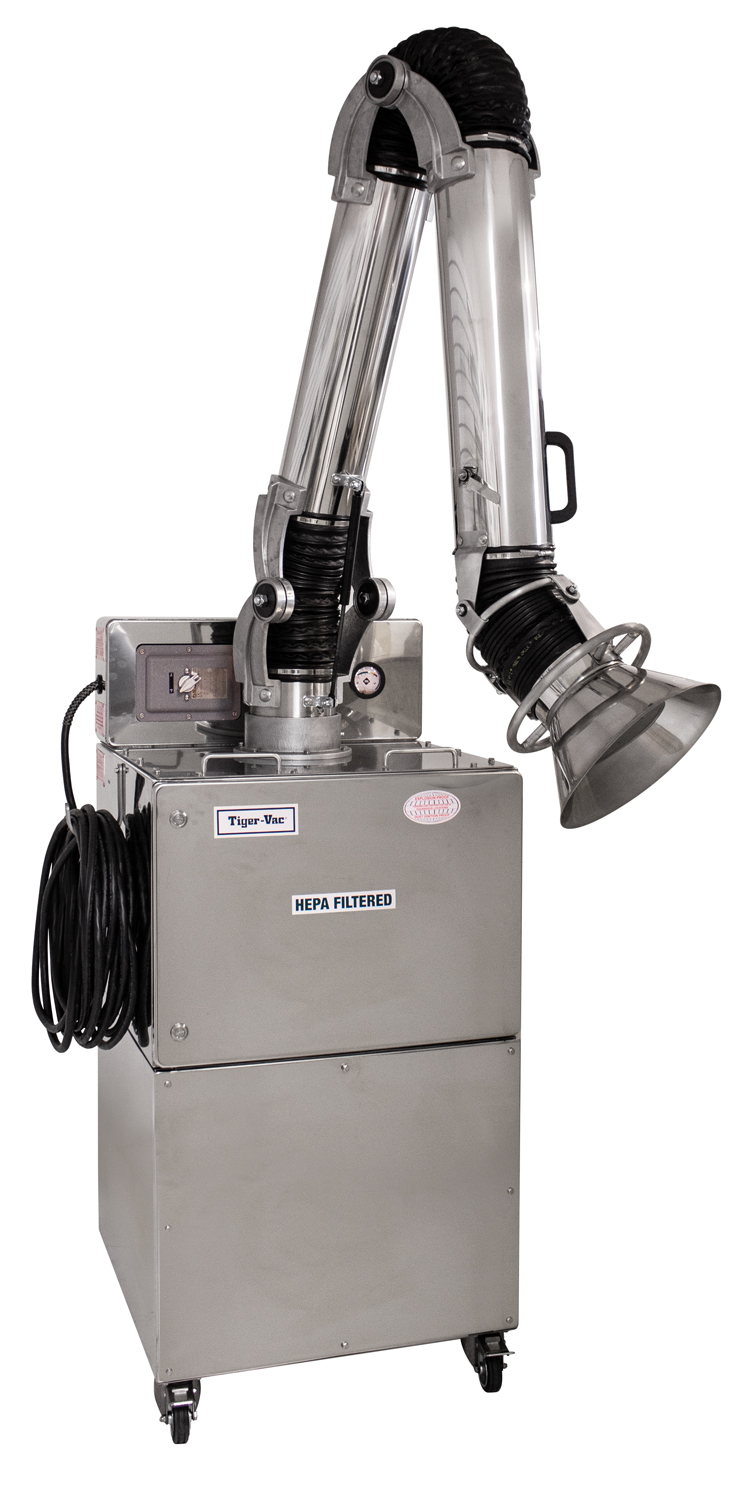

Tiger-Vac® CD-600 EX STAINLESS STEEL
  • Designed to capture airborne dust

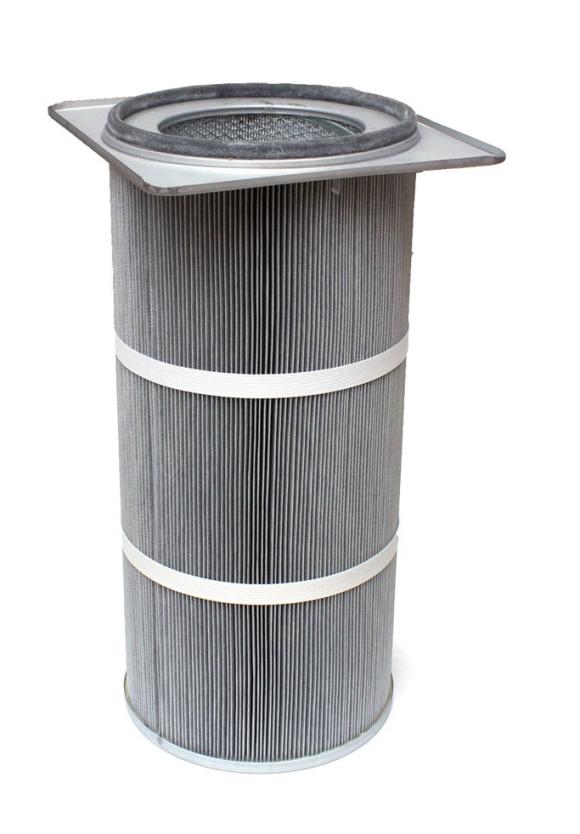

  • The first stage of filtration is an aluminized spun bond cartridge. Filtration efficiency of 97% on 0.3 micron

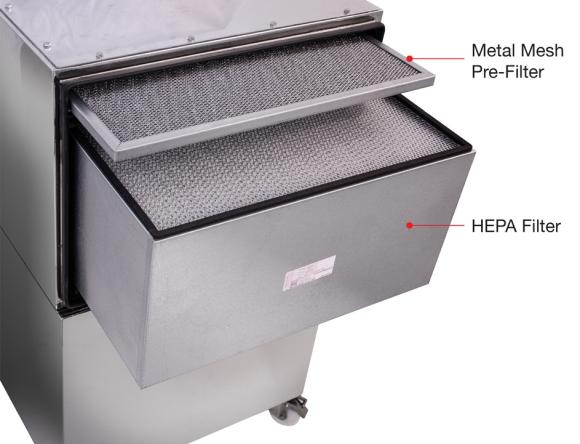

  • Downstream HEPA filter with an efficiency of 99.99% on 0.3 micron included. All of our HEPA vacuum systems are aerosol leak-tested before leaving our facility
  • Low pressure, high flow rate. 600-700 CFM (1020-1190 m³/h)
  • Filter cartridge pulse cleaning by compressed air (manual or with automatic timer) with a 10L compressed air tank
  • Heavy duty stainless steel SAE 304 construction
  • Heavy duty wheels and swivel castors. 2 wheels are equipped with brakes
  • Handles for ease of movement
  • Easy access to filters
  • Low center of gravity to prevent tipping
  • Continuous duty single-phase or 3-phase (TEFC) explosion proof/dust ignition proof motor
  • Different motor voltages are available
  • Thermal overload for motor

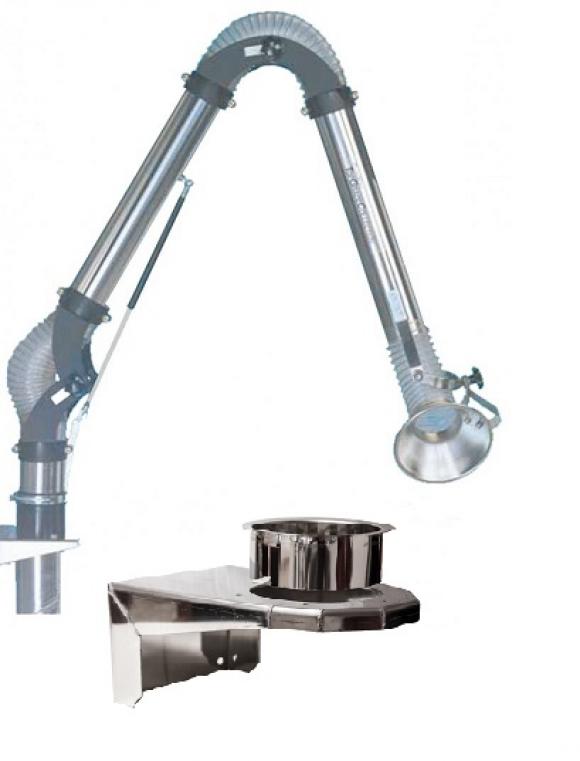

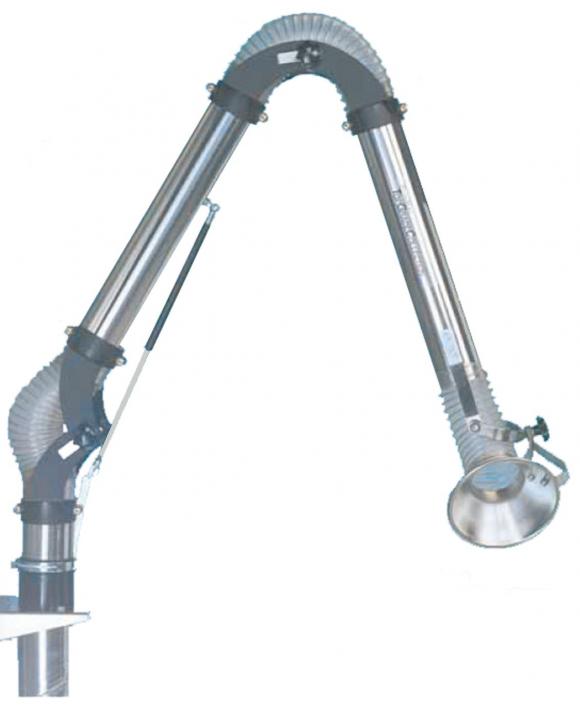

  • Optional dust extraction arm available - Ø6” (150 mm)

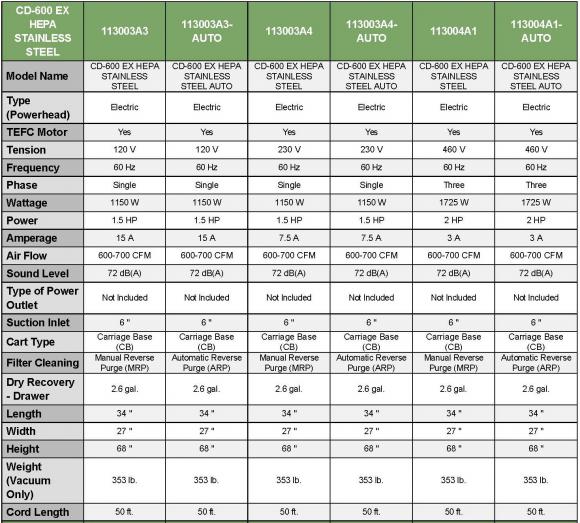

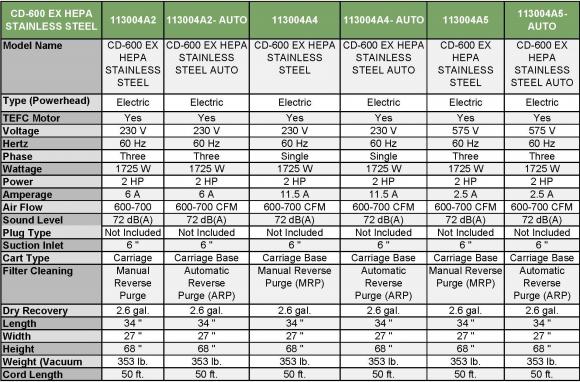

Specifications:

CD600SSSpecs

Our tech-support (call or text) hotline is (919) 607 6765

CD-1200 EX STAINLESS STEEL

CD-1200 EX STAINLESS STEEL
Tiger-Vac® CD-1200 EX STAINLESS STEEL
  • Designed to capture airborne dust
  • Low pressure, high flow rate. 1200 CFM (2000 m³/h)
  • Filter cartridge pulse cleaning by compressed air (manual or with automatic timer) with a 10L compressed air tank
  • Filter cartridge made of conductive aluminized spun bond material. Optional Hemipleat® cartridge available
  • Heavy duty stainless steel SAE 304 construction
  • Heavy duty wheels and swivel castors. 2 wheels equipped with brakes. All 4 wheels are conductive
  • Handles for ease of movement
  • Easy access to filters
  • Low center of gravity to prevent tipping
  • Continuous duty 3-phase (TEFC) motor. Third Party Certified
  • Thermal overload for motor
  • Optional dust extraction arm available - 2 x Ø6” (150 mm) or 1 x Ø8” (200 mm)

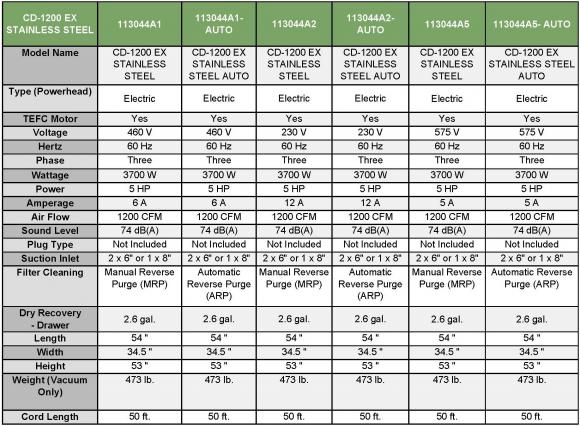

Specifications:

specsCD1200SS

High-Efficiency Cyclone

For larger quantities of dust, the in High-Efficiency Cyclones offer 30 and 55 gallon capacity in a highly efficient and portable package.  The stainless steel HEC is ideal in food grade applications, pharma, labs, clean rooms and high volume batching and weighing applications.

HEC
OTP

Painted Steel Explosion-Proof

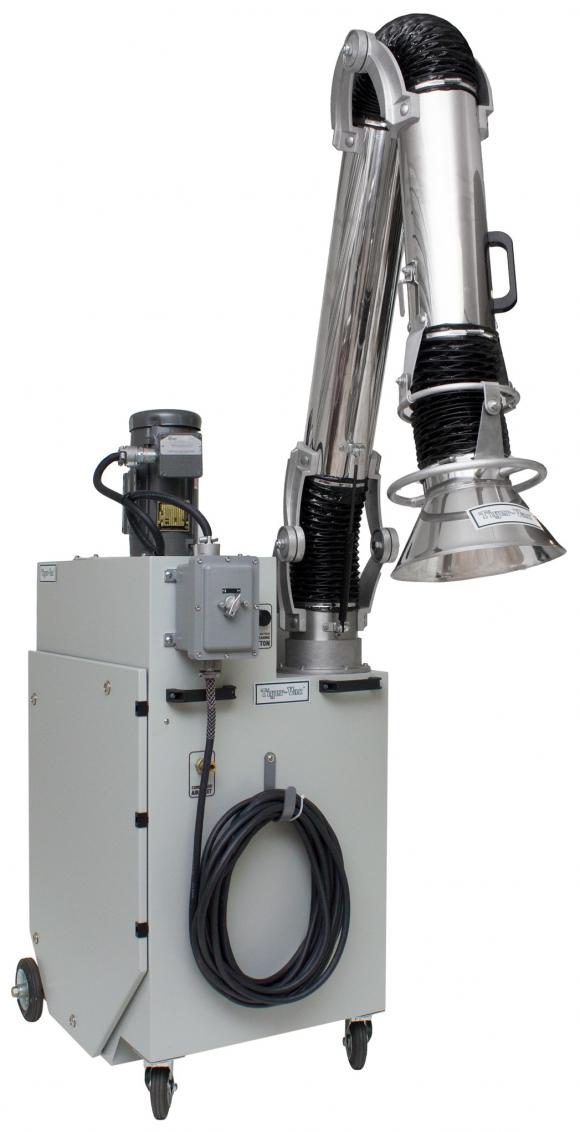

CD-600 EX Painted Steel

CD-600 EX
Tiger-Vac® CD-600 EX Painted Steel

Designed to capture airborne explosive dusts in NFPA designated Division 1 Hazardous Locations. Heavy duty welded construction and static dissipating and grounded/bonded design.

The CD-600 EX has a Continuous-Duty motor that is available in both single phase 110V and also 230/460 3 phase (TEFC) explosion-proof/dust ignition proof motor. Manual or auto filter pulse cleaning, spark trap, and locking casters are included. The CD- 600 EX is ideal in labs, or in batching/testing applications.

The CD-600 EX has a full motion articulating arm and spark-trap making it ideal for grinding and welding, it’s versatility also allows it to be used in Aerospace for capturing combustible dusts during sanding and buffing operations.

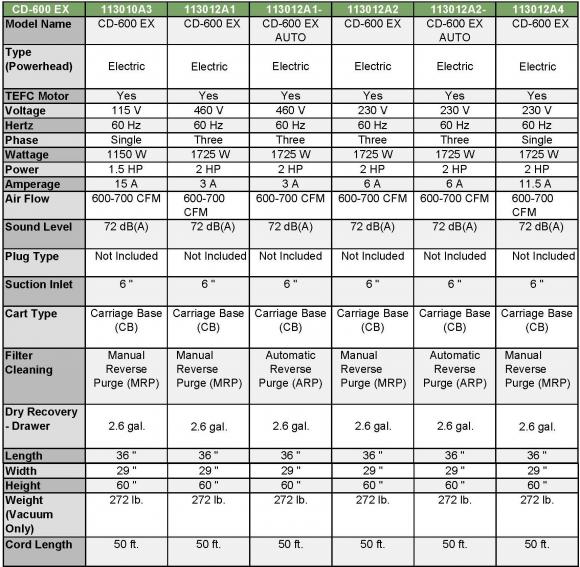

CD600Specifications

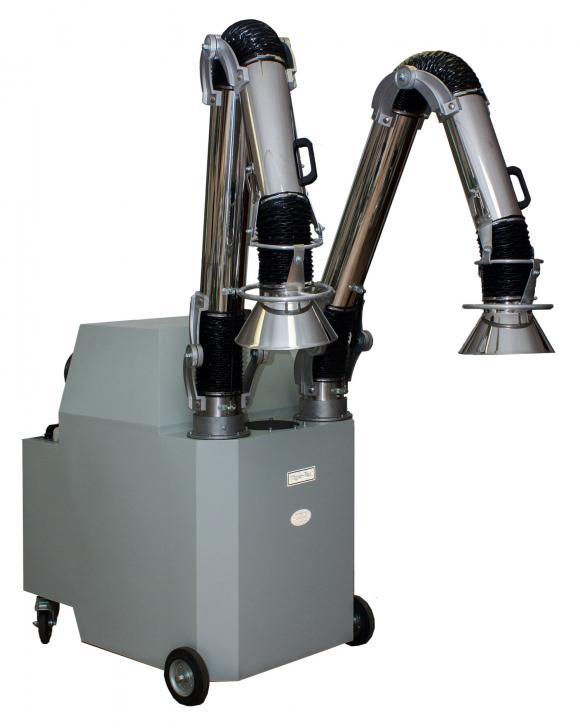

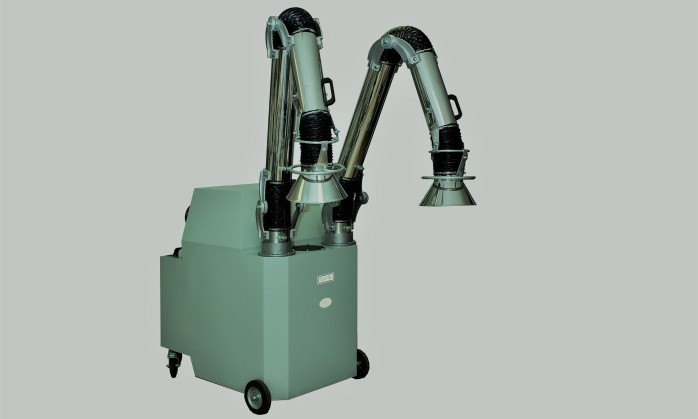

CD-1200 EX Painted Steel

CD1200EX
Tiger-Vac® CD-1200EX
  • Designed to capture airborne dust
  • 3-stage filtration system consisting of a metal mesh spark trap filter, aluminized spun bond cartridge and carbon after-filter. Filtration efficiency of 97% on 0.3 micron
  • Low pressure, high flow rate. 1200 CFM (2000 M³/h)
  • Filter cartridge pulse cleaning by compressed air (manual or with automatic timer) with a 10L compressed air tank
  • Filter cartridge made of conductive aluminized spun bond material
  • Heavy Duty welded construction
  • Heavy duty wheels and swivel castors. 2 wheels are static conductive and equipped with brakes
  • Handles for ease of movement
  • Easy access to filters
  • Low center of gravity to prevent tipping
  • Spark trap metallic filter included
  • Continuous duty 3-phase (TEFC) explosion proof/dust ignition proof motor. Third Party Certified
  • Different motor voltages are available
  • Thermal overload for motor
  • Optional dust extraction arm available - 2 x Ø6” (150 mm) or 1 x Ø8” (200 mm)

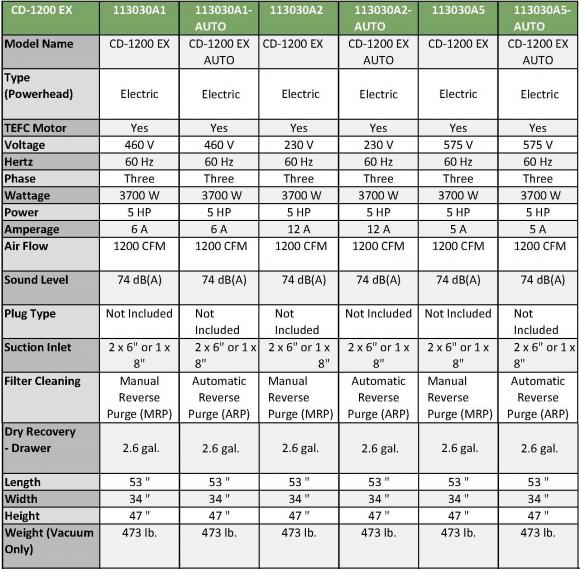

CF1200Specifications
Certification

FAQ Section

Plus (click or tap to expand) + What is "source capture"?

There are two main methods of collecting airborne dust and powders. The first is “ambient capture”. This is where we use units such as ceiling-mounted Ambient Capture Units to capture from a space, such as a room or an open area. Source Capture is where a Capture Arm is attached to dust collector to capture dust before it becomes airborne.

Source Capture

Source Capture

Plus (click or tap to expand) + What is "ambient capture"?

A modular ambient system provides the flexibility that many metal manufacturers are looking for. A large central ambient air system is more efficient and requires less maintenance than a modular system, but the large system simply may be too expensive for some companies or too much for a manufacturer with a lot of production variation in its operation.

Amient Capture Units.

Amient Capture Units.

Plus (click or tap to expand) + Are these "source capture" dust collectors suitable for NFPA designated Hazardous Areas?

Yes. Guaranteed for the safe recovery of combustible/conductive dusts. Legally certified for Hazardous Locations. Division 1 and 2, Class I and 2, Group D and Class II, Groups F and G, T3C Division 2, Class I, Group D and Class II, Groups F and G, T3C. Optional Group E motor available.

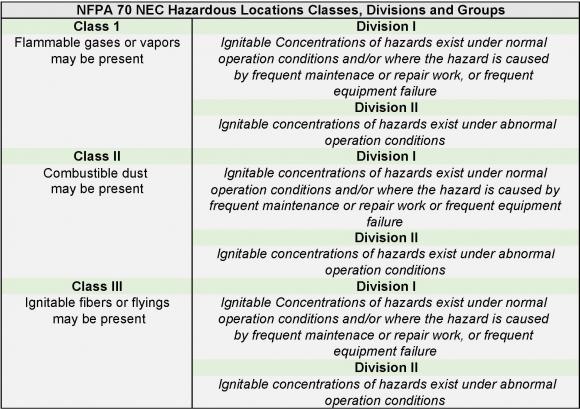

NFPA Hazardous Locations Explained

NFPA70Rev1
NFPA70 Explained
