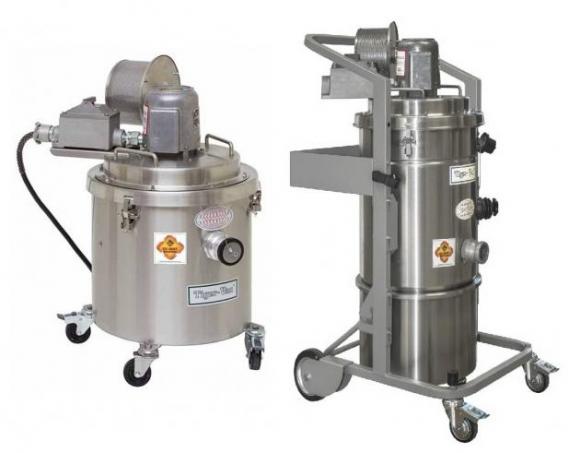

EXP1-5 (4W) RE HEPA and EXP1-20L (DT) RE HEPA (MFS)
The Tiger-Vac® EXP1-5 (4W) RE HEPA is the shortest Explosion-Proof Vacuum on the market, measuring just 29.5" tall. Highly portable and plugs directly into 120v AC power. Legally certified explosion proof/dust ignition proof, HEPA Filtration.
Static-conductive hose and tool kit are included. 3.4 gal capacity, 132 cfm, 1.5" inlet. TEFC motor, clean room compatible. For dry recovery only.
21”L x 24”W x 29.5”H. Weight is 60 lb.
The Tiger-Vac® EXP1-20L (DT) RE HEPA (MFS) 6.6-gal capacity, 132 cfm, 2" inlet. TEFC motor, clean room compatible. A conductive poly liner recovery bag is optional. For dry recovery only. Has a detachable tank (DT) and manual Filter-Shaker (MFS).
26” L x 22”W x 43”H. Weight is 100 lb.
For the safe recovery of combustible/conductive dusts in areas that are:
Class I, Division 1, Division 2, Group D, T3C and Class II, Division 1, Division 2, Groups E, F and G.
Non-sparking conductive 1.5" vacuum brushes and hose

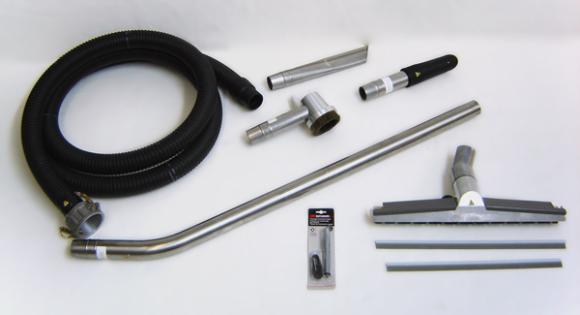

Static Conductive Hose and Tool Kit - included
Click HERE for EXP1-5 (4W) RE HEPA Specifications
P/N
111355A
Model Name
EXP1-5 (4W) RE HEPA
Type (Powerhead)
Electric
TEFC Motor
Yes
Voltage
120 V
Hertz
60 Hz
Phase
Single
Wattage
1000 W
Power
1.3 HP
Amperage
9 A
Air Flow
132 CFM
Vacuum Pressure
69 " H20
Sound Level
78/85 dB(A)
Plug Type
Not Included
Suction Inlet
1.5 "
Cart Type
4 Wheel Dolly (4W)
Filter Cleaning
None
Dry Recovery - Tank
3.4 Gal
Length
21 "
Width
24 "
Height
29.5 "
Weight (Vacuum Only)
60 lb.
Cord Length
50 ft.
Click HERE for EXP1-20L (DT) RE HEPA (MFS) Specifications
P/N
110364A
Model Name
EXP1-20L (DT) RE HEPA (MFS)
Type (Powerhead)
Electric
TEFC Motor
Yes
Voltage
120 V
Hertz
60 Hz
Phase
Single
Wattage
1000 W
Power
1.3 HP
Amperage
9 A
Air Flow
132 CFM
Vacuum Pressure
69 " H20
Sound Level
78/85 dB(A)
Plug Type
Not Included
Suction Inlet
2 "
Cart Type
Detachable Tank (DT)
Filter Cleaning
Manual Filter Shaker (MFS)
Dry Recovery - Tank
6.6 Gal
Length
26 "
Width
22 "
Height
43 "
Weight (Vacuum Only)
100 lb.
Cord Length
50 ft.

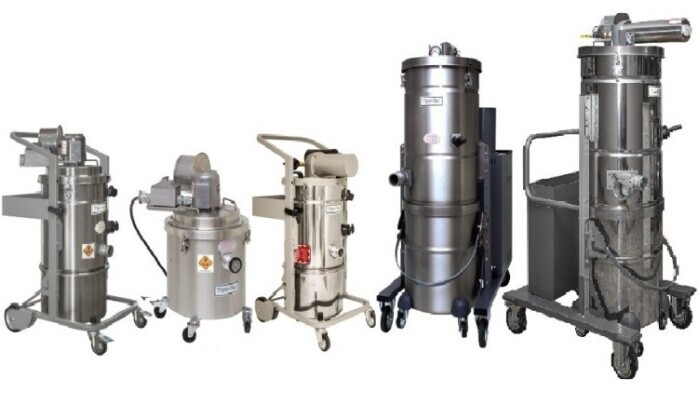

Explosion Proof Vacuums - Continuous-Duty
High-Power Explosion Proof Vacuum Cleaners
CD-155 (DT) EX (MFS) and CD-100L (DT) EX (MFS)
The Tiger-Vac® CD-155 (DT) EX (MFS) and CD-100L (DT) EX (MFS) three phase electrically operated models are equipped with certified induction motors with regenerative blowers rated for continuous duty. Ideal for large volume recovery and for process integration.
Fully portable and completely static-dissipating design, the vacuums have a removeable recovery tank (DT) and a manual filter shaker (MFS) that allows you to clean the filter without having to dismantle anything.
Designed for all day continuous use, the CD-55L (DT) EX (MFS) and CD-100L are workhorse vacuums that have a continuous-duty single phase, or 3-phase (TEFC) explosion proof/dust ignition proof motor.
For use in areas that are:
Div 1 - Groups D and in Class II -Div 1 - Groups F & G Hazardous Locations as defined in the National Electrical Code (NFPA 70). A certified Class II – Div 1 - Group E version is also available.
CD-55L (DT) EX (MFS) Specifications:
CD-55L (DT) EX (MFS) Specifications:
112540A3
112542A1
HP
1.5HP
2.0HP
Power
120/1/60
460/3/60
CFM
125
158
WATER COLUMN
120 " H20
130 " H20
DIMS
40" X 24" X 47"
40" X 24" X 47"
WEIGHT
250 LBS.
250 LBS.
NOISE LEVEL
72 dB(A)
72 dB(A)
Cord Length
50 ft.
50 ft.
MAIN STAR FILTER SURFACE
9.25 ft2
9.25 ft2
DRY RECOVERY
14.5 Gal
14.5 Gal
AMP DRAW (FLA)
15 A
2.6 A
INLET
2"
2"
CD-100L (DT) EX (MFS) Specifications:
2570A1
112574A1
HP
5HP
7.5HP
CFM
225 CFM
324 CFRM
WATER COLUMN
100"
95"
DIMS
46" X 27" X 65"
46" X 27" X 65"
WEIGHT
362
418
NOISE LEVEL
72 dB(A)
77 dB(A)
HEPA/ULPA SURFACE
21 ft2
42 ft2
MAIN STAR FILTER SURFACE
21 ft2
21 ft2
DRY RECOVERY
26.3 Gal
26.3 Gal
AMP DRAW (FLA)
6:00 AM
8.6 A

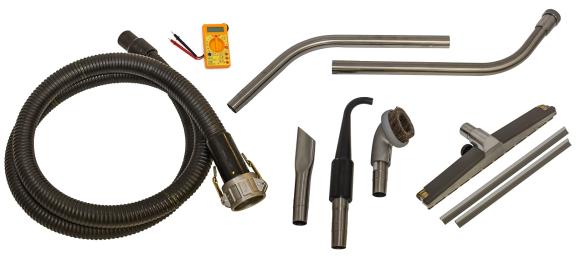

2 inch Static Conductive Hose and Tool Kit
2 inch Static Conductive Hose and Tool Kit for 5 HP Models - Included
