What is the NFPA 8 Cu Ft Rule?
9.8.2.1 * Where an explosion hazard exists within any operating greater than 8 ft3 (0.2 m 3 ) of containing volume, the equipment shall be protected from the effects of an explosion.
NFPA 660 Compliant Dust Collector | Explosion-Proof Motor
The most powerful XP portable dust collection on the market with the most filter surface area. Made in USA from 14 gauge steel and conductive powder-coat.

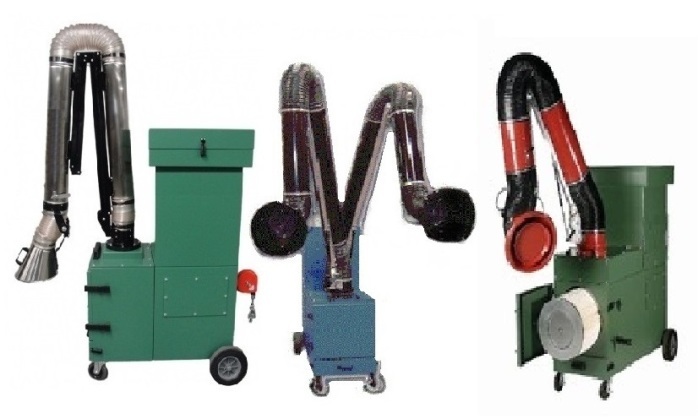

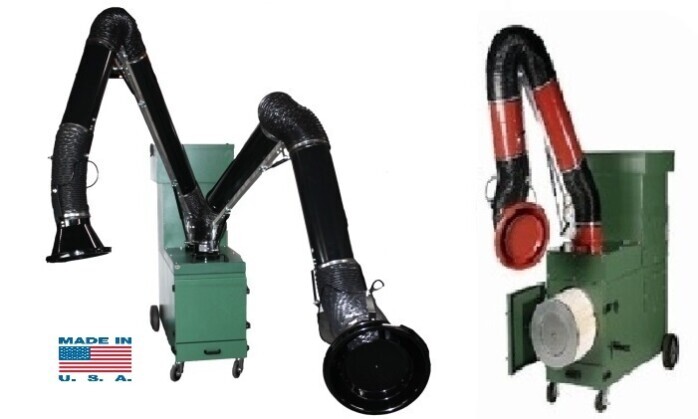

XP Portable Dust Collectors - ST1 Dust in ORDLOC

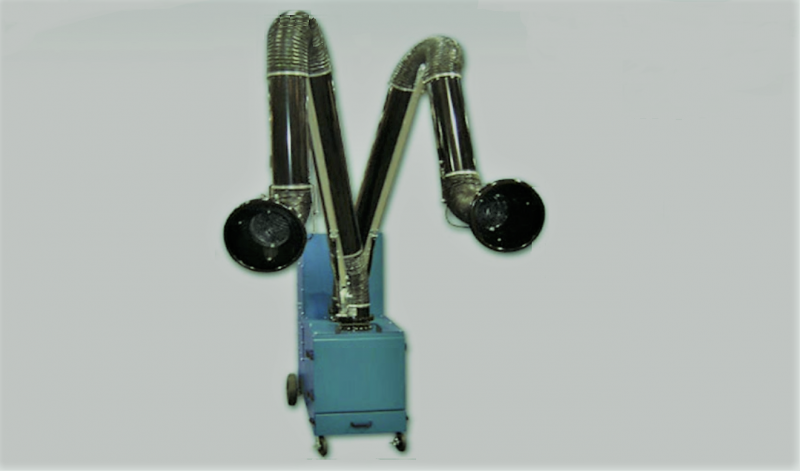

Up to 2500 CFM and Dual Arms for XP Dust
Exhaust Module can accommodate carbon pellet tray and a HEPA
The "dirty air volume" is less than 8 cu ft
NFPA Capture and Convey Velocity Requirements | Twice as Powerful as Other HAZLOC Portables
Built to surpass NFPA capture and convey velocity requirements. An awful lot of people who sell HAZLOC equipment will talk all day about NEC 70, which is very important. But it is only half of the picture. Our units at 2500 CFM and 300 sq ft of primary filter are built to be twice as powerful as anything comparable.
TEFC Motor with IP55 Starter or Optional Explosion-Proof Motor and Starter
TEFC Motor with IP55 Starter or optional Explosion-Proof motor and starter or optional Class 1 Group D, Class II F and G, Division 1 Baldor Explosion-Proof Motor and Sprecher+Schuh NEMA 7/9 starter. We also have XP VFD drives.
Suitable for areas that are:
Division 1, Class I, Group D and Class II, Groups F, and G, T3C.
Division 1, Class II Group E (metal dust) motor and switch available.
Division 2, Class I Group D and Class II, Groups F and G, T3C.
Use in HAZLOC is subject to approval by your AHJ and/or EHS.
Click here for features

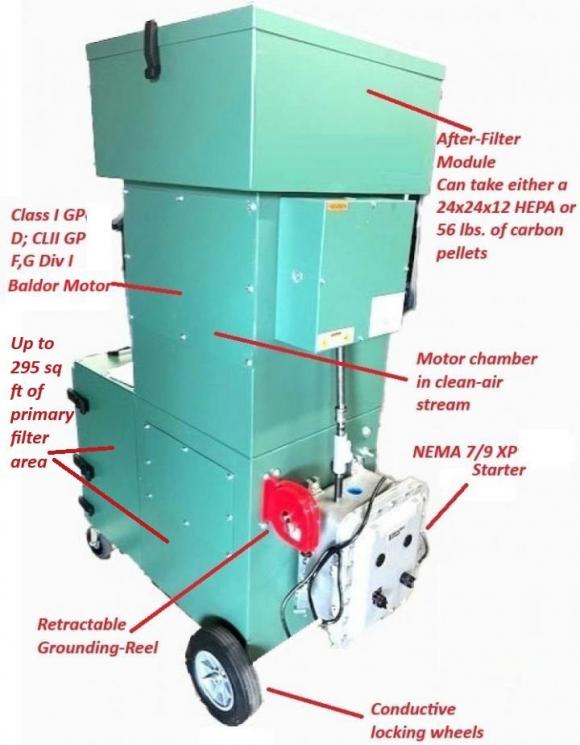

Featuring:
- TEFC or Class I GP D; CLII GP F, G - Division I Explosion-Proof Motor
- IP55 or NEMA 7/9 Explosion-Proof Starter
- Optional VFD
- Up to 2500 CFM
- Up to 400 sq ft of filter
- Retractable grounding reel
- Non-sparking aluminum fan
- Electrical Starter and Air-Pulse can be remote-mounted on a panel
- Send us the paint code for the unit to be powder coated in your color
- AUTO-Pulse filter cleaning (pulses by reading a pressure drop)
- Custom-built for your unique application in the USA!
Click here for specifications
- 1000 or 2000 Nominal CFM @ 5.5 in. of static pressure
- Single phase 1.5 HP or three phase 3 HP TEFC motor with switch, cord on 1.5 HP only
- Optional Explosion Proof Motors Class 1, Div I and II. Groups E,F&G

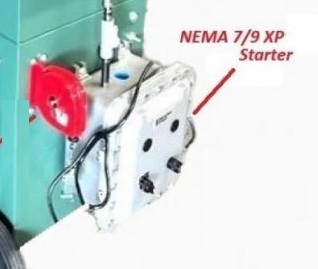

- Optional NEMA 7/9 XP Starter
- Direct drive backward inclined airfoil non-overloading fan
- 177 or 295 square feet of filter area providing filter Efficiency of 99% at 0.5 microns and grounding filter strap
- Optional 24"x24"x12" HEPA .3 micron @99.97% efficient
- Optional 24"x24"x12" Carbon Cell for up to 40 lbs of 4 mm carbon pellets for VOC elimination
- NFPA 652 XP Conduit for Wiring
- Internal baffle protecting cartridge filter
- Manual push button pulse-jet filter cleaning system
- Easy tool-less filter change-out
- Mini-helic filter change-out gauge
- Dust collection drawer

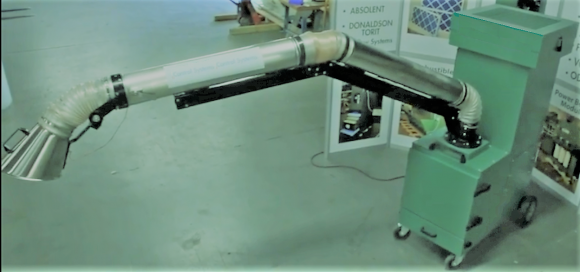

- 6 or 8 in. by 10 ft. externally supported extraction arm
- 10 in. rear wheels and 5 in. front swivel wheels
- 11- and 14-gauge heavy duty metal construction
- Industrialized textured powder coat finish
- Custom colors - send us your paint code!
Click THIS LINK to see electrical specifications
What is the NFPA 8 cu ft rule?
“If the system’s air-material separator, such as a filter receiver, dust collector, or cyclone, has an enclosure (dirty-side) volume greater than 8 cu. ft., then the enclosure must be protected against an explosion’s effect by a valid protection method, such as explosion venting, suppression, or containment.”
How is the PDC-XP Portable Dust Collection compliant with NFPA 8 cu ft rule?
The PDC-XP 1000 and 2000 are both compliant with the 8 cu. ft. rule, as the “dirty air” portions of each collector are less than 8 cubic ft.
What are some of the industries and applications that this unit is used for?

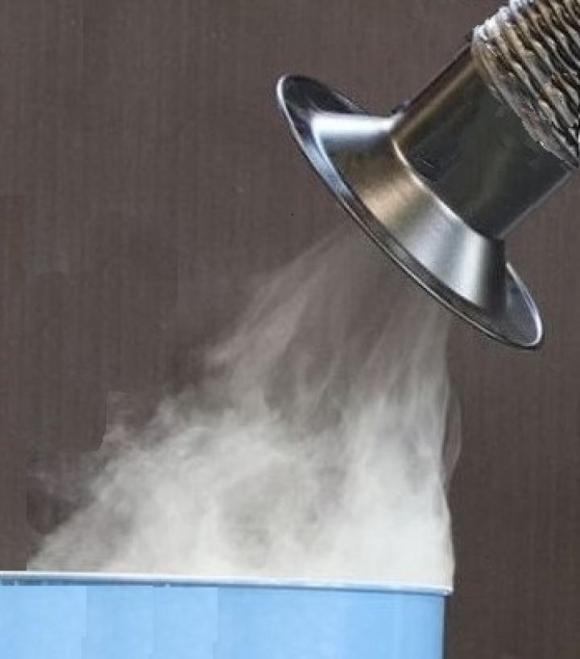

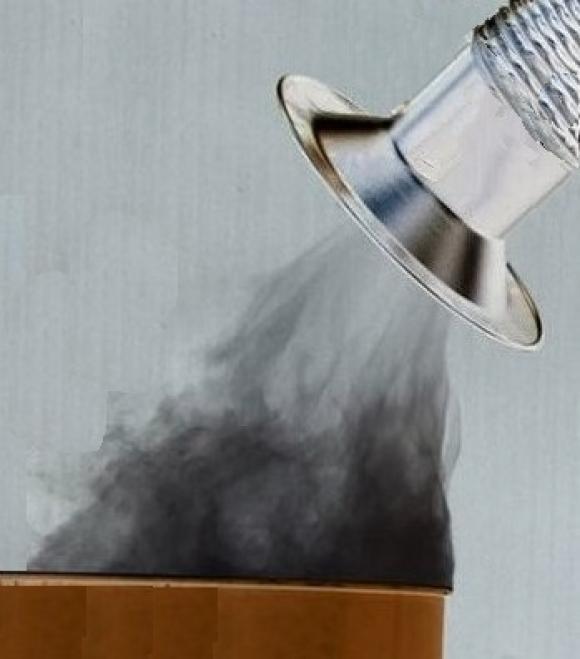

By also adding a non-sparking fan wheel and an aluminum spark deflector (and several other key upgrades), the PDC-XP units can be customized to be compliant with NFPA 652 Standard for capture of ST1 explosive dusts. These units are useful in specific applications such as batching or pouring of powders in a lab or factory, as well as industries such as cosmetics, pharmaceutical, aerospace, and defense. Having a detailed conversation ahead of purchase is crucial as every application is unique. Allow Controlled Air Design to customize a unit for your needs!

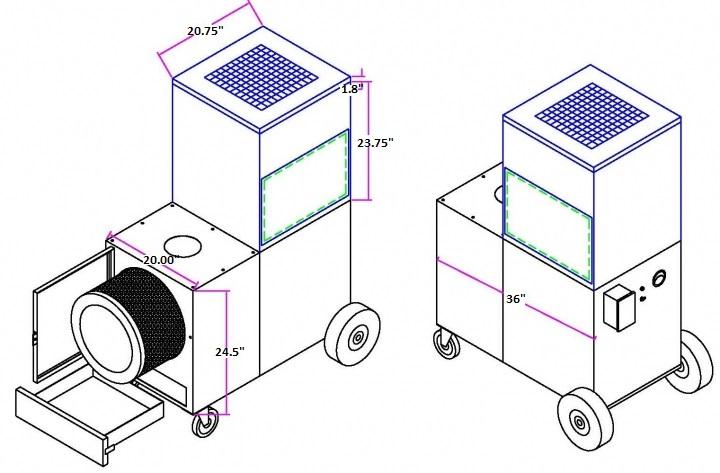

Click HERE for PDC-XP1000 Dimensional Drawing
Click HERE for PDC-XP2000 Dimensional Drawing

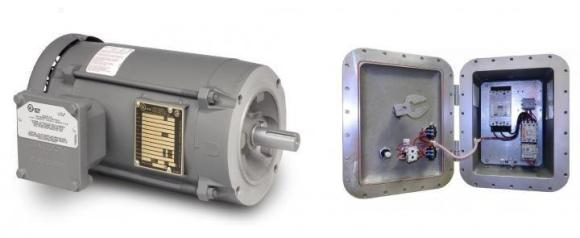

Click HERE for Explosion-Proof Motor and NEMA 7/9 Starter Specifications
Filtering Down to .3 Micron @ 99.97% Efficient
Filtering down to .3 micron @ 99.97% efficient the PDC-XP dirty air stream is less than 8 cu ft making it the most powerful portable XP dust collector with the most filter surface area, and the most wide ranging variety of filtration, including carbon, HEPA, Nano, and aluminized conductive.
Performance:
| Unit | HP | CFM/"WG | LxWxH inches |
|---|---|---|---|
| PDC-XP-1000XPST1 | 1.5 | 1000 / 5.5" | 36 x 20 x 53.5 |
| PDC-XP-1200XPST1 | 1.5 | 1200 / 5.5" | 47 x 20 x 53.5 |
| PDC-XP-2000XPST1 | 3 | 2000 / 5.5" | 47 x 20 x 53.5 |
| PDC-XP-2500XPST1 | 5 | 2500 / 7.5" | 47 x 20 x 53.5 |
Grounding Reel and Other Safety Options for HAZLOC Dust Collection
Retractable Grounding Reel. Mounts to SPC unit.

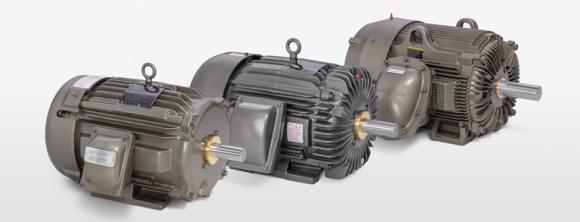

We offer a variety of motor choices with the PDC-XP units. The TEFC Motor that comes standard with the PDC-XP units is acceptable in most ST1 dust collection applications. For severe-duty applications we can offer Explosion-Proof Motors that are UL listed and rated for groups F&G. We also have a Group E Motor available. NEMA 7/9 Starters and VFDs are also available. For use in Class 1 areas where airborne flammable gases and vapors are present, these motors are designed to protect against hazardous gases, vapors and dusts that have explosive properties. Our highly engineered shaft sealing system protects against all three hazardous dust groups.
Click HERE to see a Case Study for PDC-XP dust control in a cosmetics factory
Optional Dust Collection Spark-Trap
Optional Spark Trap Assembly
An optional Spark-Trap and FR Filters are available for welding and grinding applications. Or applications where a spark might occur.
Let us know the details of your application so that we can see if a Spark-Trap is needed.
