Specifications for C-10 EX (4W):
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vacuum Cleaners for Class II, Division 2
Div 2 explosion-proof vacuum cleaners are designed for specific applications involving the pickup of hazardous materials
Jump To:
Vacuum Cleaners for Class II, Division 2, Groups F and G
Cleanup and general housekeeping in Division 2

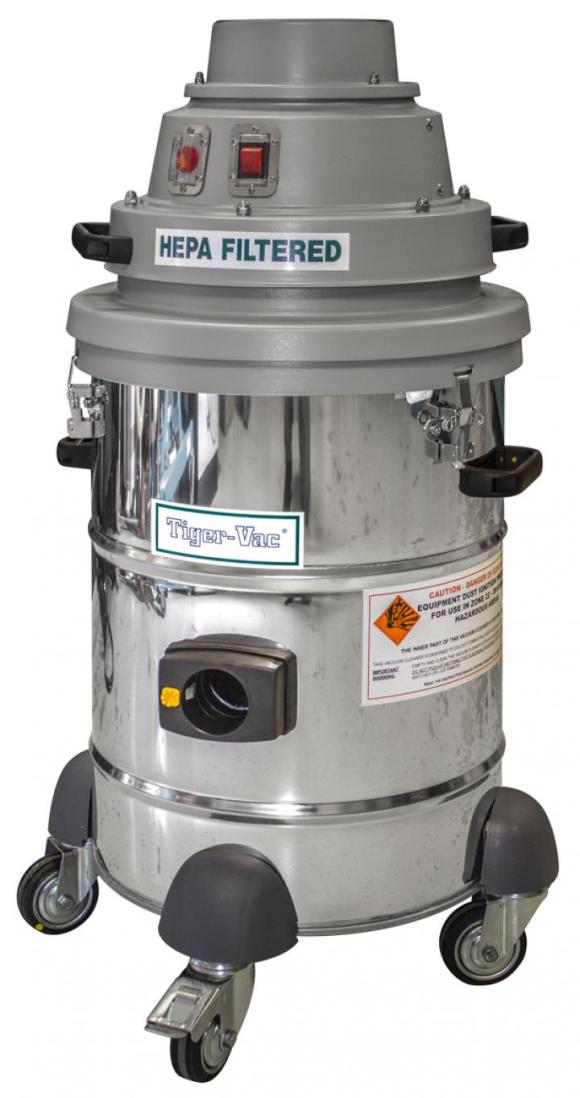

C-10EX (4W)
C-10EX (4W)
The Tiger-Vac® C-10EX (4W) represents the smallest vacuum within the Class 2 Division 2 range. It is equipped with a 110v plug-and-play design, rendering it particularly suitable for cleanup and general housekeeping in Class 2 Division 2 areas.
This model can be provided with a brushless motor where applicable. The recovery tank is constructed from SAE 304 stainless steel. Please note that this vacuum is intended solely for dry use; however, we do offer alternative models that accommodate wet/dry applications.
Typically, the C-10EX (4W) is available for expedited shipping.
We encourage you to contact us today to discuss your specific application, and we will be pleased to provide a quote within minutes of our discussion. Our contact number is (800) 635-0298.
Specifications for C-35L EX DT:
Specifications for C-35L EX DT:
| C-35L EX DT (MFS) | 111783A |
|---|---|
| Model Name | C-35L EX DT (MFS) |
| Type | Electric |
| Tension | 120 V |
| Frequency | 60 Hz |
| Phase | Single |
| Wattage | 1207 W |
| Power | 1.6 HP |
| Amperage | 10.5 A |
| Air Flow | 110 CFM |
| Vacuum Pressure | 107 " H20 |
| Sound Level | 72 dB(A) |
| Type of Power Outlet | 120V |
| Suction Inlet Port | 2 " |
| Cart Type | Detachable Tank (DT) |
| Filter Cleaning | Manual Filter Shaker (MFS) |
| Dust Recovery Tank | 9.2 Gal |
| Length | 26 " |
| Width | 22 " |
| Height | 48 " |
| Weight (Vacuum Only) | 89 lb. |
| Cord Length | 35 ft. |
| HEPA/ULPA Filter Surface Size | 21.8 ft2 |
| Main Cloth Filter Surface Size | 3.75 ft2 |

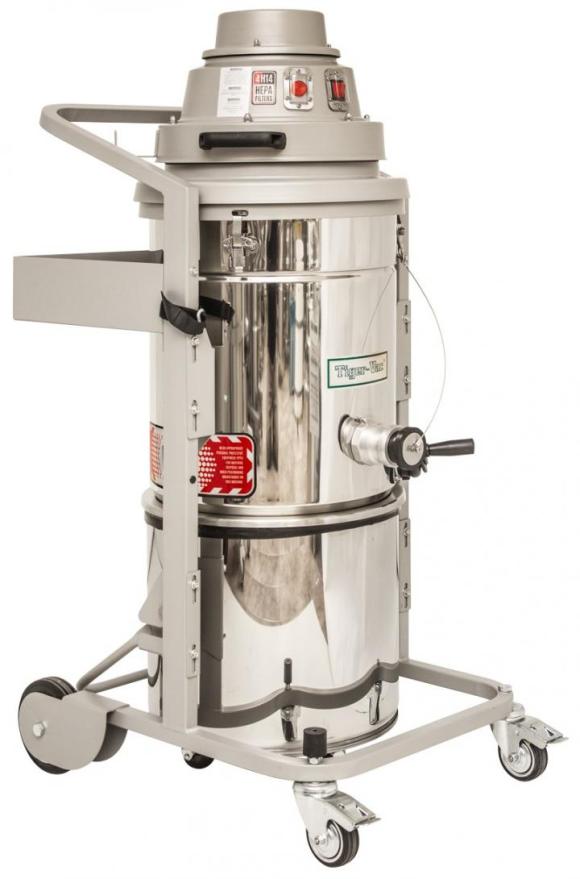

C-35L EX DT
Zone 22 Hazardous Areas / Dust Group IIIC (Conductive Dusts).
C-35L EX DT
The Tiger-Vac® C-35L EX DT is Certified for Zone 22 Hazardous Areas / Dust Group IIIC (Conductive Dusts).
This model can be used to Recover Combustible/Conductive Dusts in Hazardous Locations Division 2 and Zone 22 Dust Group IIIC:
Suitable for groups F&G for general cleanups and housekeeping within Class 2 Division 2 areas. Comes with a static-conductive hose and tool kit.
We also have a wide variety of specialty conductive vacuum nozzles, extension wands, lightweight overhead vacuum kits available.
For use in areas that are:
Division 2, Class II, Groups F & G Certified Zone 22 Hazardous Areas / Dust Group IIIC (Conductive Dusts)

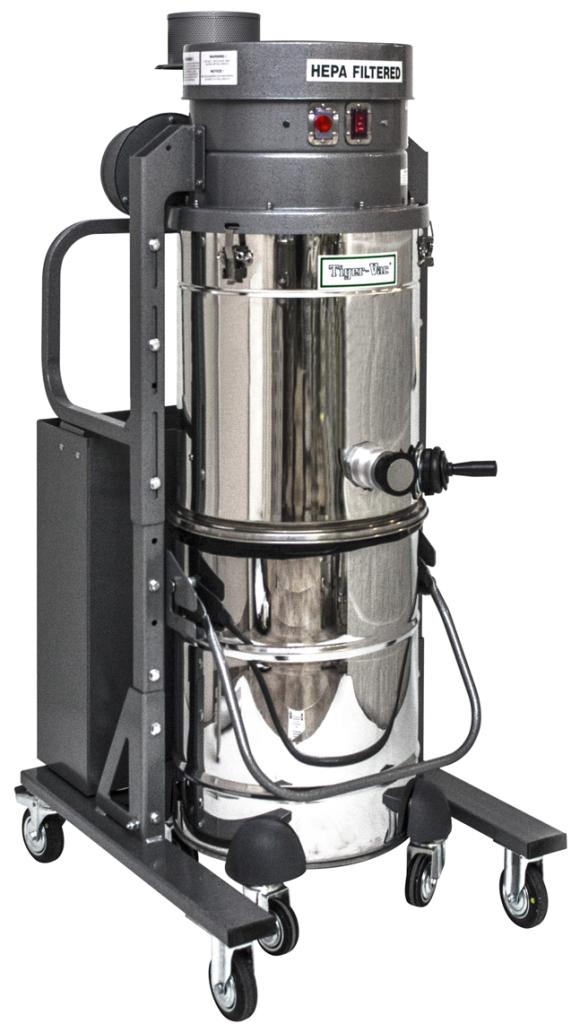

4D-55L EX DT HD (MRP)
Dry Recovery Only - Dual Motors
4D-55L EX DT HD (MRP)
The Tiger-Vac® 4D-55L EX DT HD (MRP)
DUST IGNITION PROTECTED
CLEANING MACHINES For Hazardous Locations (Classes C1618 01 & C1618 81)
Class II, Division 2, Groups F & G
Certified Zone 22 Hazardous Areas / Dust Group IIIC (Conductive Dusts)
This model can be used to Recover Combustible/Conductive Dusts in Hazardous Locations Division 2 and Zone 22 Dust Group IIIC:
Group F Conductive Carbonaceous Dust (carbon black, coal, coke dust, etc)
Group G All flour Dust (grain, flour, starch, sugar, wood, plastic, chemical dust, etc)
Group IIIC Conductive Dust Zone 22 (as per International Standards)
Specifications for: 4D-55L EX DT HD (MRP)
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
Industrial Vacuum Cleaners for Class II, Division 2 - 3 Phase
Vacuums for dry recovery in Class 2 Div. 2 locations

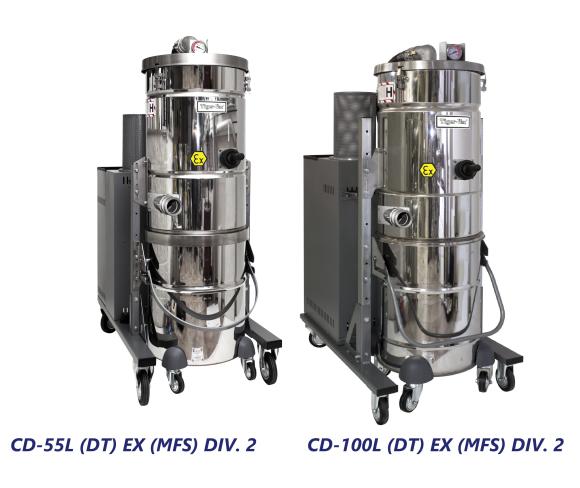

CD-55L (DT) EX (MFS) DIV. 2 - CD-100L (DT) EX (MFS) DIV. 2
| Specifications | 112542A12 | 112544A12 |
|---|---|---|
| Model Name | CD-55L (DT) EX (MFS) DIV. 2 | CD-55L (DT) EX (MFS) DIV. 2 |
| Power | 2 HP | 5 HP |
| Air Flow | 158 CFM | 225 CFM |
| Vacuum Pressure | 130 " H20 | 155 " H20 |
| VRV Setting | 80 " H20 | 100 " H20 |
| Length | 40" | 40" |
| Width | 24" | 24" |
| Height | 47" | 57" |
| Weight | 250 lbs. | 250 lbs. |
| Amperage | 2.6/5.2 A | 6/12 A |
The Tiger-Vac® CD-55L (DT) EX (MFS) DIV. 2 and CD-100L (DT) EX (MFS) DIV. 2 are legally 3rd party certified for use in Class I, Division 2, Group D Class II, Division 2, Groups F and G, T3C. Available in 230 or 460V 3-phase.
Continuous-Duty 3-Phase Electrical motors located in the clean air stream. Full static dissipating and bonded build. HEPA filter with an efficiency of 99.995% at 0.3 micron. Tested IEST-RP-CC001. H14 by MPPS method as per EN 1822 and OSHA compliant. All of the HEPA vacuum systems are aerosol leak tested before leaving the Tiger-Vac facility - optional.

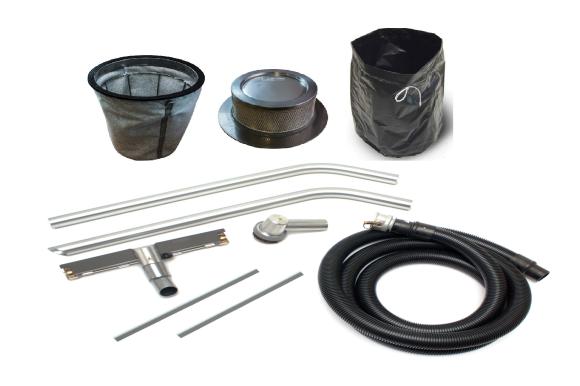

Static Dissipative Tools and Accessories - included
Included : Static Dissipative Tools and Accessories (Bulk Wand) - Main Cloth Filter and Cage, Static Dissipative - HEPA Filter - Conductive Polyliner Recovery Bag
Overhead Static Conductive Tool Kit
Overhead Static Conductive Tool Kit - Optional
