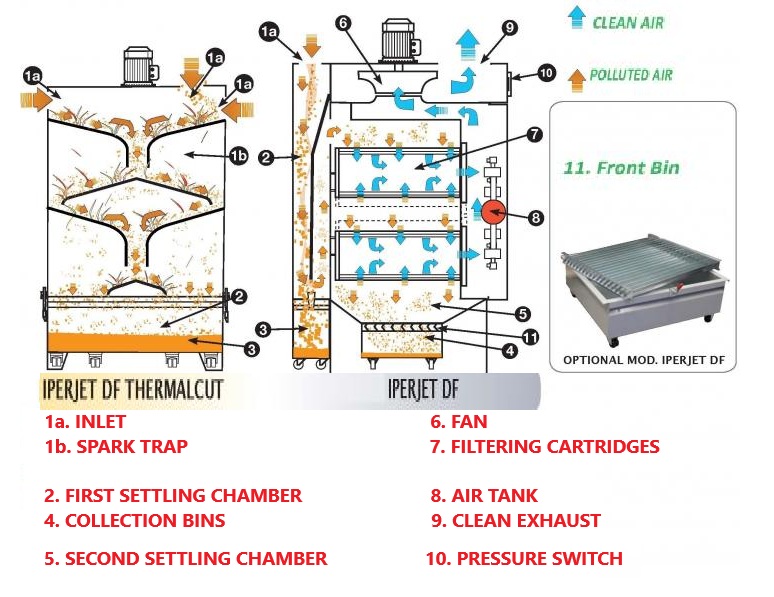

Click for Interior Spark Chamber Diagram

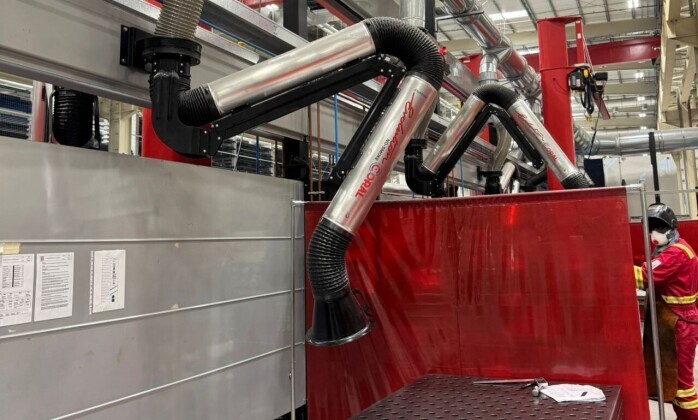

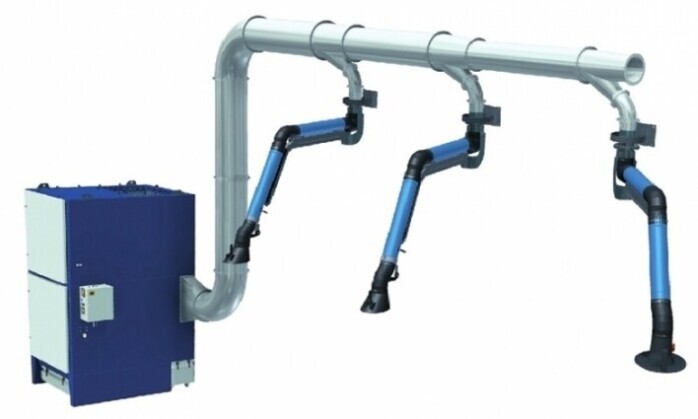

Central Welding and Dust Collection Systems
Large-scale fume extraction systems for multi-station industrial applications.

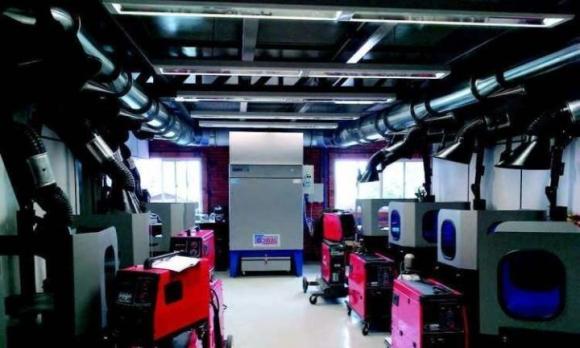

Solutions for Fume Exhaust in Welding Schools
Central HEPA System

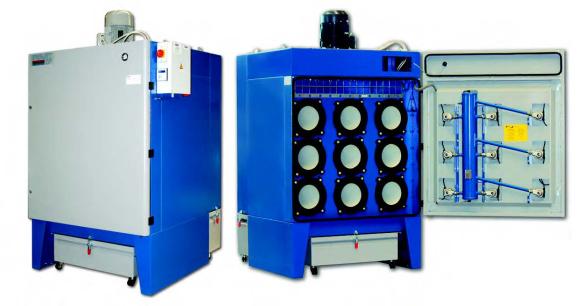

Iperjet DF
The DF unit is designed for filtration powders and dusts
IPERJET DF6 and 9 Cartridge
The DF is for source collection of dry powders at multiple points around a production area. It can also be used as a portable as it sits on heavy-duty locking wheels.
In a lot of applications the DF sits in a designated area with metal ducting running to the collection points. The interior of the DF is set up for rapid collection of fine dust and fully integrated sub-micron dust filters that return clean breathable air back into the workspace.
The Intake Forces the Larger Particles into the Collection Bin
Specifications:
| Unit | DF4 | DF6 | DF9 |
|---|---|---|---|
| Useful Static Pressure | 5.1 inches H2O | 3.93 inches H2O | 5.11 inches H2O |
| Weight | Weight | 1034 lbs | 1364 lbs |
| Working Tank Header Pressure | 116 psi | 116 psi | 116 psi |
| Voltage | 230 or 460/3/60 | 230 or 460/3/60 | 230 or 460/3/60 |
| HP | 3HP | 5.36HP | 10HP |
| Sound Level [*Silencer Plenum] | 78 db / 71 db* | 81 db / 75 db* | 87 db / 79 db* |
| Filtering Surface (f²) | 398 | 775 | 1162 |
| Bin Capacity (G) | 22 | 24 | 29 |
The AIRCOMPACT

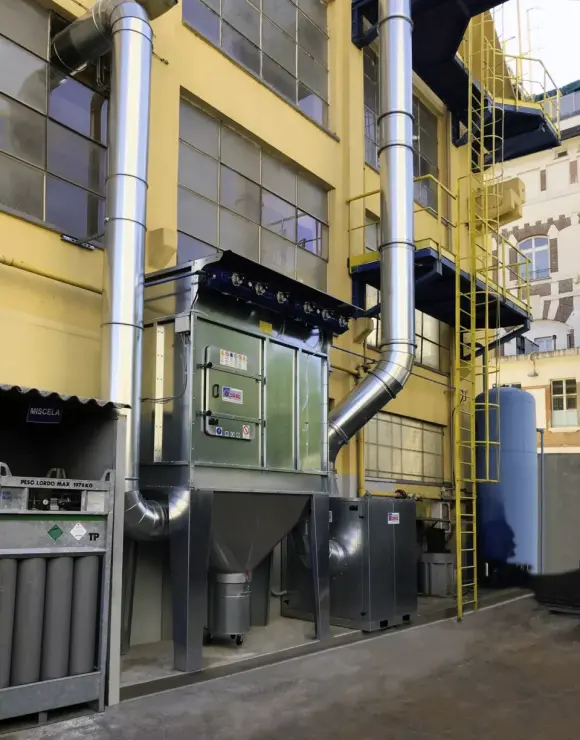

Aircompact Cartridge Dust Collector
The CORAL AIRCOMPACT is made from galvanized sheet panels and features a compressed air cleaning system. It is designed to filter and separate medium to fine dust with high efficiency, while offering a continuous reverse jet cleaning system.
The dust collector uses a wide range of filter cartridges specifically designed to provide peak performance for your application.
Applications:
- Welding, Grinding, Deburring, Polishing, Sanding, Thermal Cutting, Dry Dust, Hazardous Dust. Sandblasting. Powder Coating
Features:
- Separates the largest pollutant particles from the finest
- Fully automatic cleaning system with high-frequency compressed air
- Sturdy structure made of galvanized sheet panels
- High efficiency and versatility

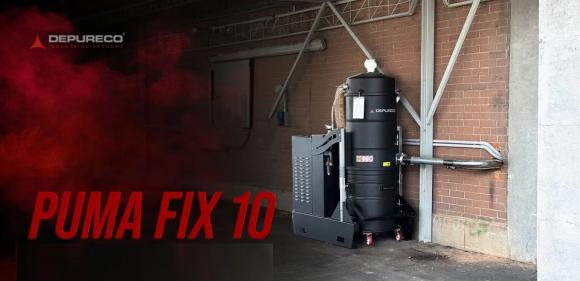

PUMA FIX 10
Source-Capture Central Vacuum for Welding Fume

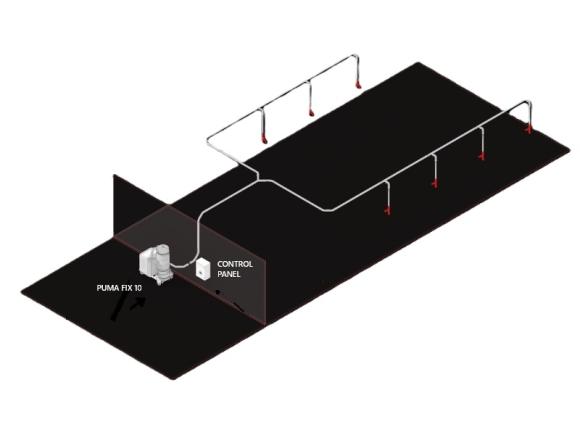

Let us design your layout
Welding Central Vacuum
