Dust Ignition Protected Dust Collection to safely capture combustible dusts. Fully grounded and static dissipating.

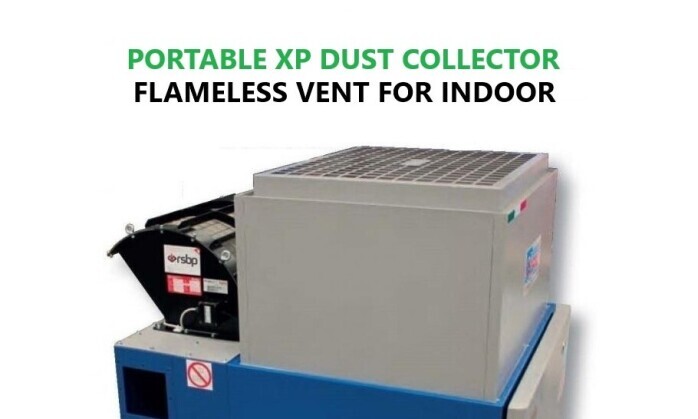

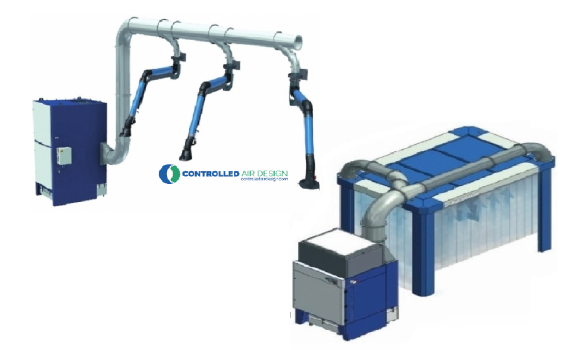

Mini Central XP Dust Collector with Flameless Vent. Ideal in production areas where footprint is at a premium, and where struggling with bulky portables might not be an option. The IPERJET can sit off to the side, and we can supply ATEX wall-mount arms and an easy-to-assemble ducting system. If you send us a rudimentary drawing of your shop, we can put together a turn-key quote.

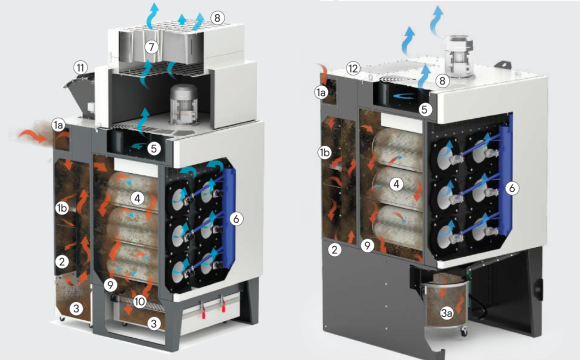

The Iperjet DF unit consist of a pre-chamber where the coarse and fine dusts are deposited into a pair of bins. The pre-chamber is a walled labyrinth design that acts as a filter. By the time the stream of air hits the primary cartridge filter, the particulate has already been deposited in one of the two bins. The high-efficiency fan guarantees high suction and low-noise. Cartridges are automatically cleaned with the compressed air cleaning system.

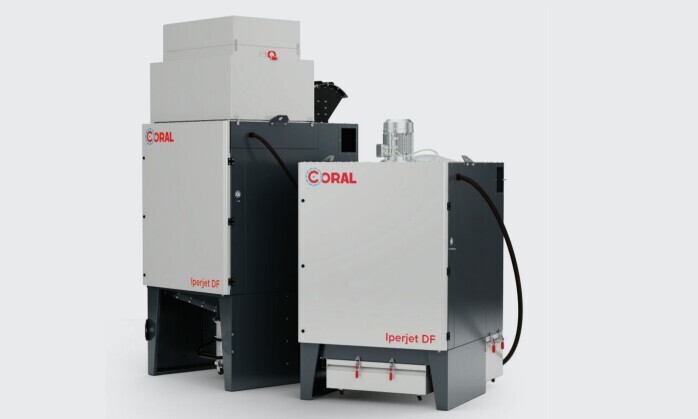

There are two types of collection bin systems. There is also an indoor version with a flameless vent and an outdoor version with an external explosion panel.
| IPERJET DF Outdoor | IPERJET DF Indoor | |
|---|---|---|
| Cartridges | 4, 6, 9 | 4, 6, 9 |
| Power HP | 4.2 - 5.3 - 9.4 | 4.2 - 5.3 - 9.4 |
According to the National Fire Protection Association (NFPA), explosion vents are a key part of safety for dust collectors and other pressurized machinery. NFPA 68, the Standard on Explosion Protection by Deflagration Venting, provides guidelines for using explosion vents, also known as rupture discs, to prevent catastrophic dust explosions.
This standard applies to the design, location, installation, maintenance, and use of devices and systems that vent the combustion gases and pressures resulting from deflagration within an enclosure to minimize structural and mechanical damage.
With HEPA Filtration, the IPERJET doubles as a powerful air cleaner, delivering clean, breathable air back into the workspace. It is a safe solution for source capture of ST1 dusts in HAZLOC, where smaller XP units aren't big enough for the task. Approval by your HSE or AHJ is necessary for its use in HAZLOC. The Iperjet range can be 4-, 6- or 9-horizontal cartridges for suction and filtration of flammable or explosive vapors and dusts. Reliable and robust due to its panel construction. The Iperjet range is a step up regarding industrial rugged design, safety, and maintaining proper air-to-cloth ratios.
•Horizontal cartridges with automatic
compressed air jet cleaning system
•Air inlet chamber with spark arrestor
•Reinforced dust collection double drawer
•Remote mount electric control panel
with 50 ft SO cable
•Flameless explosion vent system
•ATEX electric motor with spark proof
inlet system
•Chamber Silencer box with HEPA filter
OPTIONAL:
•Activated Carbon filter
•Painted air inlet connection
Coral No-Smoke ATEX Fume Extraction Arms are designed to convey locally produced pollutants towards specific filtering and deodorizing systems in potentially explosive atmospheres. Click HERE to see full specifications for ATEX Arms.
The use of conductive materials guarantee a proper ground connection. No-Smoke ATEX Arm suitable to be applied in zone 21, 1 and with dust classified St3. Our No-Smoke ATEX Arms are also USDA Food Grade.
