PDB Fume Booth Custom Series

PDB Booth8

The PDB unit can filter heavy odors and sticky overspray paint fumes while returning clean HEPA filtered air into the workspace.

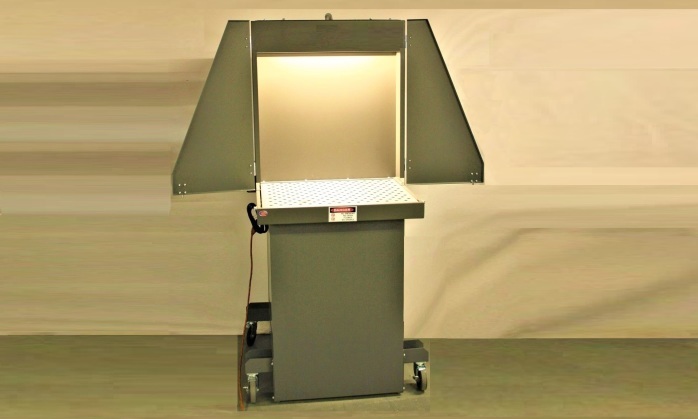

PDB-1500 Downdraft Booth

PDB

The PDB-1500 Downdraft Booth is a 30 inch wide, and a large 48 inch wide range of downdraft booths, designed to capture and filter overspray paint can fumes and solvents while returning clean air into the workspace. It is equally as useful in 100’s of other industrial applications where multiple filtration stages are needed within a compact unit. With this collector, you can eliminate 90% of odors and Volatile Organic Compounds (VOCs) that are generated in all kinds of applications where sticky, smelly fumes and vapors are being generated.

  • Filters mist, dust, smoke, fume and odor vapor
  • Nominal 750 to 1200 cfm depending on motor HP
  • Four stages of filtration
  • Minihelic gauge for quick reference of filter loading for ease of maintenance

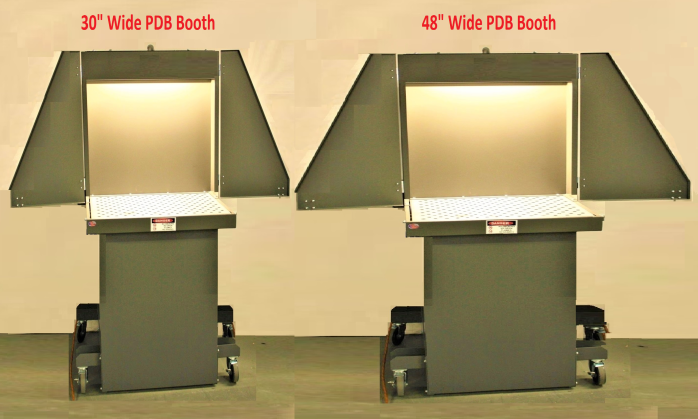

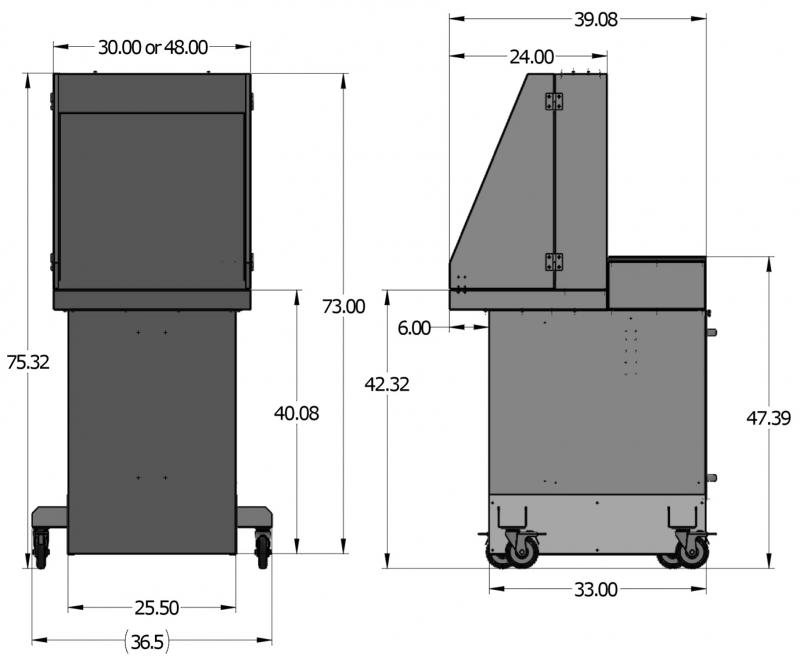

  • 30 or 48 inch wide downdraft table with hinged side shields
  • Optional collar or extraction arm inlets
  • Standard 1ph/115v with On/Off switch
  • Optional Single Phase Cl 1 Grp D/ Cl 2 Grp F&G 1.5 HP Explosion Proof Motor
  • Optional NEMA 7/9 Starter
  • Can be set up as a Mist Collector

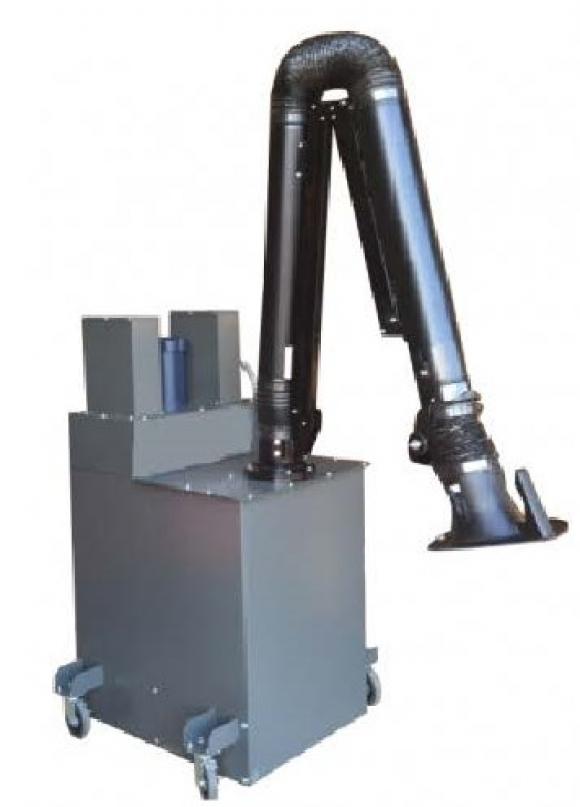

Single Arm PDB-1500 VOC Collector

SingleArmPDB

The Single Arm PDB-1500 collector is designed to capture and filter sticky fumes and solvents from applications like soldering or plastic extrusion-venting, while returning clean air into the workspace. It is equally as useful in 100’s of other industrial applications where multiple filtration stages are needed within a compact unit. With this collector, you can eliminate 90% of odors and Volatile Organic Compounds (VOCs) that are generated in all kinds of applications where sticky, smelly fumes and vapors are being generated.

VOC fumes and odors present a serious workplace hazard that needs to be captured and filtered at its point of source. The PDB-1500 is designed to extract VOC fumes and odors and prevent them from entering an operator’s breathing zone.

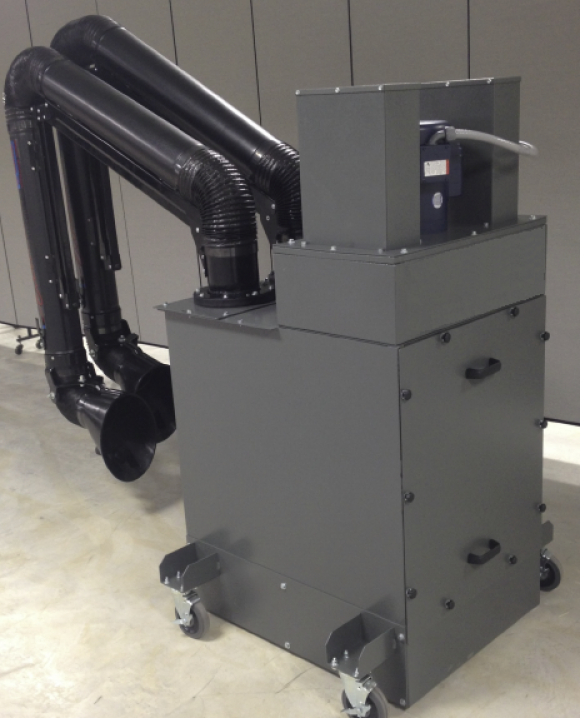

Dual Arm PDB-1500 VOC Collector

PDB-1500
Dual Arm PDB-1500

Controlled Air Design was approached by an army base to mitigate harmful fumes and VOCs being generated by 40 soldering stations. We created a system where “Source-Capture” filtration allowed Army technicians to solder around the clock without stopping to clean filters. We suggested our PDB-1500 dual arm Collector with a custom filtration solution to absorb the sticky fumes into a hood placed 6”–8” away from the soldering iron. The fumes passed through 2 stages of pre-filtration and into a 24”x24”x12”, 95% Glass-Filled ASHRAE Filter (for sticky fumes), and then into 56 lbs.of Activated Carbon (for odors), and finally a HEPA Final-Filter (for particulate). The Custom Fume Booth’s exhaust produced breathable clean air.

Click here to see the case study

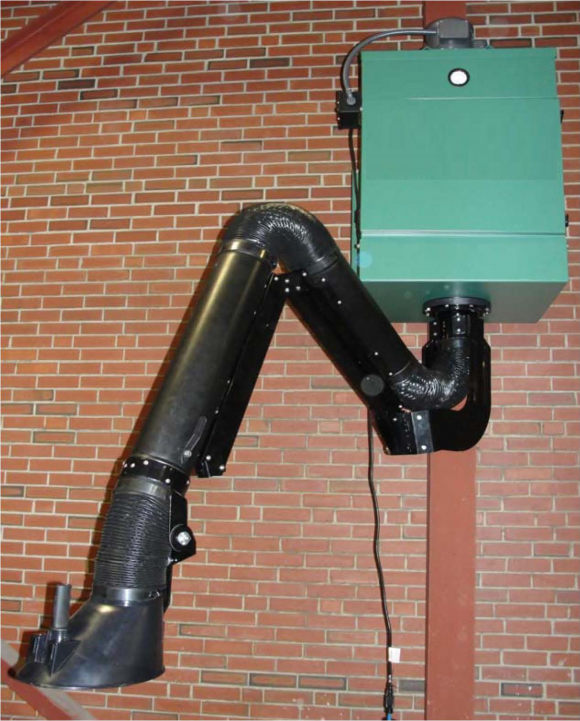

Wall Mount

WFC
Wall Mount with 6in x 7 ft Arm

The Wall-Mount version shown here can filter sticky fumes and odors, or it can take a .3 micron @ 99.97% eff HEPA for toxic dusts.

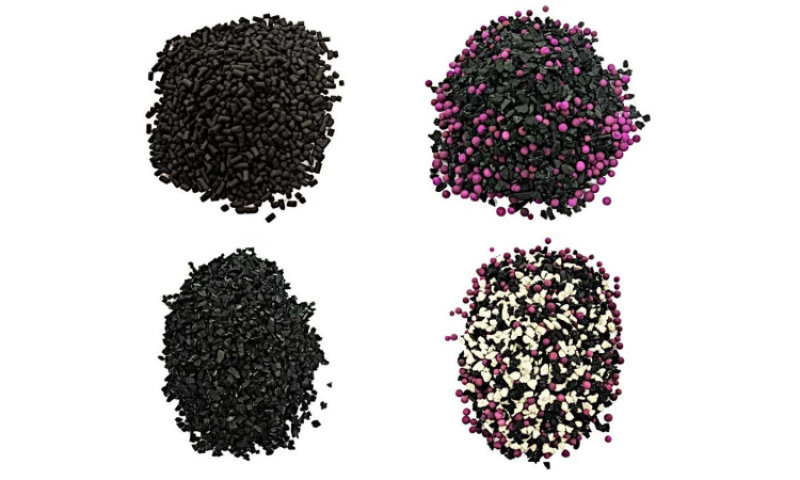

The Custom PDB-1500 high porosity activated carbon granules are specially designed to absorb most industrial VOC fumes. Depending on the VOC being generated, we can offer customers several different types of carbon pellets as well as other absorption medias, like potassium permanganate and coconut shell. Send us the MSDS sheet and we will select a type of carbon that is specific to it. Standard carbon works well for a lot of applications, but other types of carbon may work even better when matched up correctly with the fume being generated.

Click here for information on replacement filters:

Custom blends of activated carbon and potassium permanganate pellets can cut plastic fume odor by 90%

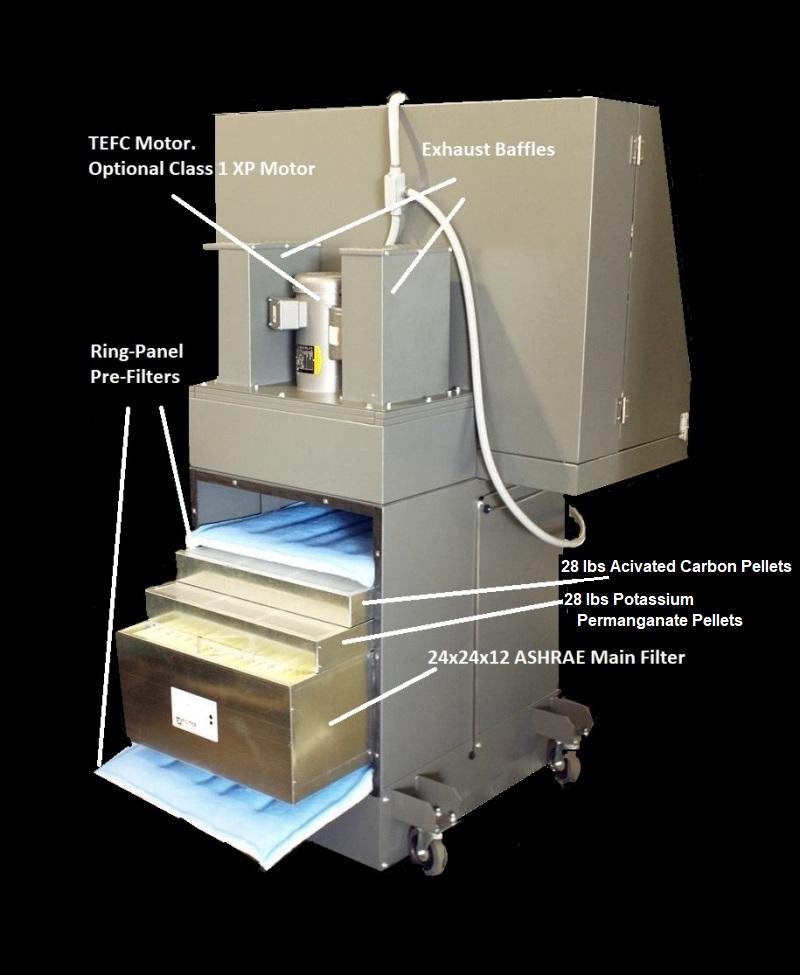

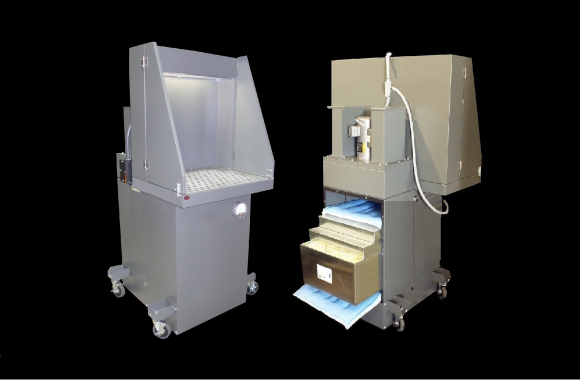

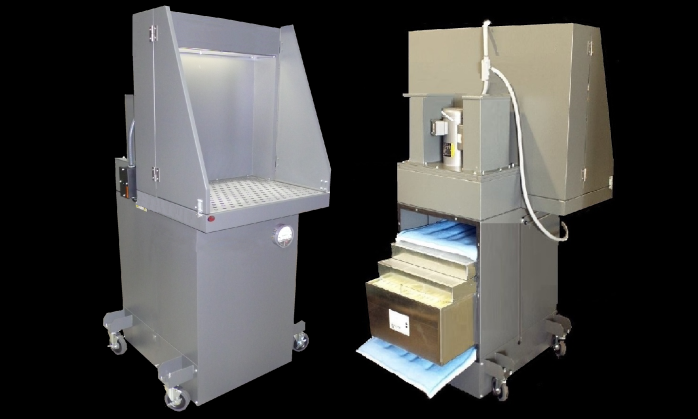

A 1.5HP TEFC is standard on all units. There is also an option for a Class 1 Grp D/Cl 2 Grp F&G 1.5 HP Explosion-Proof Motor. Standard filters for paint fumes consist of a ring polyester pad to handle the sticky paint fumes, a MERV 14 fiberglass filter to remove fine particulate, and two (or more) 28 lb. refillable activated carbon trays for odor.

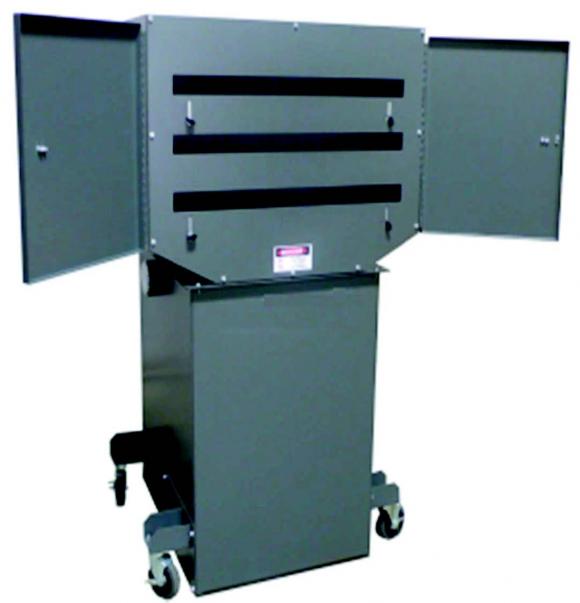

Backdraft

 Backdraft
Backdraft for Sticky Fume and VOC

The PDB Backdraft is the Backdraft version of the our VOC and sticky fume collector line. The Backdraft Hood allows free range of motion around the shop that is especially useful for spraying, sanding and grinding materials that give off heavy odor.

HEPA filtration can be added at the factory or in the field. The Portable Fume Booth can also be used as a mist spray-off booth by changing the filters and adding a drain.

The Custom PDB-1500 is very versatile and is highly customizable and efficient. The poly-pad pre filters are only $17.00-ea and frequent changing of them can greatly prolong the life-span of the more expensive filter stages that come after it.

The Custom Fume Booth units are built in the USA.

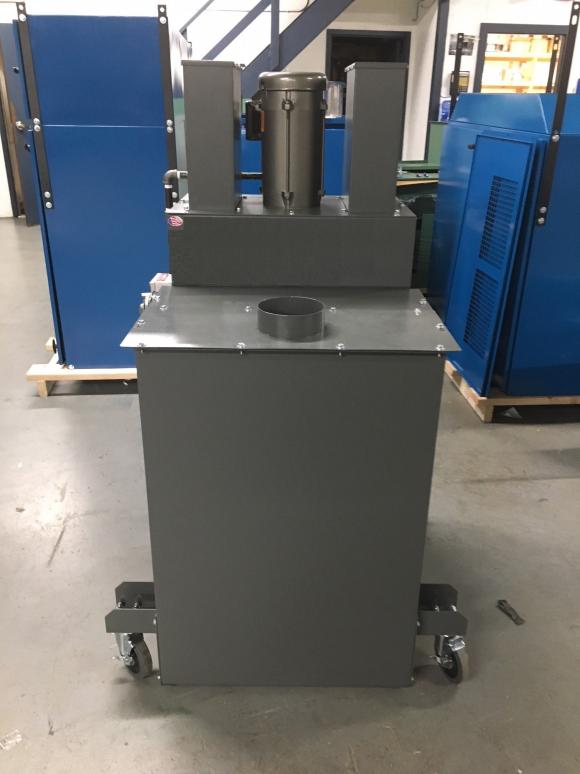

With Explosion-Proof Motor

With XP Motor
With Ducting Collar and XP motor.

For most Non-HAZLOC applications the standard TEFC Motor is safe as it is a sealed motor in the clean-air stream. For applications where there might be a presence of ambient airborne flammable vapors, we like to recommend these options. Our sales team are on call at (800) 635 0298 or sales@controlledairdesign any time to help you find a safe and productive solution.

  • Class 1 and Class 2 Grp F&G 1.5 HP Explosion‐Proof Motor available
  • NEMA 7/9 Starter available
  • Optional retractable grounding reel

Made in the USA!

An order of Custom Fume Booths for a repeat customer
An order of Custom PDB-1500 units being prepared for a repeat customer
