Compact Downdraft Booth for VOC | Explosion-Proof

PDB2

The PDB comes as a Downdraft or Backdraft Collector. It is designed for odor elimination from spray paint and mold release overspray.

Filtration for plastic and paint odor fumes XP

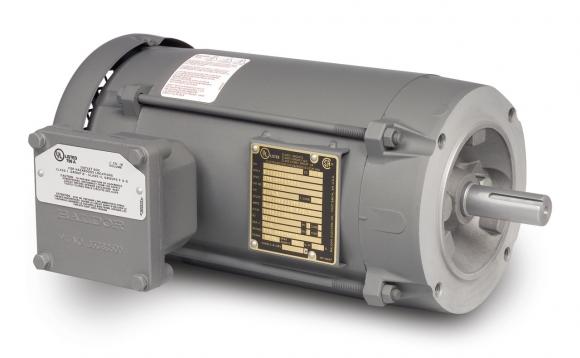

Baldor VL5030 Explosion-Proof Motor Class - CLI GP D; CLII GP F,G

VL5030
Baldor Reliance VL5030

VL5030 Baldor Explosion Proof General Purpose Motors, Specification Number 35E373-0199G1, UPC 781568451663

  • 1.5HP, 3450RPM, 1PH, 60HZ, 56C, 3528L, XPFC, F1
  • Class - CLI GP D; CLII GP F,G
  • Division - Division I

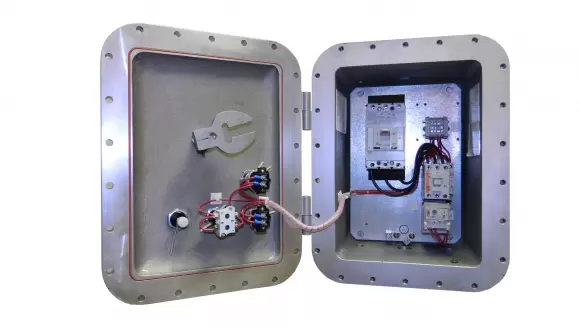

Sprecher+Schuh NEMA Type 4/4X/7/9 Explosion Proof Starters

NEMA Type 4/4X/7/9 Explosion Proof Starters
NEMA Type 4/4X/7/9 Explosion Proof Starters

Explosion-proof combination starters can include either a UL489 approved Thermal Magnetic Circuit Breaker or a non-fusible disconnect.

The MCCB utilizes the instantaneous trip feature of the magnetic breaker for short circuit currents, combined with the overload tolerance of thermal circuit breakers for normal starting demands. An MCCB can also be quickly reset once the fault has been cleared.

A molded case switch (MCS) is used in applications requiring only a non-fused disconnect.

Odors are Scrubbed by Activated Carbon

 We pinpoint the optimal filtration needed for your unique application. This tailored approach ensures not only maximum dwell time in the carbon, but also efficient and trouble-free operation.

VOC Capture

VOC

Sometimes a Backdraft will work better. Each application is different.

We take everything into consideration and we come up with a solution that incorporates high capture velocities of over 300 FPM with the right filtration, and safety components.

By doing this, the end user has the most functionality with the highest degree of clean air and efficiency.

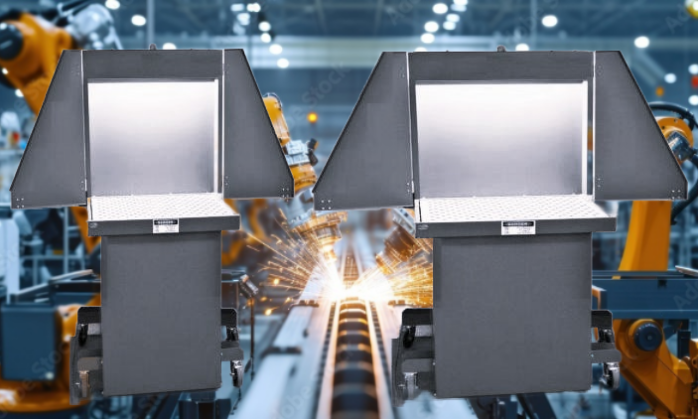

These Booths come in two sizes: 30" W x 24" D and 48" W x 24" D

Designed to capture and filter overspray paint while returning clean air into the work space. The PDB can eliminate 90% of odors and Volatile Organic Compounds (VOCs). The custom blend of filtration makes it extremely useful and adaptable for all kinds of applications.

Plus (click or tap to expand) + Specifications:

  • Filters mist, dust, smoke, fume and odor vapor
  • Nominal 750 to 1200 cfm depending on motor HP
  • Four stages of filtration
  • Minihelic gauge for quick reference of filter loading for ease of maintenance

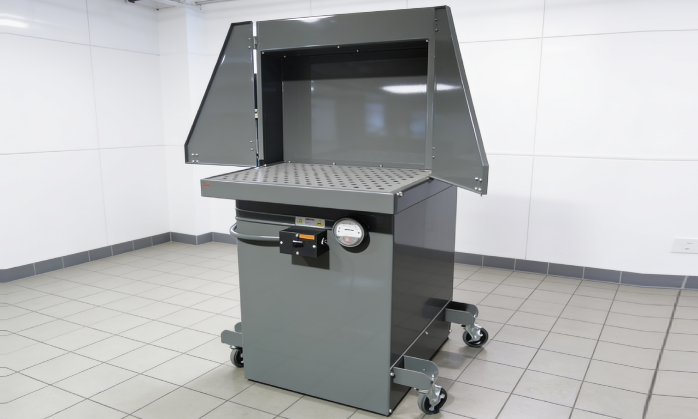

  • 30 or 48 inch wide downdraft table with hinged side shields
  • Optional collar or extraction arm inlets
  • Standard 1ph/115v with On/Off switch

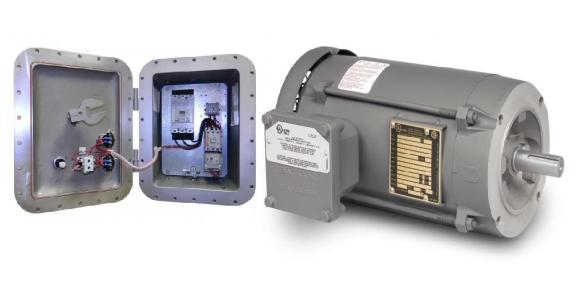

  • Optional Single Phase Cl 1 Grp D/ Cl 2 Grp F&G 1.5 HP Explosion Proof Motor
  • Optional NEMA 7/9 Starter
  • Can be set up as a Mist Collector

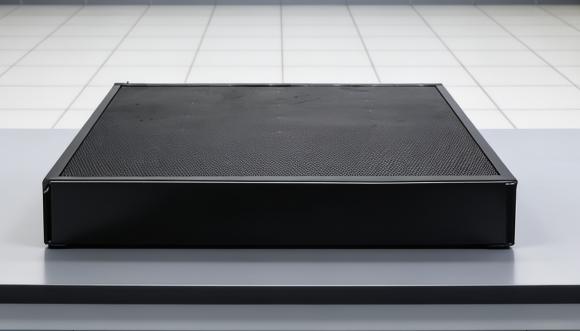

Carbon Pellets and Potassium Permanganate Pellets

A custom blend of activated carbon pellets and potassium permanganate pellets is used to eliminate odors. The PDB is designed to extract VOC fumes and odors directly from the source and prevent them from entering an operator’s breathing zone.   Having the right amount of “dwell-time” of the VOC within the carbon is essential to the success of the unit.  Our sales engineers will analyze your solvents SDS and we will recommend either carbon, pellets, potassium permanganate, coconut shell, or a custom blend. Then we select the correct blower size designed to achieve optimum dwell-time.

Click here to see a case study.

Keep Odors From Migrating to Office Areas

Source capture stops odors from migrating to office areas. Once the fumes are created they are stopped at the source before they can travel anywhere.

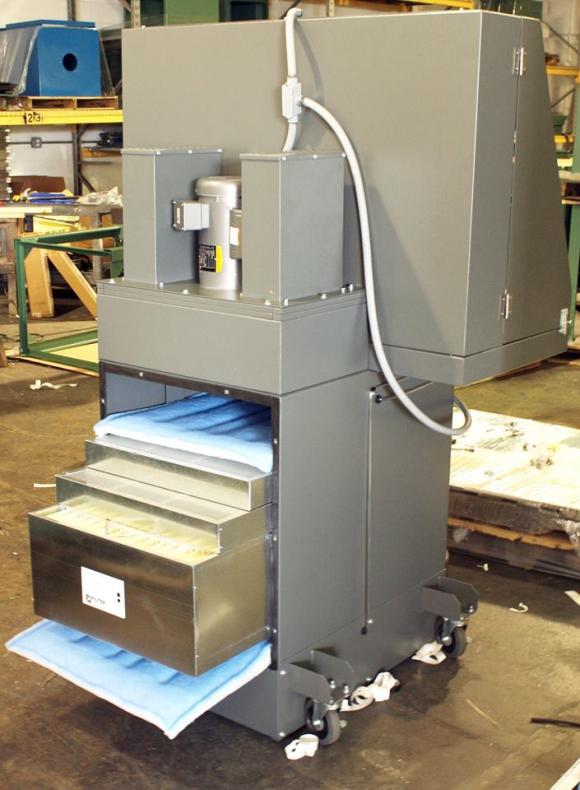

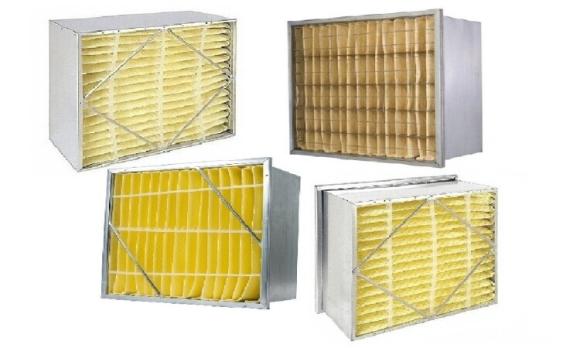

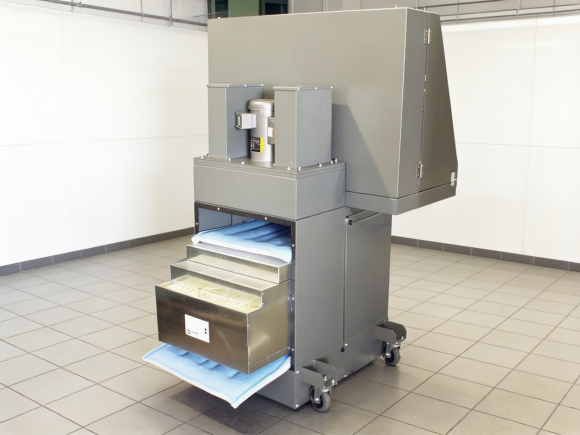

Normal cartridge filters plug up from paint spray in a matter of seconds. The PDB-VOC has a custom blend of fiberglass Rigid Cell, Poly Pad, and 4mm carbon or potassium permanganate cells. Each cell holds 28 lbs. and the PDB can hold 3 of them. This blend of filtration will do a much better job on heavy odor and sticky fumes and odors than particulate filters will.

SingleArmPDB
Designed to meet OSHA regulations for flammable paint overspray and VOC.
