Downdraft Tables for Metal Grinding

APB

Downdraft Tables for Metal Dust and NFPA484. Our HEPA Downdraft Tables draw contaminants away from your workers' vision and breathing zones.

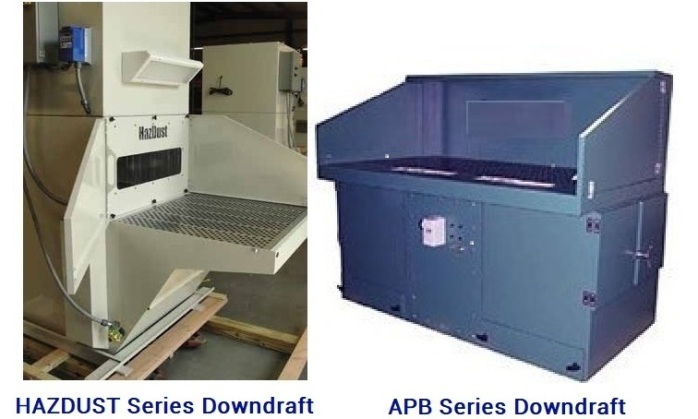

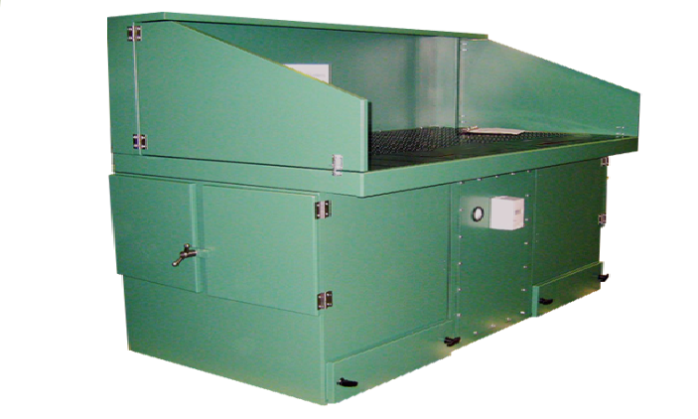

APB Series Downdraft Tables

All APB Downdraft Benches are designed to “source-capture” dust, smoke, fume, and gas/vapor contaminants. Compliant with OSHA and OSHA regulations, each APB Downdraft Bench can be custom designed to fit each user’s unique application needs. Typically used for moderate to heavy concentrations of dry dusts and contaminants, the APB Series can be used for grinding, polishing and dry-buffing applications.

Click here to see a case study

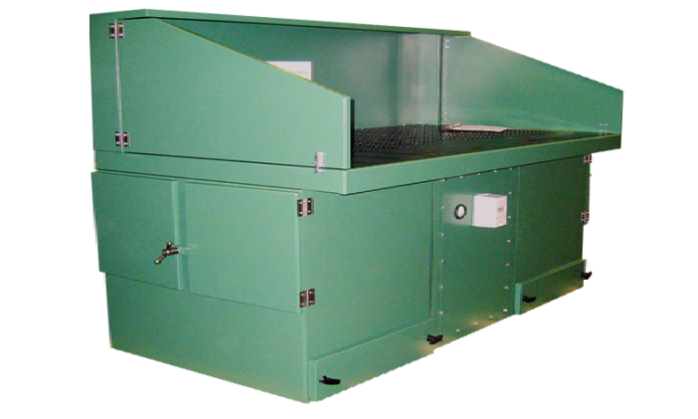

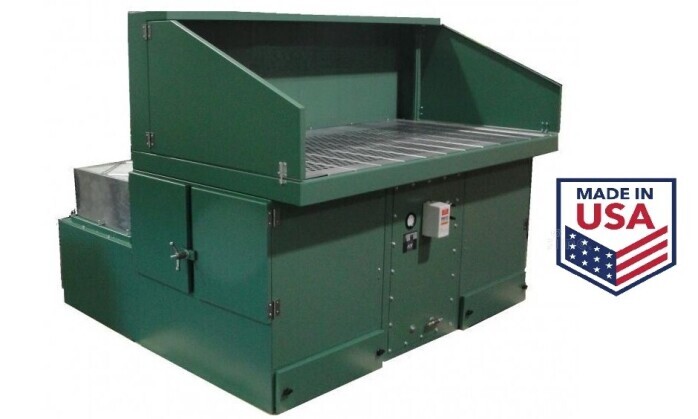

APB
APB Cartridge Filters are 99.97% efficient @ .5 microns

The APB Benches also come with a manual pulse-jet cleaning system with options for auto-pulse and timed-pulse filter cleaning systems. Filter options include washable poly-spunbond cartridges, Nano FR, and 80/20 cellulose.

The APB Downdraft Benches come with steel grates as a standard feature. Non-marking top mats made from rubber or polypropylene are also available upon request. The APB line of heavy-duty Downdraft Benches are used for all kinds of heavy industrial grinding and sanding applications.

Built 100% in the USA. Parts and filters are always just a phone call away. A link to a complete digital owners manual is at the foot of the page.

The Rear HEPA Bank captures sub-micron lead and cadmium particles returning clean air into the workspace.

6BawtpMg

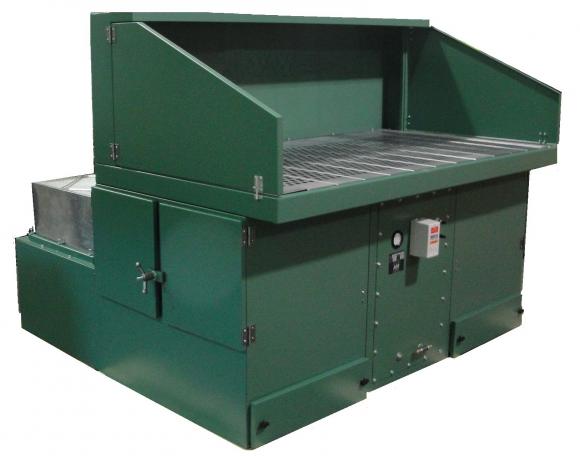

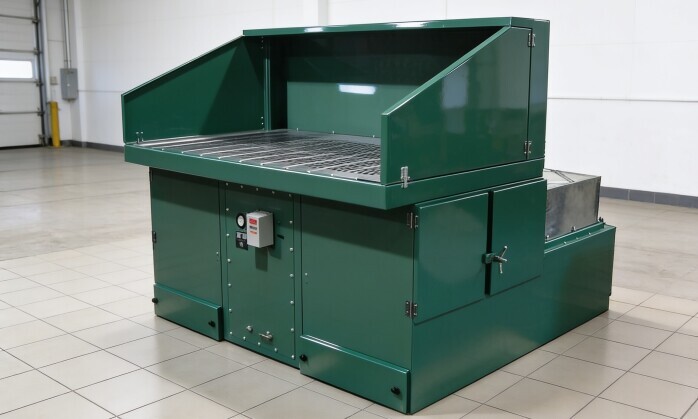

APB 4276 with rear HEPA Bank

Features and Specifications

  • Three table top sizes are available: 42”x 50”, 42” x 76”, and 48” x 102”
  • Table top velocities are approximately 250 fpm
  • Typical top load is 75 lbs per square ft.
  • A variety of custom options are available depending on your unique application
  • Compliant with OSHA and NFPA
  • Option for .3 Micron @ 99.97% efficiency HEPA Filtration
  • Optional 12” shelf that extends the front table-top (depth)

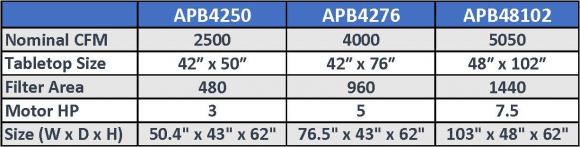

Specs

APB HEPA Filtered Tables are designed to capture these harmful dusts:

  • Beryllium
  • Cadmium
  • Carbon Steel
  • Cobalt
  • Cold Rolled Steel
  • Copper
  • Lead
  • Manganese
  • Nickel
  • Stainless Steel

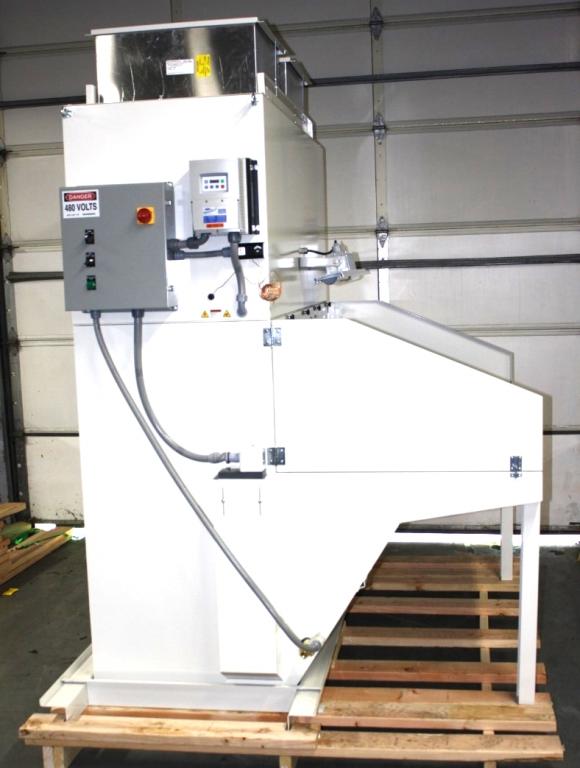

HAZDUST for XP Metal Dusts

HAZDUST1

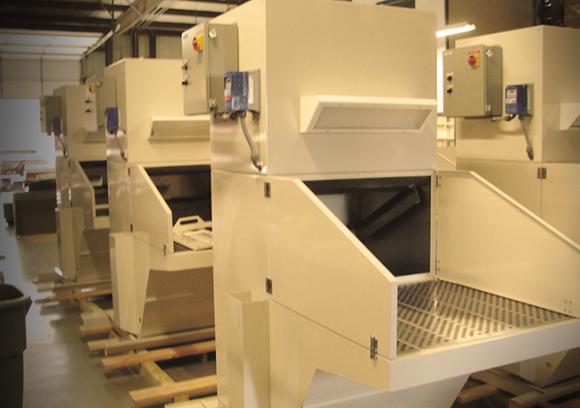

HAZDUST Downdraft for XP metal sanding and grinding dusts.

The HAZDUST Wet Downdraft Table is designed to capture explosive metal dust such as aluminum, titanium, magnesium, and commercial alloys.  The table meets the codes and requirements from NFPA484.  Each unit is rigorously tested before it leaves our shop.  The wet portion of the unit is constructed from 304 stainless steel for long lasting life.

The HAZDUST Downdraft tables are available in: 36" x 36", 36" x 48", and 36" x 72". These are table-top dimensions.

CLICK-HERE to see full specifications for the HAZDUST Wet Collectors.

HAZDUST4

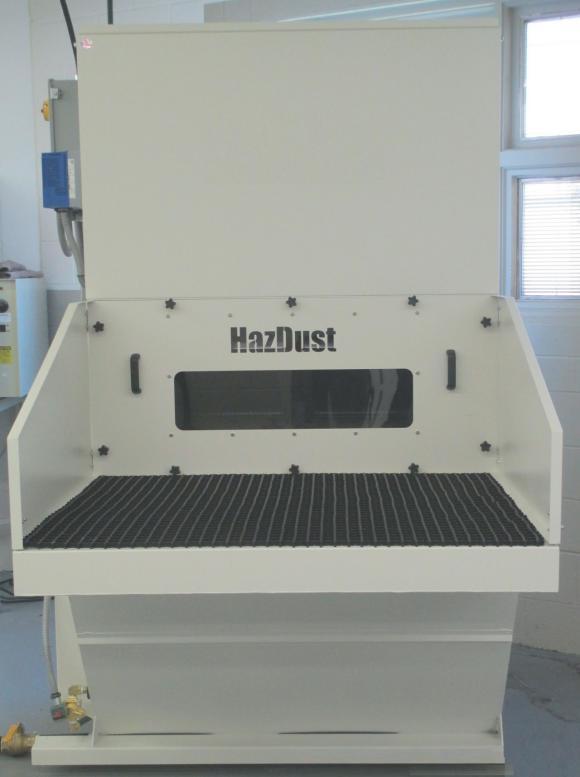

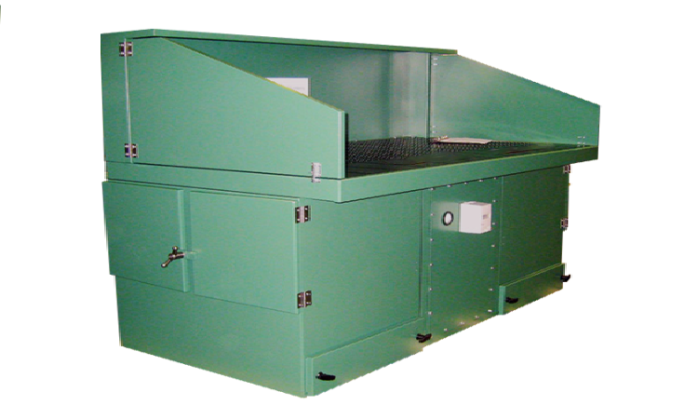

HAZDUST 36" x 36" Tabletop

Additional options

  • High Level shutdown control
  • Hinged Table Side Panels
  • Full Enclosure with Lights and crane slot
  • Fiberglass Grating for Table Top
  • Water Filtration Cleaning System

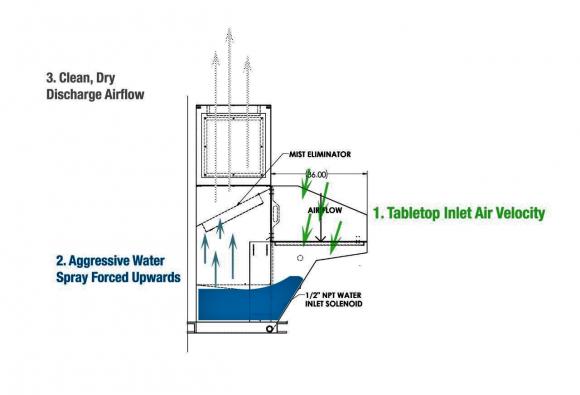

Diagram

Features and Specifications

  • Airflows range from 2000 to 4800 CFM depending on table top size and motor horsepower.
  • Direct drive non-sparking aluminum backward curved blower
  • Washable polypropylene mist eliminator
  • Aluminum grating table top work surface.
  • Automatic water level control with low level shutoff.
  • High level shutdown control
  • Automatic shutdown with loss of airflow.
  • Factory pre-wired control panel
  • 34 inch table top height
  • Hinged Side Panels
  • Table designed for handicap accessible

Full specifications for the HAZDUST are HERE

Denray Downdraft Tables

den1

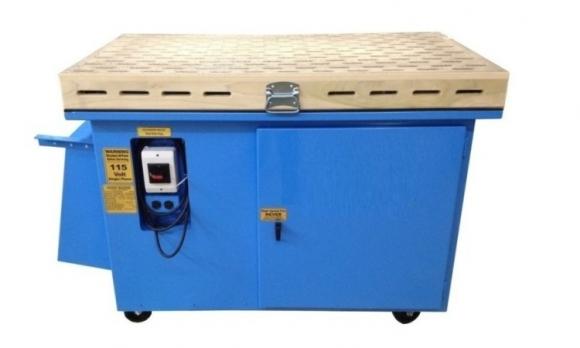

All access fine-finishing Downdraft Table

We have a wide variety of Downdraft Booths and Tables for grinding, sanding and fine finishing.

Tube Filtration

2872

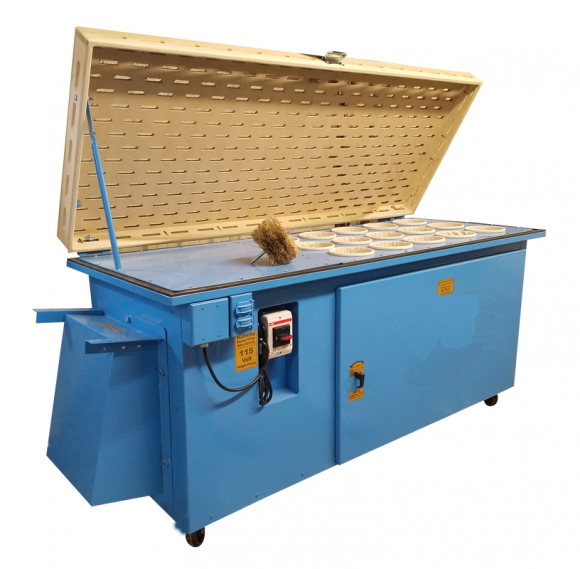

Model 2872

Tube filters are ideal for applications involving finishes and fine sanding dust. Life expectancy of the tube filters is between 1-2 years with average use. The dust is captured inside the tube and falls from the filters into the dust drawer below, when the machine is turned off.

A soft bristled brush (furnished with all tube filtration models) is used to run inside the filters, offering a deep cleaning procedure for the filters if needed. The tube filters clean at a 99% capture rate at 1 micron, creating a much superior filtration than any pleated filters.



Ideal for small shops and labs. With complete access to the work surface from all 4 sides and built in power supplies for 110V hand tools. Filters are usually good for up to two years and can be reordered by simply giving us a call. All models are available in 110V or 230/460 three-phase. Available up to 48"x96”. Made entirely in the USA.

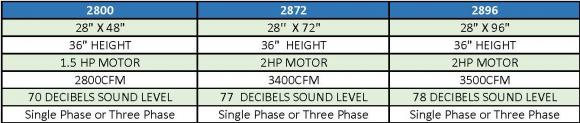

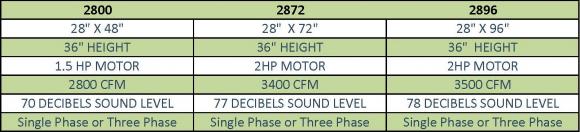

Specifications:

Specsdd

ADDITIONAL OPTIONS

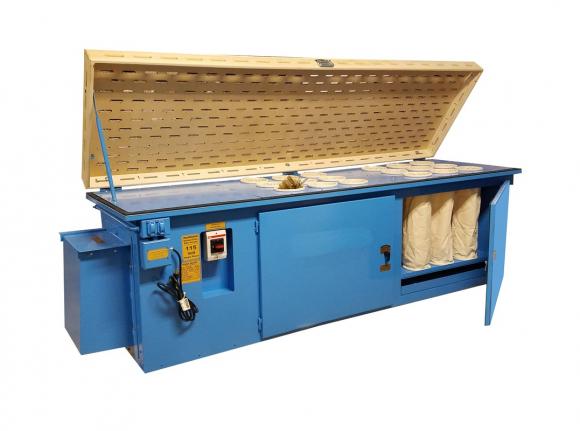

Model 2896
Model 2896
  • Explosion Proof Motor (3 Phase only)
  • Light Bar
  • Muffler (reduces sound level 10-12 dbs.)
  • Carbon Filter Bank (odor only)
  • HEPA Filter bank
  • Three-sided Hinged Safety Shield
  • Magnehelic Gauge
  • HDPE plastic tabletop
  • Hydraulic Height Adjustment
  • Larger Motor/Fan Upgrade
